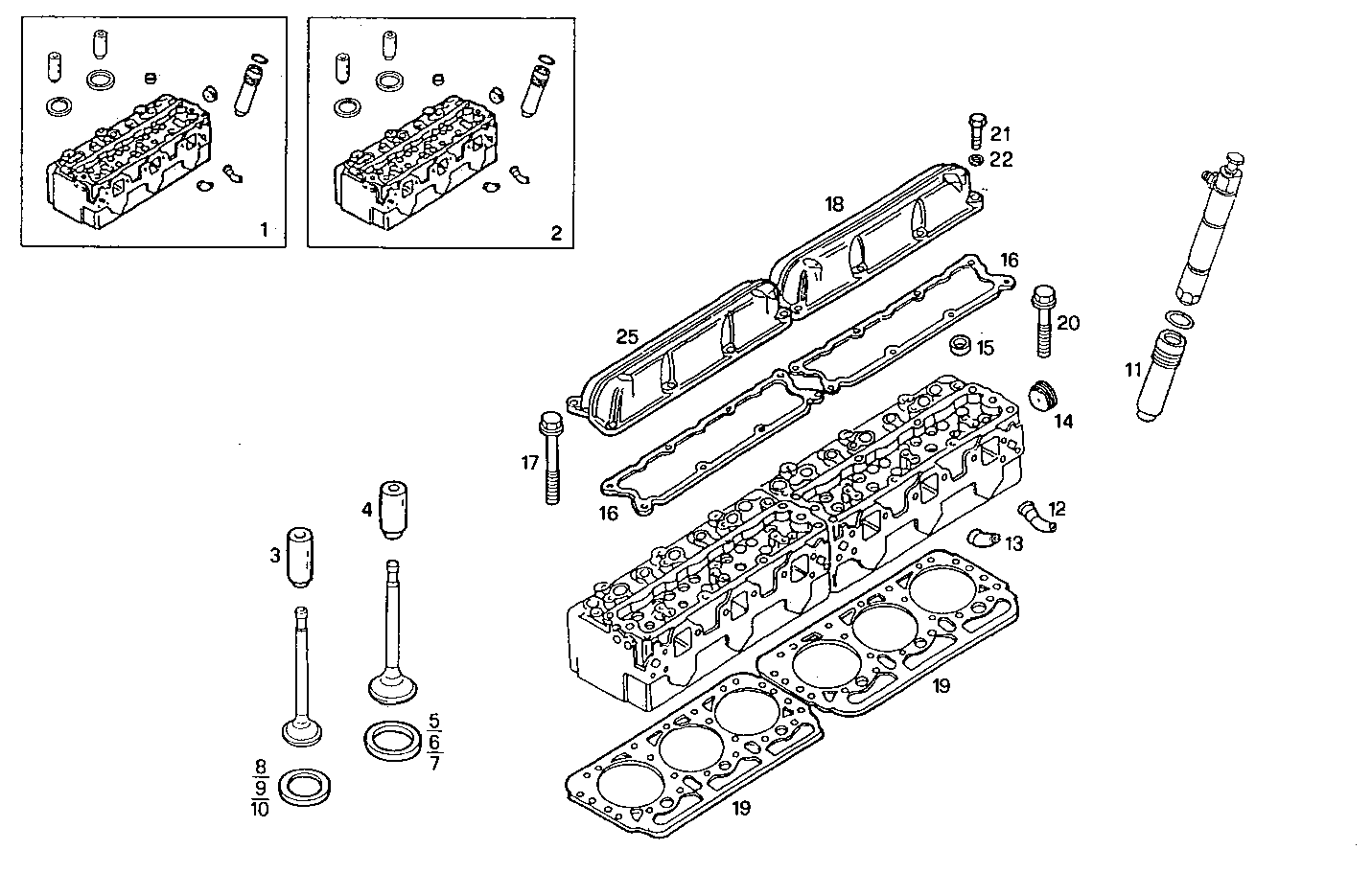

CYLINDER HEAD

Assembly ID: 0600.044-01

CYLINDER HEAD

Parts

# Part number Description Note Quantity
1 4837602 CYLINDER HEAD 1
2 4837603 CYLINDER HEAD 1
3 4648237 VALVE GUIDE 6
4 4630923 VALVE GUIDE 6
5 4849707 VALVE SEAT STD. 6
6 4849715 VALVE SEAT +0.20 6
7 4849716 VALVE SEAT +0.05 6
8 4673864 VALVE SEAT STD. 6
9 4673868 VALVE SEAT +0.20 6
10 4673869 VALVE SEAT +0.05 6
11 98413143 NOZZLE HOLDER SEAT 6
12 4638192 PIPE 6
13 4623879 PIPE 6
14 61584412 LOCK PLUG 2
15 14282670 LOCK PLUG 16
16 98480127 HEAD COVER GASKET 2
17 4769616 CYL.HEAD STUD 4
18 98474814 CYL. HEAD COVER 1
19 99484354 CYL.HEAD GASKET 2
20 4769615 SCREW 30
21 16606424 HEXAGON BOLT 16
22 17094914 WASHER 16
25 8111179 CYL. HEAD COVER 1

Applies to engines

Engine Family
GE8210SRi26.02A955 GE8210SRi26 view
GE8210SRi27.00A955 GE8210SRi27 view
GS8210SRi26.02 GS8210SRi26 view
GS8210SRi27.00 GS8210SRi27 view
GE8210SRi27.01A955 GE8210SRi27 view
GS8210SRi26.02A601 GS8210SRi26 view
GS8210SRi26.02A602 GS8210SRi26 view
GS8210SRi26.02A651 GS8210SRi26 view
GS8210SRi27.00A601 GS8210SRi27 view
8210SRi12.01 8210SRi12 view
8210SRi26.02 8210SRi26 view
8210SRi27.00 8210SRi27 view
8210SRi26.03 8210SRi26 view
8210SRi27.01 8210SRi27 view
8210SM26.12 8210SM26 view
8210SRM36.12 8210SRM36 view
8210SRM36.32 8210SRM36 view
8210SRM38.10 8210SRM38 view
8210SRi26.02A550 8210SRi26 view
8210SRi26.02A580 8210SRi26 view
8210SRi27.00A550 8210SRi27 view
8210SRi27.00A580 8210SRi27 view
8210SRi26.03A550 8210SRi26 view
8210SRi26.03A580 8210SRi26 view
8210SRi27.01A550 8210SRi27 view
8210SRi27.01A580 8210SRi27 view
8210SRi26.03A602 8210SRi26 view
8210SRi27.01A603 8210SRi27 view
GE8210SRi26.03R970 GE8210SRi26 view
GE8210SRi27.01N970 GE8210SRi27 view
GE8210SRi27.01R970 GE8210SRi27 view
GE8210SRi26.03A71M GE8210SRi26 view
