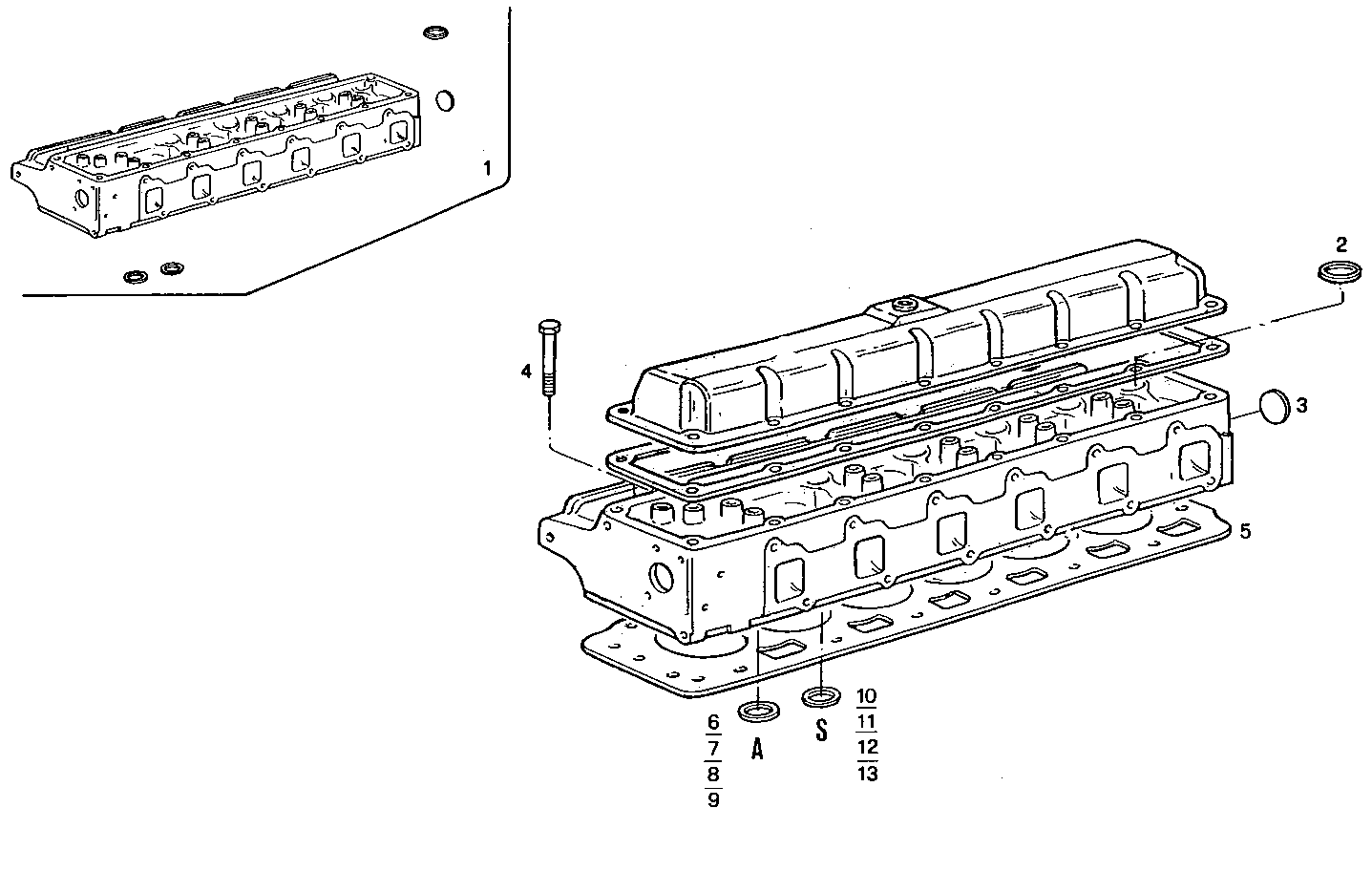

CYLINDER HEAD

Assembly ID: 0600.094-01

CYLINDER HEAD

Parts

# Part number Description Note Quantity
1 8093135 CYLINDER HEAD 1
2 83957021 PLUG 7
3 83957025 PLUG 1
4 83948300 SCREW 13
5 87801752 CYL.HEAD GASKET 1
6 81865194 VALVE SEAT STD. 4
7 81865195 VALVE SEAT +0.25 4
8 81865196 VALVE SEAT +0.51 4
9 81865197 VALVE SEAT +0.76 4
10 81876788 VALVE SEAT +0.76 4
11 81876756 VALVE SEAT STD. 4
12 81876763 VALVE SEAT +0.25 4
13 81876768 VALVE SEAT +0.51 4

Applies to engines

Engine Family
GE7675G86.05A70E GE7675G86 view
GE7675G86.05A71E GE7675G86 view
7675G75.05C001 7675G75 view
7675G76.05C001 7675G76 view
7675G86.05C001 7675G86 view
7675G75.05A600 7675G75 view
7675G76.05A600 7675G76 view
7675G86.05A502 7675G86 view
