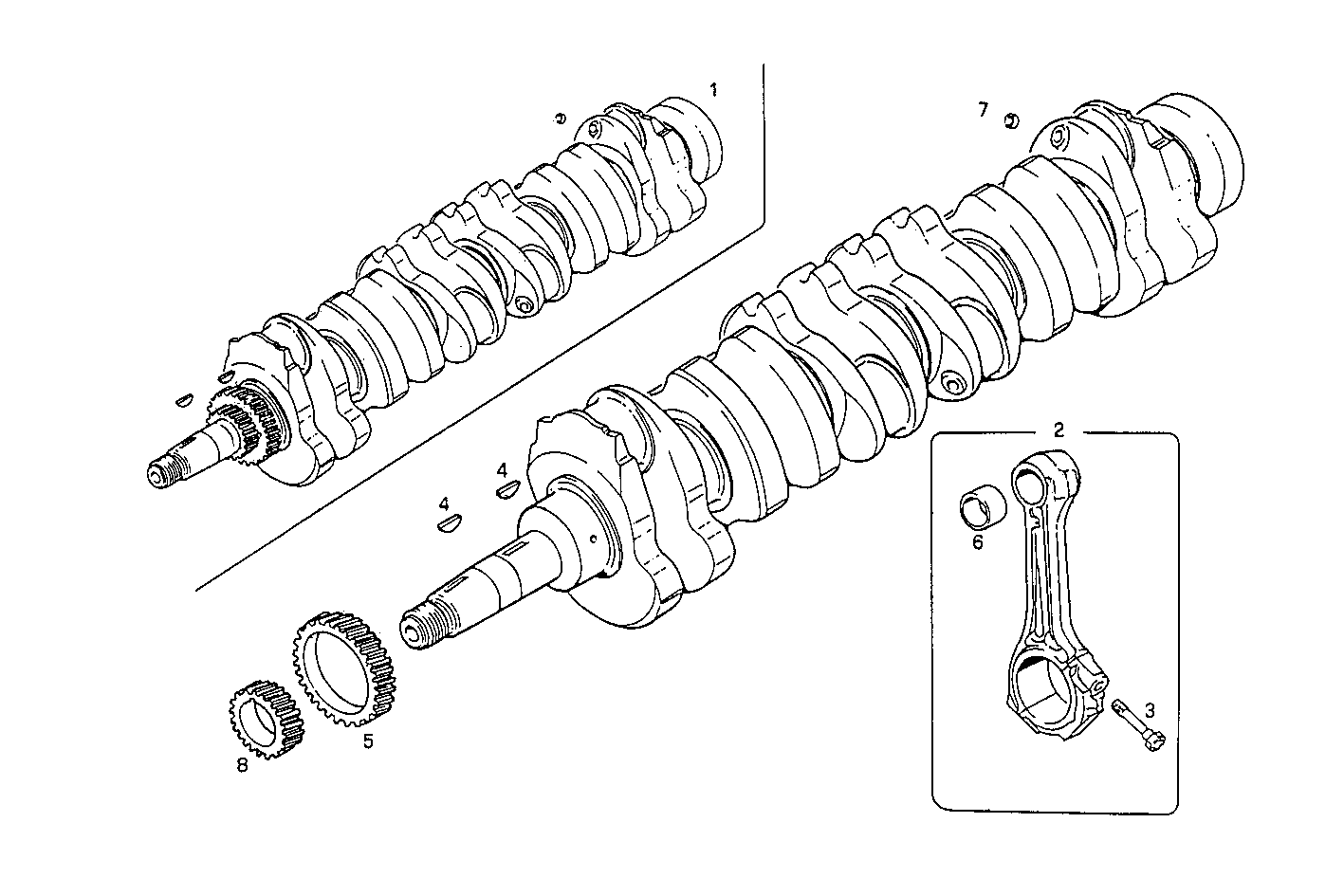

CRANK SHAFT - CONNECTING RODS
Assembly ID: 0800.057
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8020556 | CRANK SHAFT | 1 | ||
| 2 | 99472584 | CONN.ROD ASSY. | 6 | ||
| 3 | 4780627 | BIG-END BOLT | 12 | ||
| 4 | 4655844 | KEY | 2 | ||
| 5 | 4770255 | OIL PUMP DRIV.GEA | 1 | ||
| 6 | 98459977 | BIG-END BUSH | 6 | ||
| 7 | 16987501 | LOCK PLUG | 6 | ||
| 8 | 8020312 | GEAR | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8061SRM25.13 | 8061SRM25 | view |
| 8061SRM25.33 | 8061SRM25 | view |
| 8061SRM33.12 | 8061SRM33 | view |
| 8061SRM33.42 | 8061SRM33 | view |
| 8060SRM25.11 | 8060SRM25 | view |
| 8060SRM33.10 | 8060SRM33 | view |
| 8060SRM33.10A001 | 8060SRM33 | view |
| 8060SRM33.10A002 | 8060SRM33 | view |
