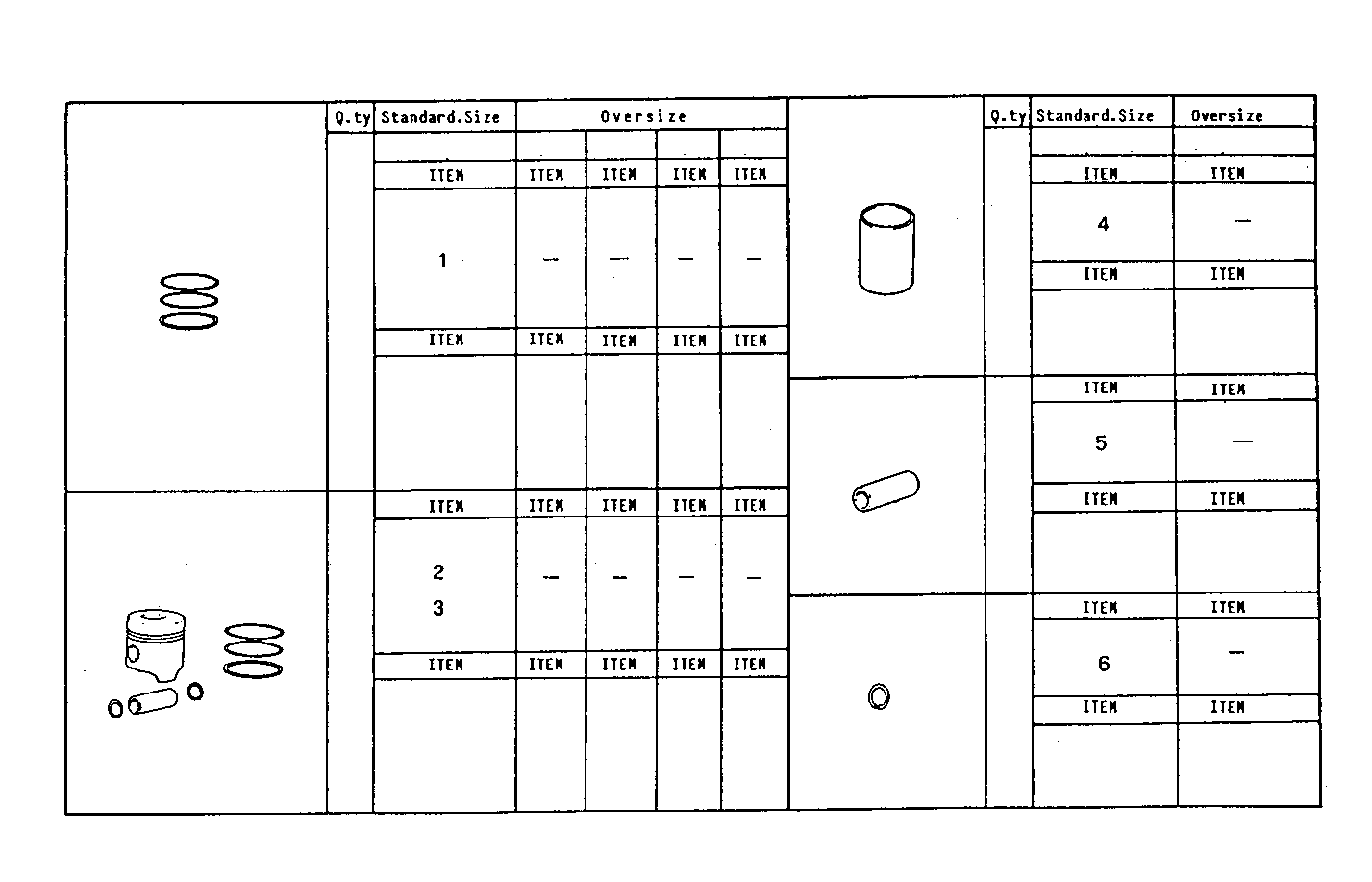

PISTON ASSY - PISTON RINGS - PISTON PIN
Assembly ID: 0820.000
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 1902583 | PISTONRING SET STD | 6 | ||
| 2 | 1902584 | PISTON ASSY TYPE A | 6 | ||
| 3 | 1902585 | PISTON ASSY TYPE B | 6 | ||
| 4 | 0820.000-004 | CYLINDER LINER | 6 | ||
| 5 | 4642996 | PISTON PIN | 6 | ||
| 6 | 11060476 | SPRING LOCKWASHER | 6 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8210SRi26.00 | 8210SRi26 | view |
| 8210SRM36.10 | 8210SRM36 | view |
| 8210SRM36.11 | 8210SRM36 | view |
| 8210SRi26.00A550 | 8210SRi26 | view |
| 8210SRi26.00A580 | 8210SRi26 | view |
