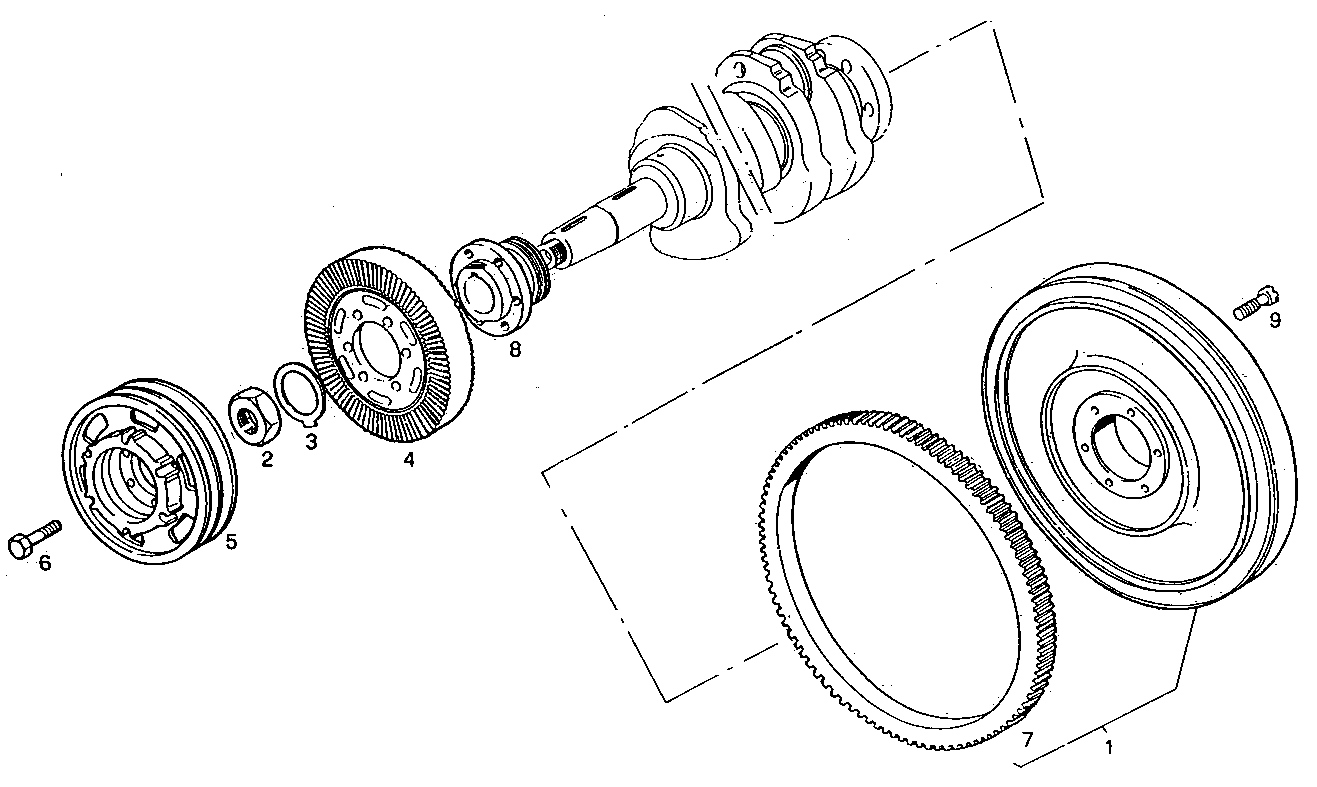

ENGINE FLYWHEEL - DAMPER
Assembly ID: 0830.148
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 98418122 | FLYWHEEL | 1 | ||
| 2 | 4607073 | NUT | 1 | ||
| 3 | 4607074 | CIRCLIP | 1 | ||
| 4 | 4609097 | VIBRATION DAMPER | 1 | ||
| 5 | 4807857 | PULLEY | 1 | ||
| 6 | 16326421 | SCREW | 6 | ||
| 7 | 4651279 | RING GEAR | 1 | ||
| 8 | 4607072 | HUB | 1 | ||
| 9 | 4765554 | SCREW | 8 |
Applies to engines
| Engine | Family | |
|---|---|---|
| GE8210SRi26.01A50L | GE8210SRi26 | view |
| GE8210SRi26.01A50S | GE8210SRi26 | view |
| GE8210SRi26.01A51L | GE8210SRi26 | view |
| GE8210SRi26.01A51S | GE8210SRi26 | view |
| GE8210SRi26.01A52S | GE8210SRi26 | view |
| GE8210SRi26.01A70L | GE8210SRi26 | view |
| GE8210SRi26.01A70S | GE8210SRi26 | view |
| GE8210SRi26.01A71L | GE8210SRi26 | view |
| 8210SRi26.00 | 8210SRi26 | view |
| 8210SRi26.01 | 8210SRi26 | view |
| 8210SRi26.00A550 | 8210SRi26 | view |
| 8210SRi26.00A580 | 8210SRi26 | view |
| 8210SRi26.01A550 | 8210SRi26 | view |
| 8210SRi26.01A580 | 8210SRi26 | view |
