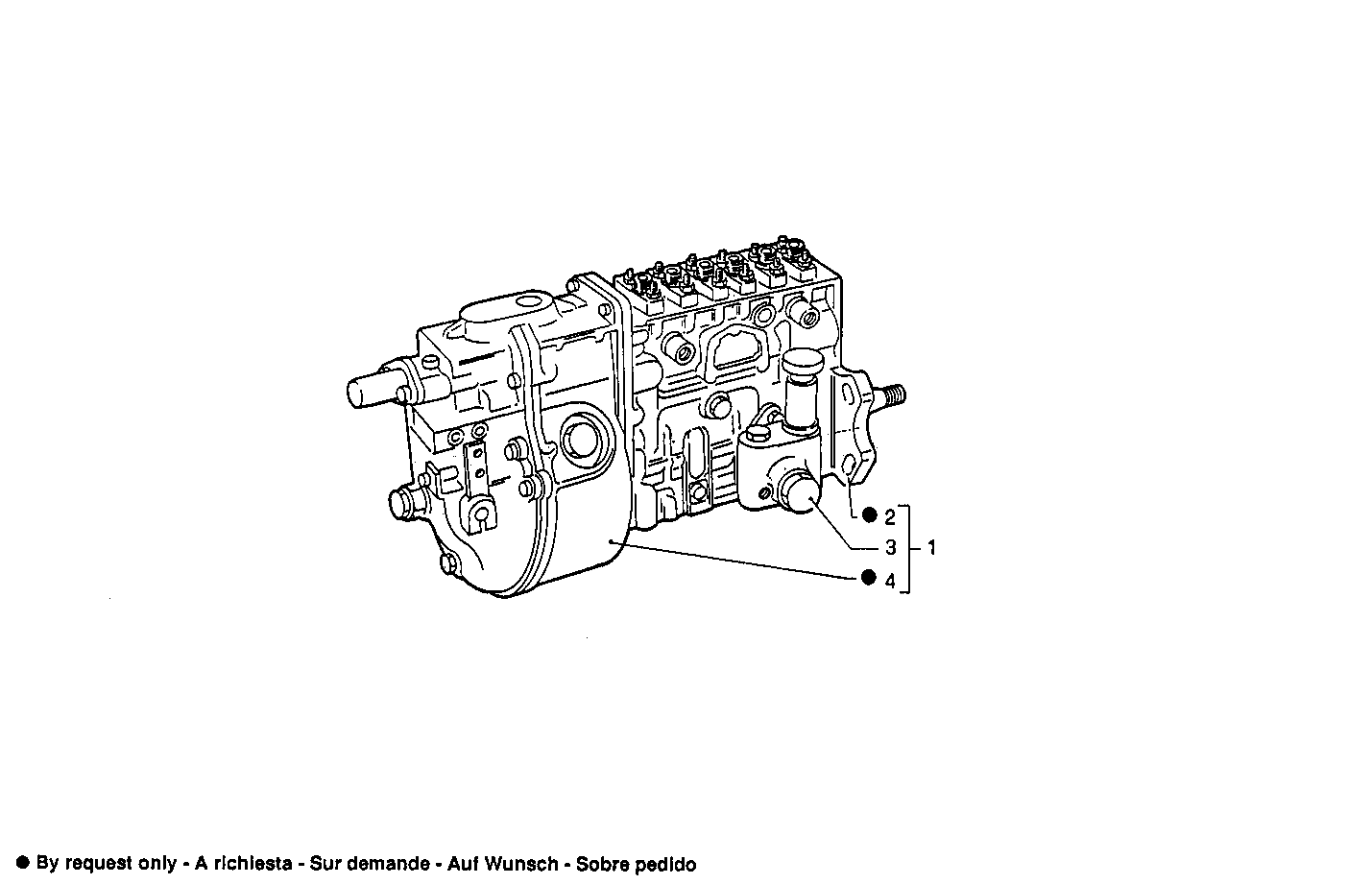

INJECTION PUMP ASSY
Assembly ID: 1400.132
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8010594 | INLINE INJECT.PUMP | 1 | ||
| 2 | 1400.132-002 | INLINE INJECT.PUMP | 1 | ||
| 3 | 93192760 | FUEL PUMP | 1 | ||
| 4 | 1400.132-004 | INJECTION CONTROL | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8061SM20.30 | 8061SM20 | view |
| 8061SM20.12 | 8061SM20 | view |
| 8061SM20.32 | 8061SM20 | view |
| 8061SM20.42 | 8061SM20 | view |
| 8061SRM25.12 | 8061SRM25 | view |
| 8061SRM25.42 | 8061SRM25 | view |
| 8061SM16.11 | 8061SM16 | view |
| 8061SRM25.13 | 8061SRM25 | view |
| 8061SRM25.33 | 8061SRM25 | view |
