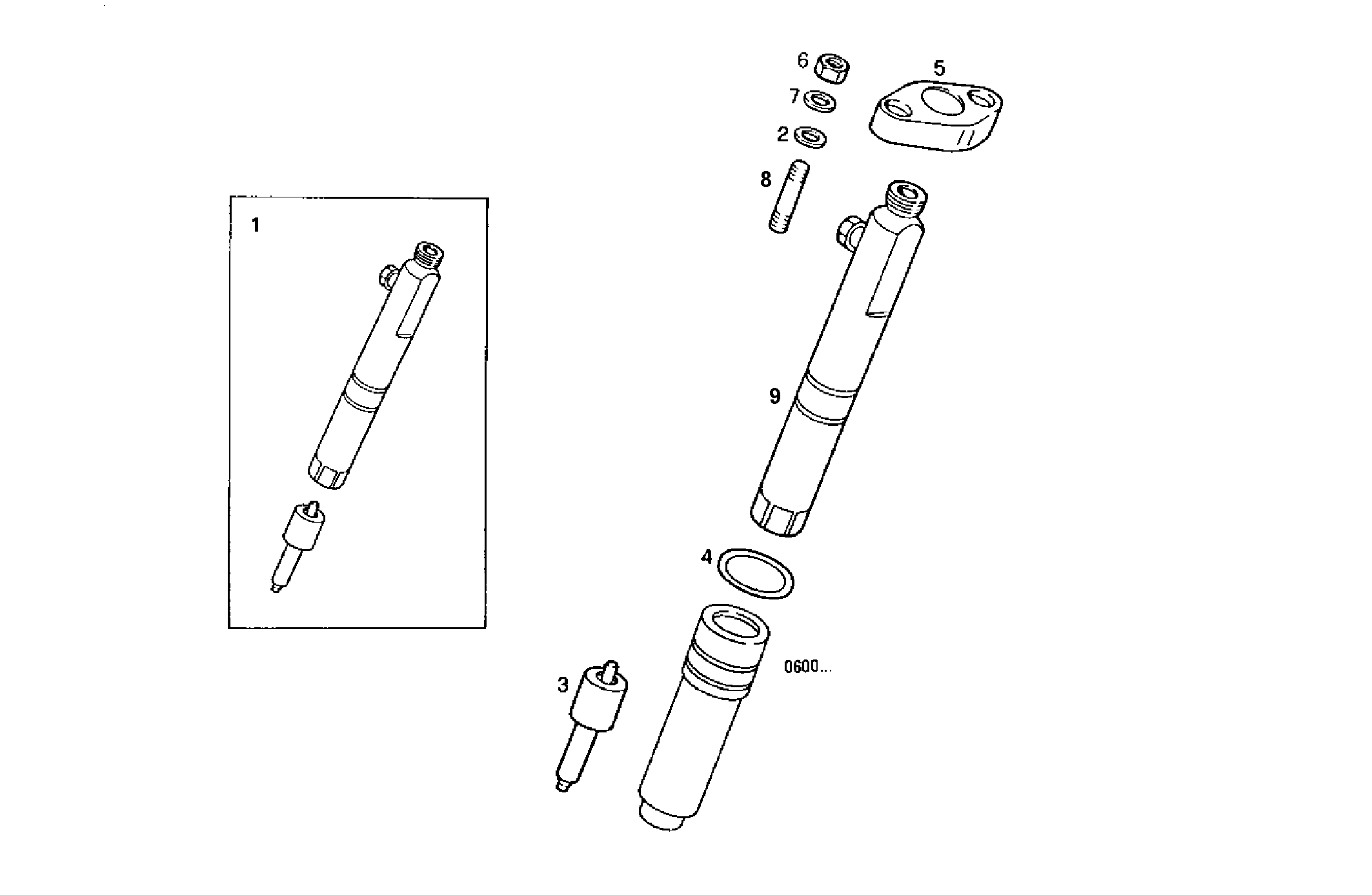

INJECTORS
Assembly ID: 1420.028
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 98413207 | NOZZLE | 6 | ||
| 2 | 756671 | WASHER | 6 | ||
| 3 | 98413209 | FUEL NOZZLE | 6 | ||
| 4 | 17278581 | O-RING | 6 | ||
| 5 | 4863049 | RETAINER | 6 | ||
| 6 | 17038221 | HEXAGON NUT | 6 | ||
| 7 | 17090274 | WASHER | 6 | ||
| 8 | 13450230 | STUD | 6 | ||
| 9 | 98413208 | NOZZLE HOLDER | 6 |
