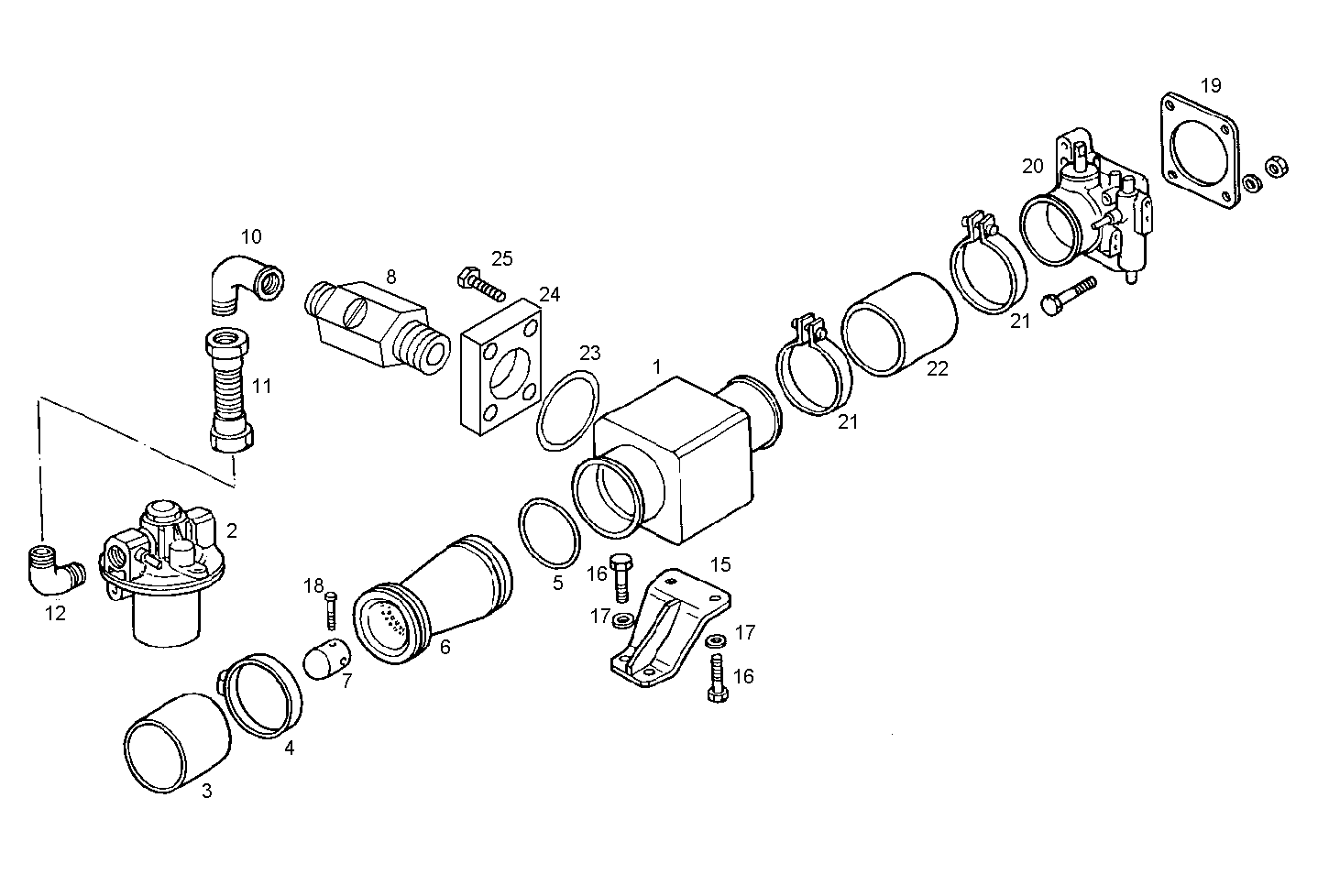

| 1 |
8031483
|
GAS ENGINE CARBURETTOR
|
|
1
|
|
| 2 |
8025790
|
VALVE
|
|
1
|
|
| 3 |
42070016
|
WATER HOSE
|
|
1
|
|
| 4 |
17765391
|
CLIP
|
|
2
|
|
|
17765393 |
CLIP |
|
2 |
|
| 5 |
17290581
|
O-RING
|
|
1
|
|
| 6 |
8025990
|
VENTURI HOUSING
|
|
1
|
|
| 7 |
8026231
|
CONE
|
|
1
|
|
| 8 |
8025991
|
HAND M.A.S.
|
|
1
|
|
| 10 |
8026151
|
PIPE SOCKET
|
|
1
|
|
| 11 |
8025035
|
HOSE
|
|
1
|
|
| 12 |
8025999
|
PIPE SOCKET
|
|
1
|
|
| 15 |
8025922
|
FUEL LINE
|
|
1
|
|
| 16 |
16605524
|
HEXAGON BOLT
|
|
4
|
|
| 17 |
17089474
|
SPRING WASHER
|
|
4
|
|
| 18 |
17131170
|
SCREW
|
|
1
|
|
| 19 |
8024244
|
GASKET
|
|
1
|
|
| 20 |
8024228
|
THROTTLE
|
|
1
|
|
| 21 |
4788410
|
CLIP
|
|
2
|
|
|
17765393 |
CLIP |
|
2 |
|
| 22 |
8025445
|
RUBBER SLEEVE
|
|
1
|
|
| 23 |
17280181
|
O-RING
|
|
1
|
|
| 24 |
8031765
|
FLANGE
|
|
1
|
|
| 25 |
16689124
|
CYLIND-HEAD SCREW
|
|
4
|
|
