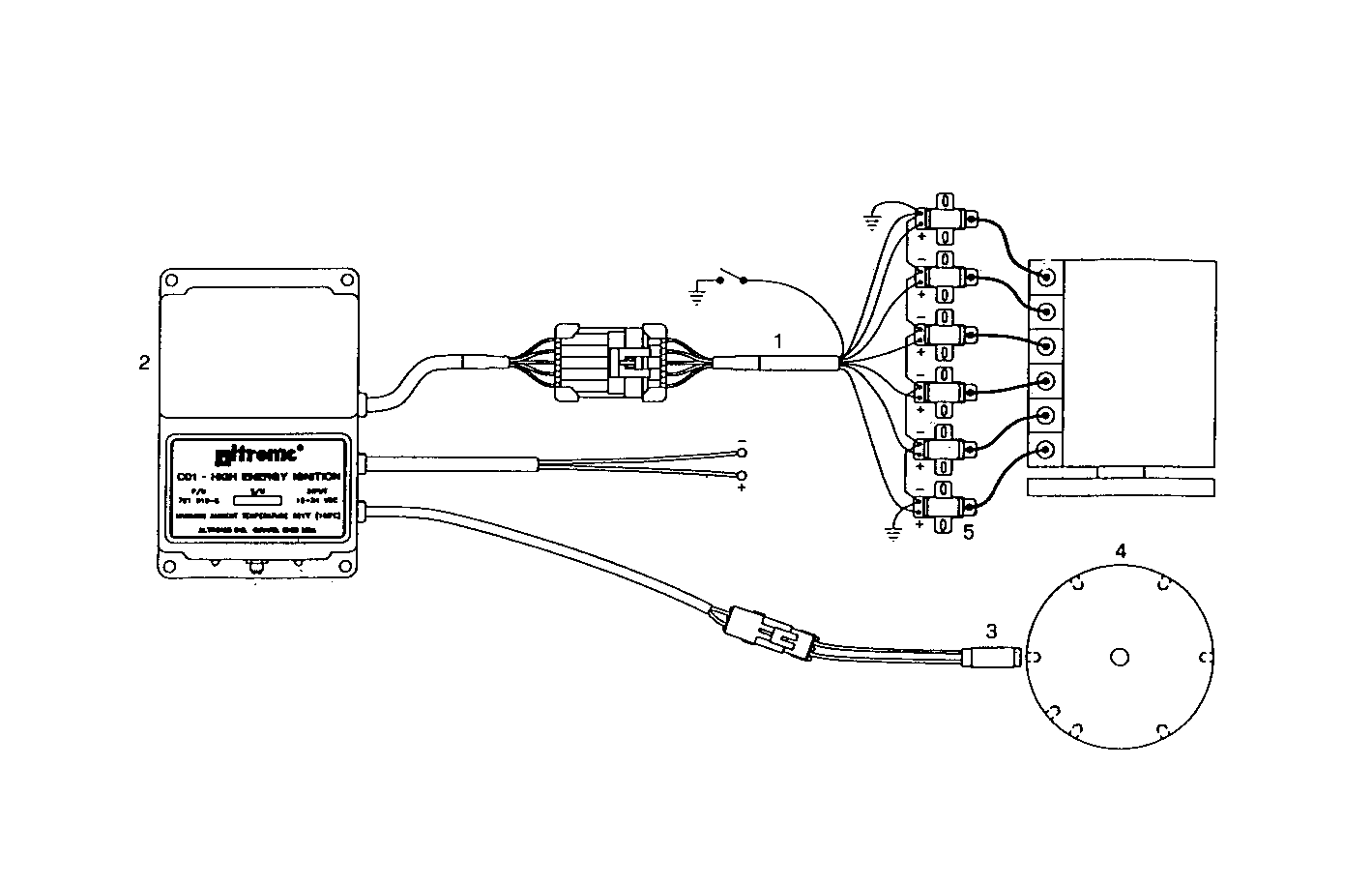

IGNITION CONTROL
Assembly ID: 2820.009
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8093280 | ENGINE HARNESS | 1 | ||
| 2 | 8093281 | GAS ENG. EL.CONTROL UNIT | 1 | ||
| 3 | 8093282 | PICK-UP | 1 | ||
| 4 | 8093283 | IGNITION CONTROL DISC | 1 | ||
| 5 | 8093284 | IGNITION COIL | 6 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 7675G86.05A502 | 7675G86 | view |
