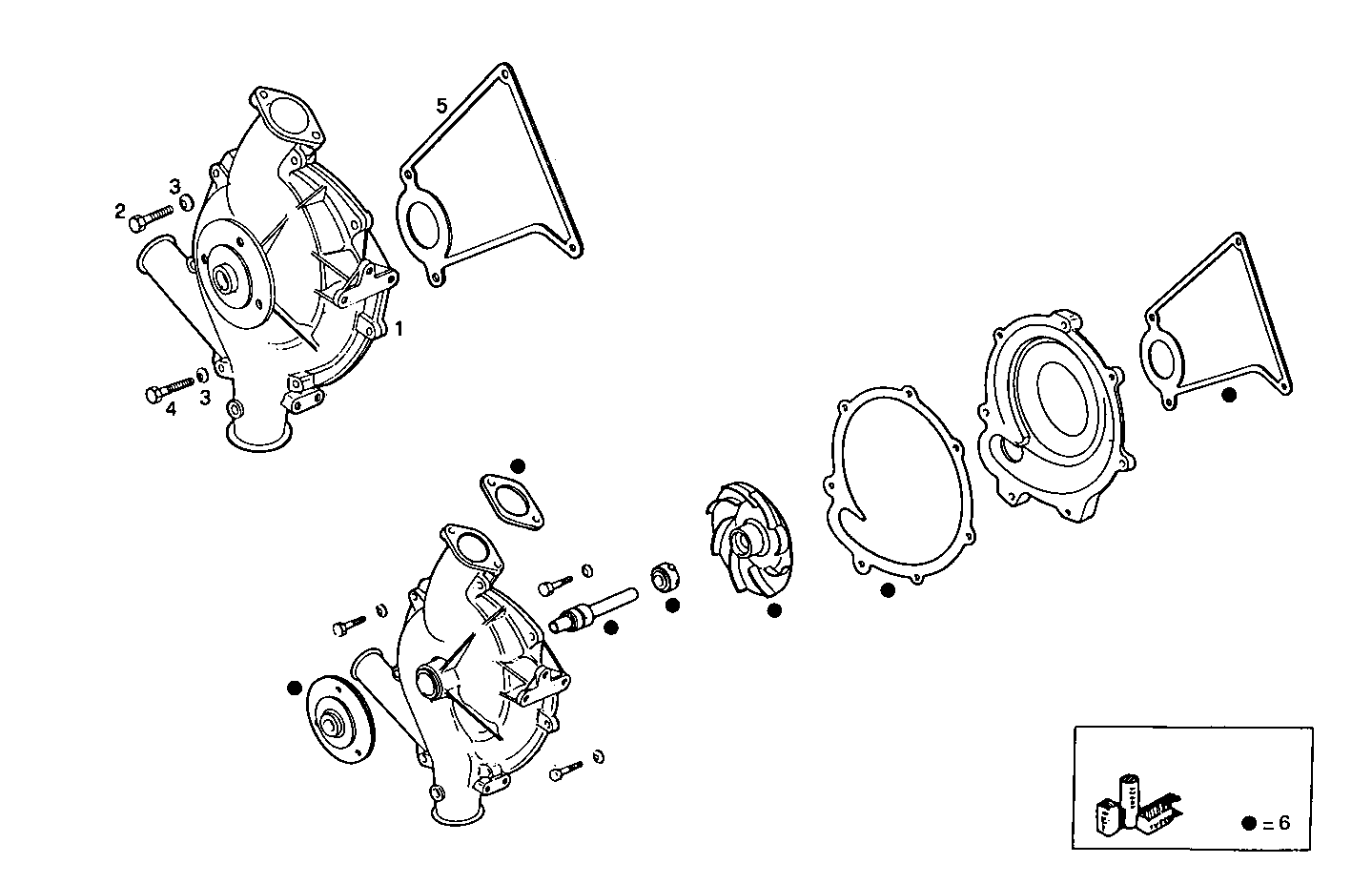

WATER PUMP
Assembly ID: 3200.022
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 4764156 | WATER PUMP | 1 | ||
| 2 | 11343721 | HEXAGON BOLT | 2 | ||
| 3 | 11198371 | SPRING WASHER | 4 | ||
| 4 | 15971921 | HEXAGON BOLT | 2 | ||
| 5 | 500301322 | FLAT ENGINE GASKET | 1 | ||
| 6 | 1902656 | KIT-WATER PUMP | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8281i03.00 | 8281i03 | view |
| 8281Si10.00 | 8281Si10 | view |
| 8281Si15.00 | 8281Si15 | view |
| 8281SRi10.00 | 8281SRi10 | view |
| 8281M32.10 | 8281M32 | view |
| 8281M32.30 | 8281M32 | view |
| GE8281M32.30A001 | GE8281M32 | view |
| PU8281Si10.00A101 | PU8281Si10 | view |
| 8281Si15.00A500 | 8281Si15 | view |
| 8281Si15.00A550 | 8281Si15 | view |
| 8281Si15.00A580 | 8281Si15 | view |
| 8281I03.00A803 | 8281i03 | view |
| PU8281SI10.00A103 | PU8281Si10 | view |
| PU8281SRI10.00A102 | PU8281SRI10 | view |
