| 1 |
500350785
|

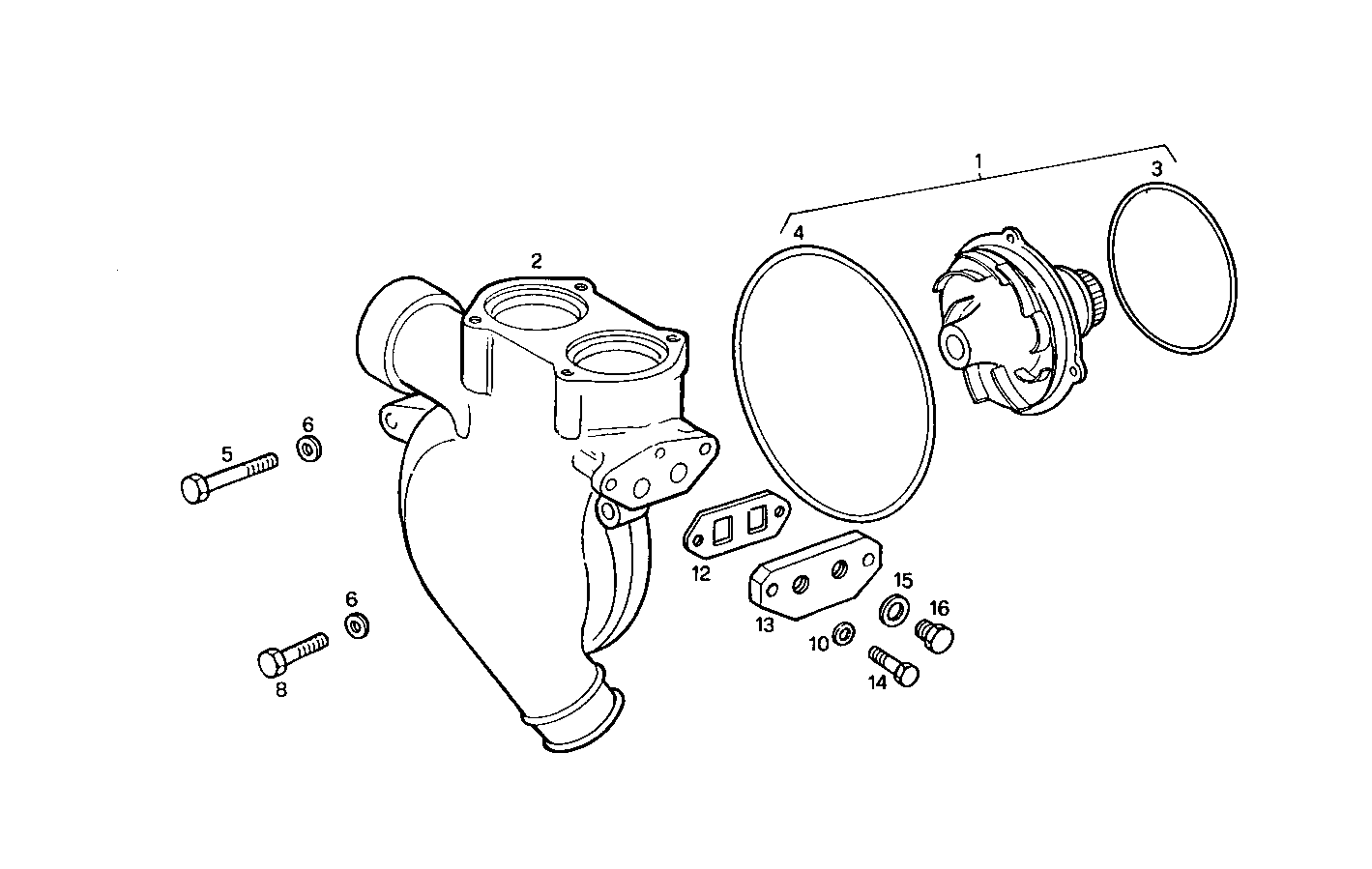

WATER PUMP
|
|
1
|
|
| 2 |
99450904
|
WATER PUMP HOUSING
|
|
1
|
|
| 3 |
17285281
|
O-RING
|
|
1
|
|
| 4 |
98461200
|
O-RING
|
|
1
|
|
| 5 |
15972824
|
SCREW
|
|
1
|
|
|
15005924 |
SCREW |
|
1 |
|
| 6 |
17090174
|
SPRING WASHER
|
|
3
|
|
| 8 |
15972224
|
HEXAGON BOLT
|
|
2
|
|
| 10 |
17089474
|
SPRING WASHER
|
|
5
|
|
| 12 |
61318823
|
FLAT ENGINE GASKET
|
|
1
|
|
| 13 |
98495062
|
SPACING BAR
|
|
1
|
|
| 14 |
16690524
|
SCREW
|
|
2
|
|
| 15 |
4858609
|
WASHER
|
|
1
|
|
| 16 |
16992411
|
THREADED PLUG
|
|
1
|
|
|
16992415 |
THREADED PLUG |
|
1 |
|
