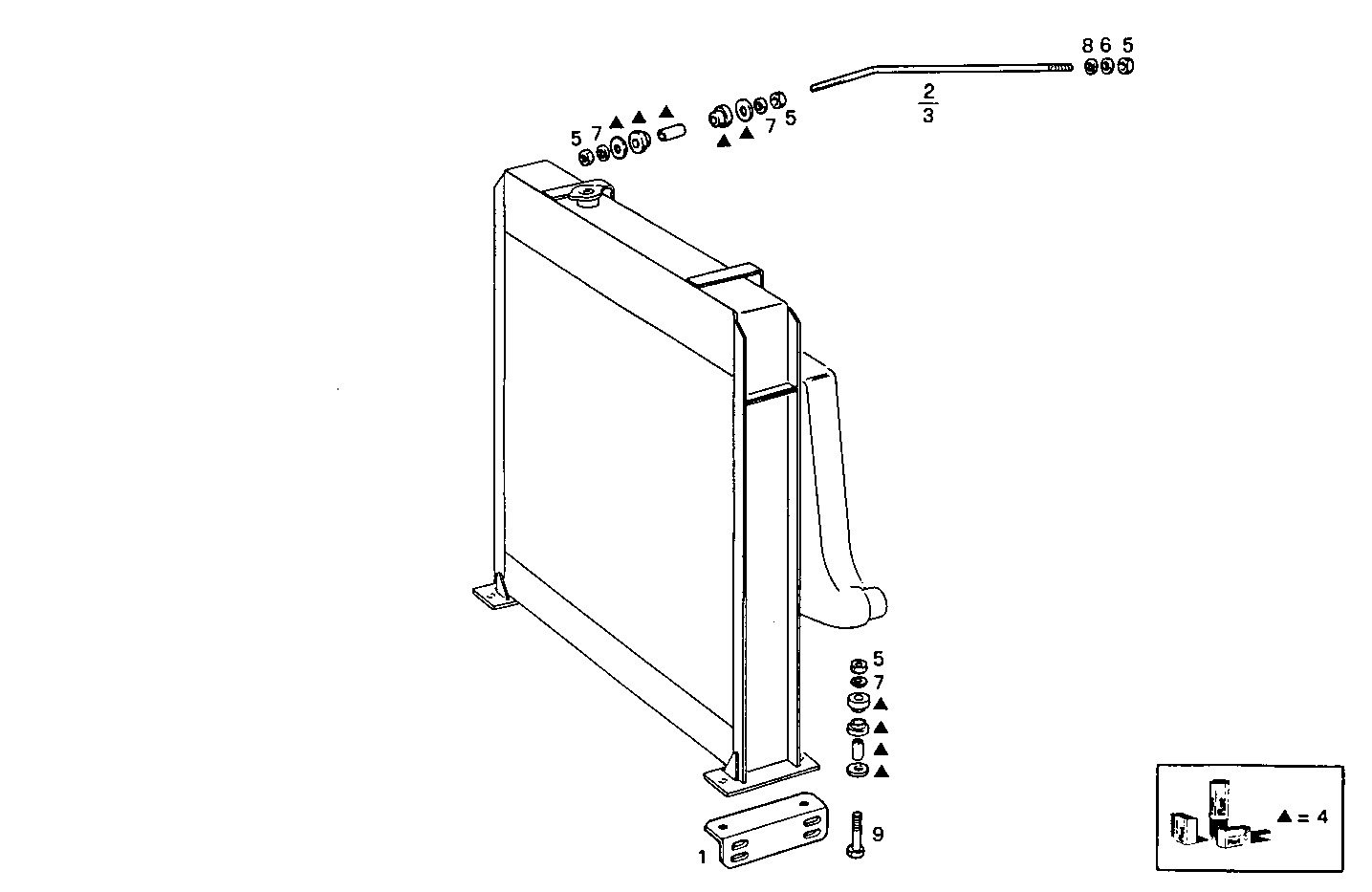

RADIATOR
Assembly ID: 3300.002-02
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8112550 | SUPPORT | 2 | ||
| 2 | 8005090 | TIE ROD | 1 | ||
| 3 | 8005091 | TIE ROD | 1 | ||
| 4 | 8090341 | KIT-RADIATOR | 1 | ||
| 5 | 17038621 | NUT | 8 | ||
| 6 | 17091074 | WASHER | 2 | ||
| 7 | 17091374 | SPRING WASHER | 8 | ||
| 8 | 17095304 | WASHER | 2 | ||
| 9 | 15541321 | HEXAGON BOLT | 4 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8210SRi26.00 | 8210SRi26 | view |
| 8210SRi26.00A550 | 8210SRi26 | view |
| 8210SRi26.00A580 | 8210SRi26 | view |
