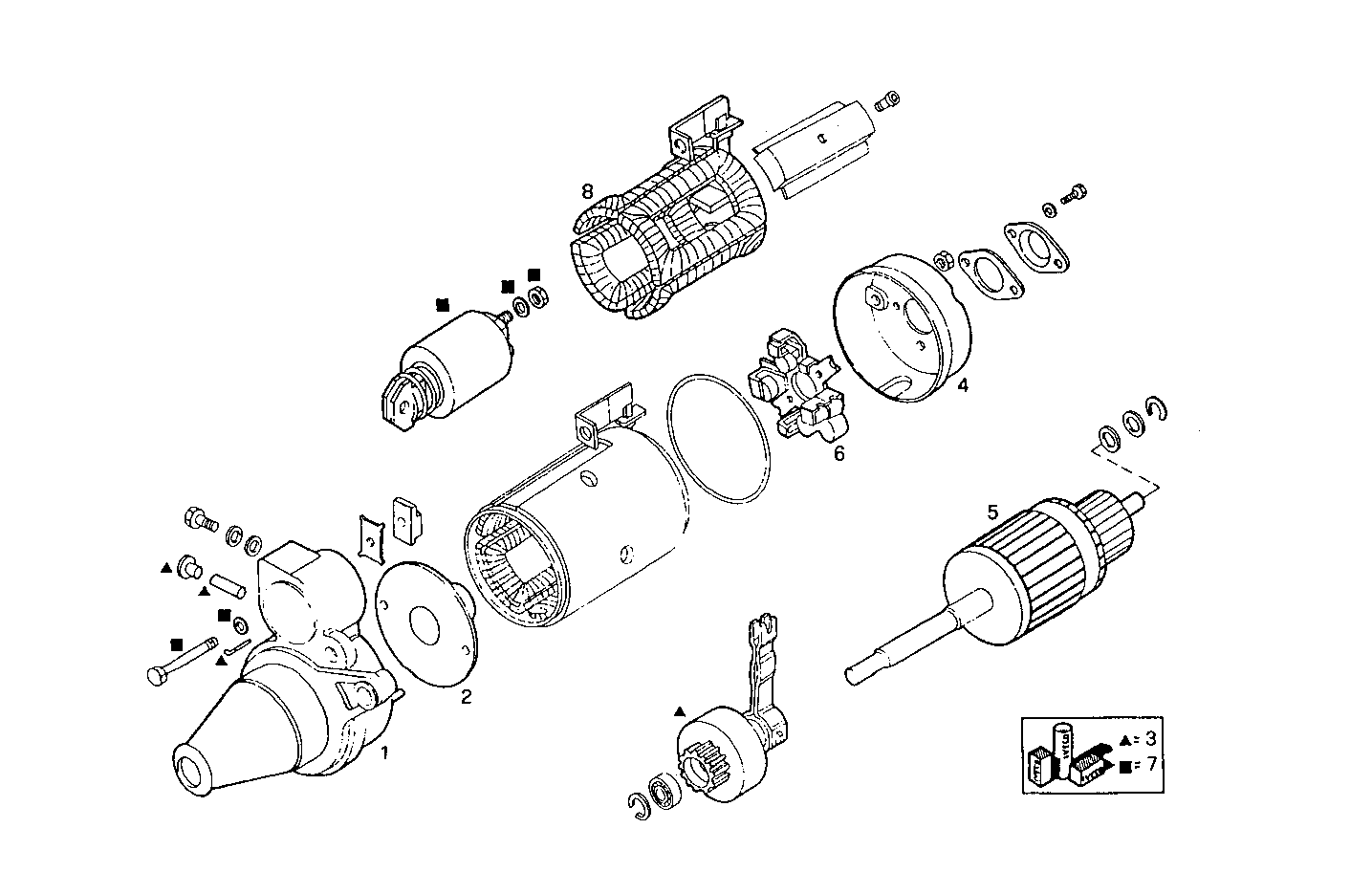

STARTER MOTOR (COMPONENTS)
Assembly ID: 3630.033
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 93156729 | STARTER SUPPORT | 1 | ||
| 2 | 9927795 | STARTER SUPPORT | 1 | ||
| 3 | 79081045 | KIT-STARTER | 1 | ||
| 4 | 7984503 | COVER | 1 | ||
| 5 | 9961531 | STARTER ARMATURE | 1 | ||
| 6 | 9961529 | BRUSH HOLDER | 1 | ||
| 7 | 9940366 | KIT-STARTER | 1 | ||
| 8 | 79092705 | STARTER WINDING | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8141i67.01 | 8141i67 | view |
