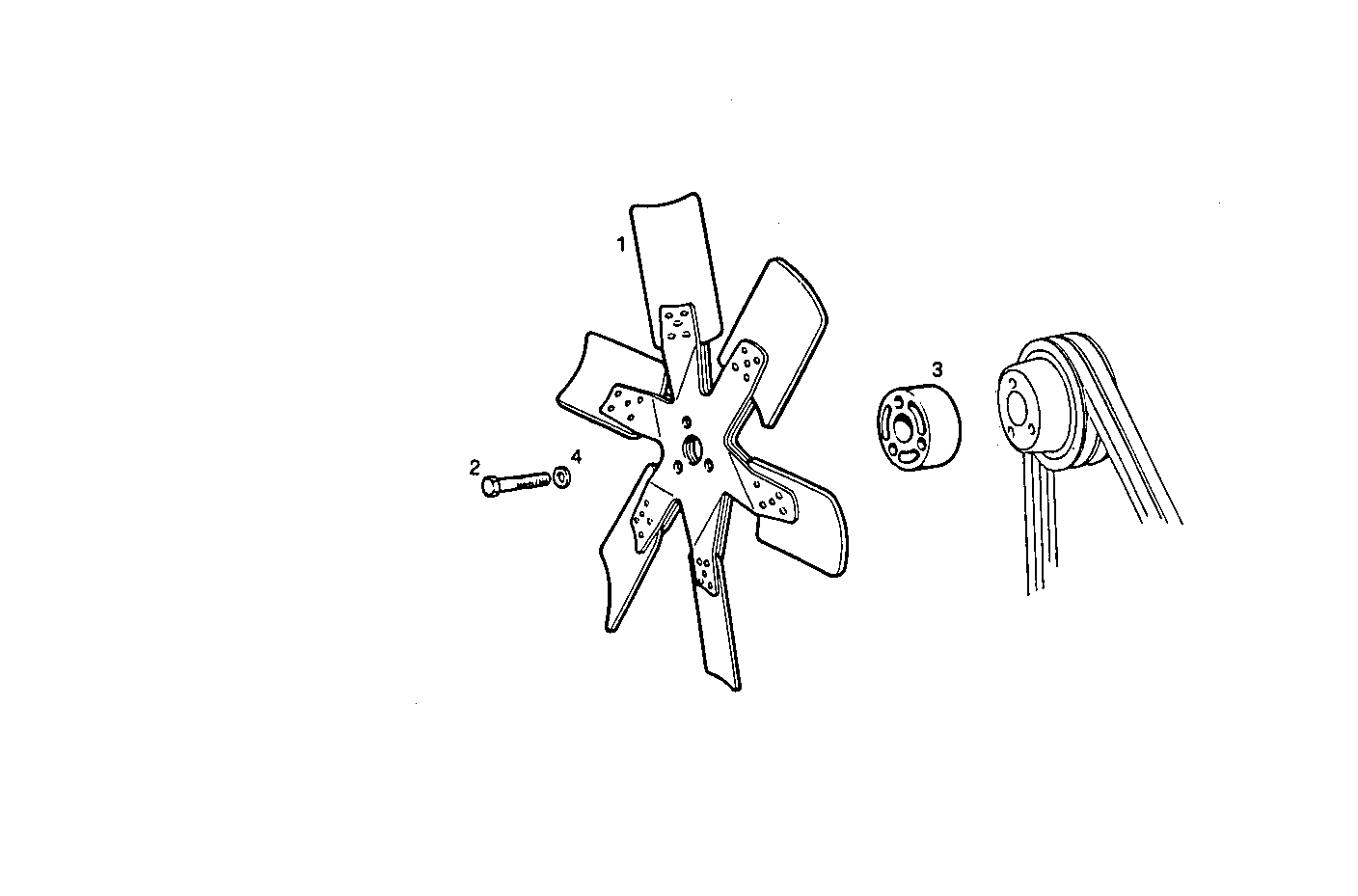

OVERSIZE PUSHER FAN
Assembly ID: A08010008
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8107257 | FAN | 1 | ||
| 2 | 8100533 | SPACING BAR | 1 | ||
| 3 | 16044521 | HEXAGON BOLT | 3 | ||
| 4 | 11194071 | WASHER | 3 |
Applies to engines
| Engine | Family | |
|---|---|---|
| GS8061i25.05A061 | GS8061i25 | view |
| GS8061i25.05A601 | GS8061i25 | view |
| GS8061i25.05A602 | GS8061i25 | view |
| GS8061i25.05A603 | GS8061i25 | view |
| 8061i05.00 | 8061i05 | view |
| 8061i25.00 | 8061i25 | view |
| 8061i05.05 | 8061i05 | view |
| 8061i25.05 | 8061i25 | view |
| 8065E00.00 | 8065E00 | view |
| 8065U00.00 | 8065U00 | view |
| 8061i25.05A652 | 8061i25 | view |
| 8061i25.05A651 | 8061i25 | view |
