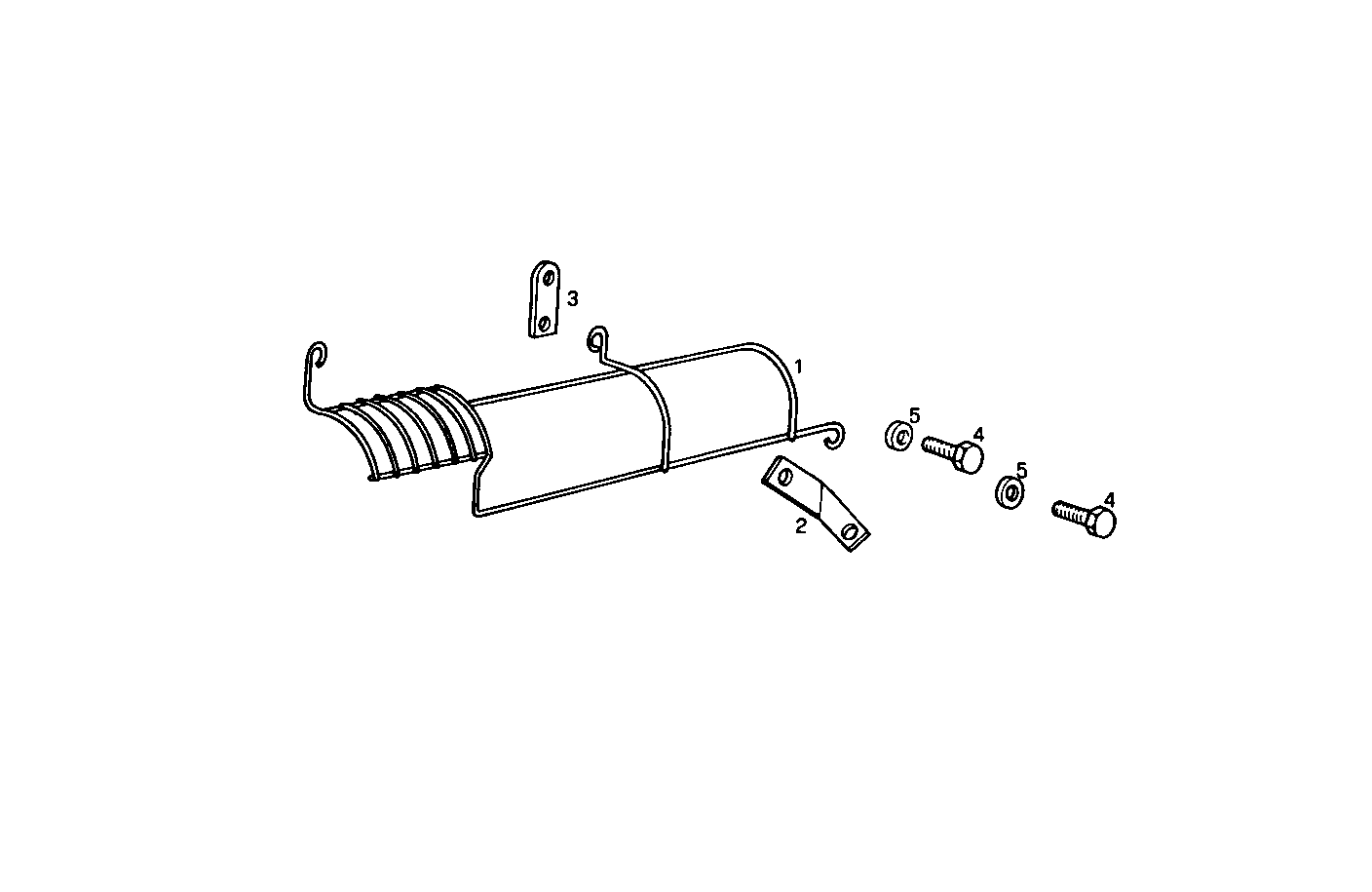

GUARD
Assembly ID: A48050001
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8103003 | PROTECTION | 1 | ||
| 2 | 8103009 | RETAINER | 1 | ||
| 3 | 4716869 | RETAINER | 1 | ||
| 4 | 16043021 | HEXAGON BOLT | 2 | ||
| 5 | 11198179 | WASHER | 2 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8210i03.00 | 8210i03 | view |
| 8210i03.00A500 | 8210i03 | view |
| 8210i03.00A520 | 8210i03 | view |
| 8210i03.00A550 | 8210i03 | view |
| 8210i03.00A580 | 8210i03 | view |
