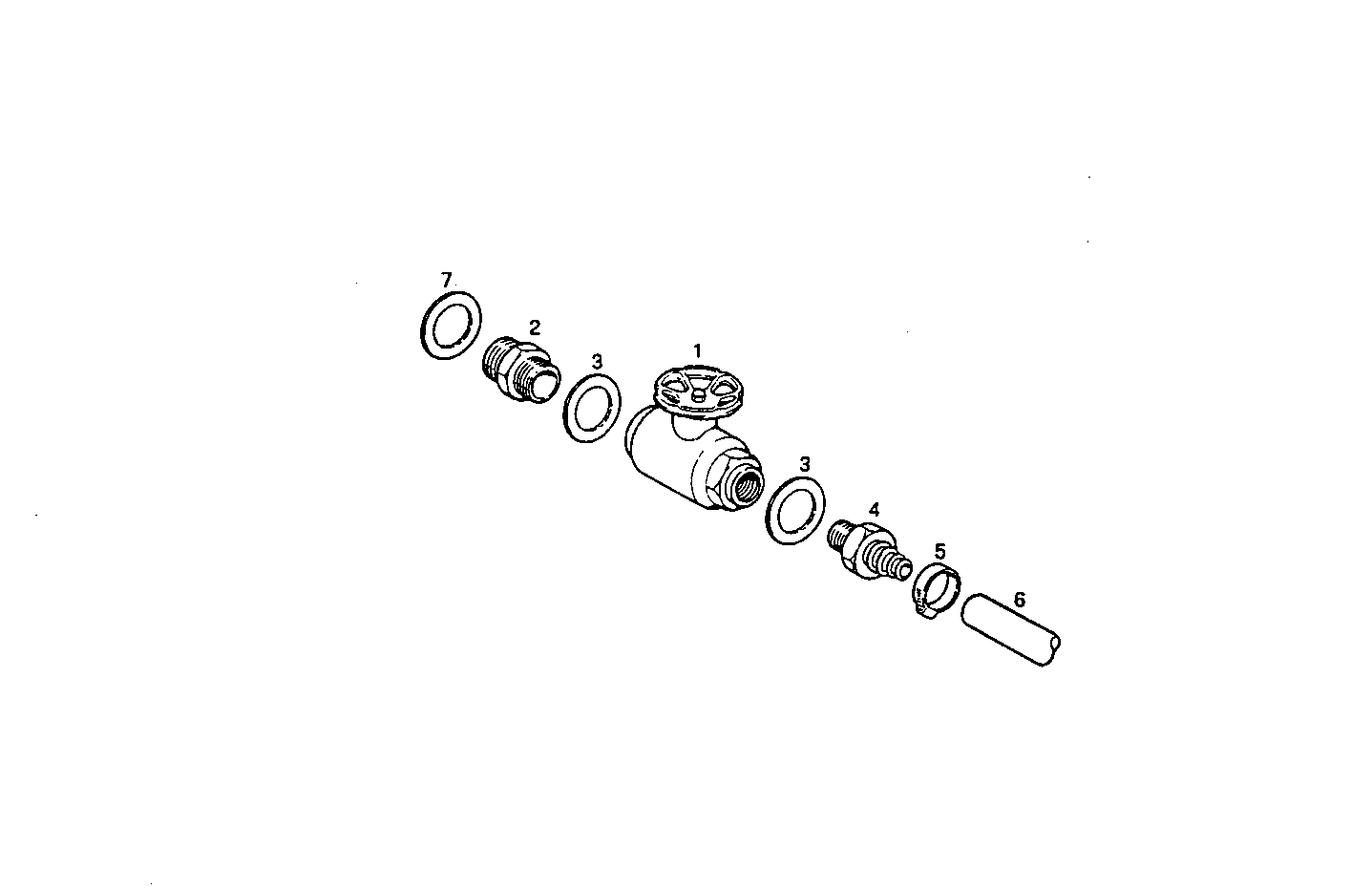

DRAIN COCK
Assembly ID: A49020004
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 4930837 | RETAINER COCK | 1 | ||
| 2 | 8022426 | PIPE SOCKET | 1 | ||
| 3 | 11271460 | GASKET | 2 | ||
| 4 | 4930839 | PIPE SOCKET | 1 | ||
| 5 | 17764592 | CLIP | 1 | ||
| 6 | 4931236 | OIL HOSE | 1 | ||
| 7 | 4858610 | WASHER | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 7450i15.05 | 7450i15 | view |
| 7450i16.05 | 7450i16 | view |
| 7450Si15.05 | 7450Si15 | view |
| 7450Si16.05 | 7450Si16 | view |
