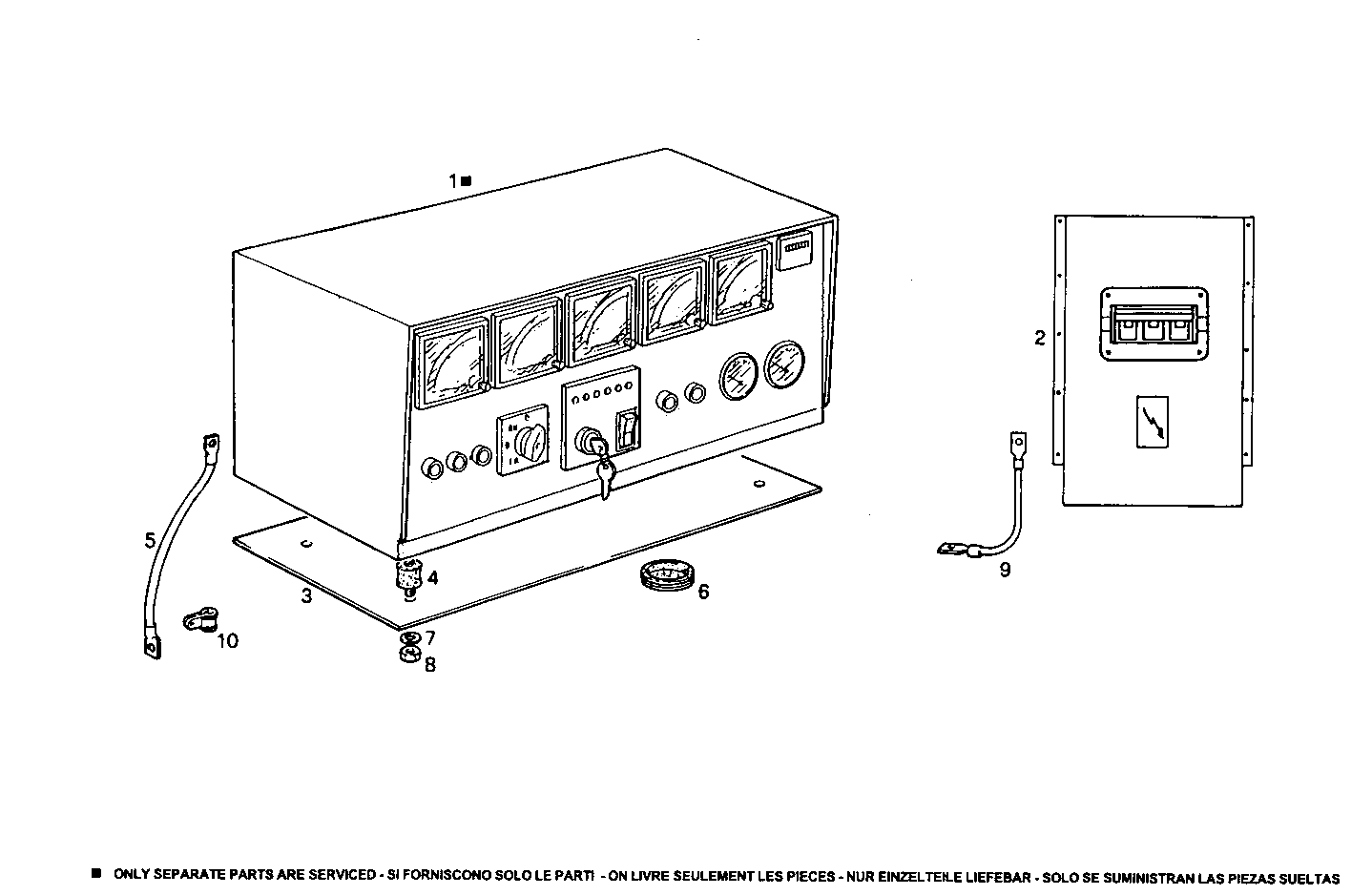

MANUAL CONTROL BOARD FOR ELECT. MACHINE
Assembly ID: A60210032
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8018940 | CONTROL BOARD ASSY | 1 | ||
| 2 | 8110785 | DIFFERENTIAL SWITCH | 1 | ||
| 3 | 8019201 | COVER | 1 | ||
| 4 | 8104155 | DOWEL | 4 | ||
| 5 | 8006993 | EARTH WIRE | 1 | ||
| 6 | 8113214 | INSULATING RING | 1 | ||
| 7 | 17088474 | WASHER | 8 | ||
| 8 | 17037821 | HEXAGON NUT | 8 | ||
| 9 | 8104707 | WIRE/CABLE | 1 | ||
| 10 | 17314890 | CLIP | 2 |
Applies to engines
| Engine | Family | |
|---|---|---|
| GE8361SRi26.06A955 | GE8361SRi26 | view |
