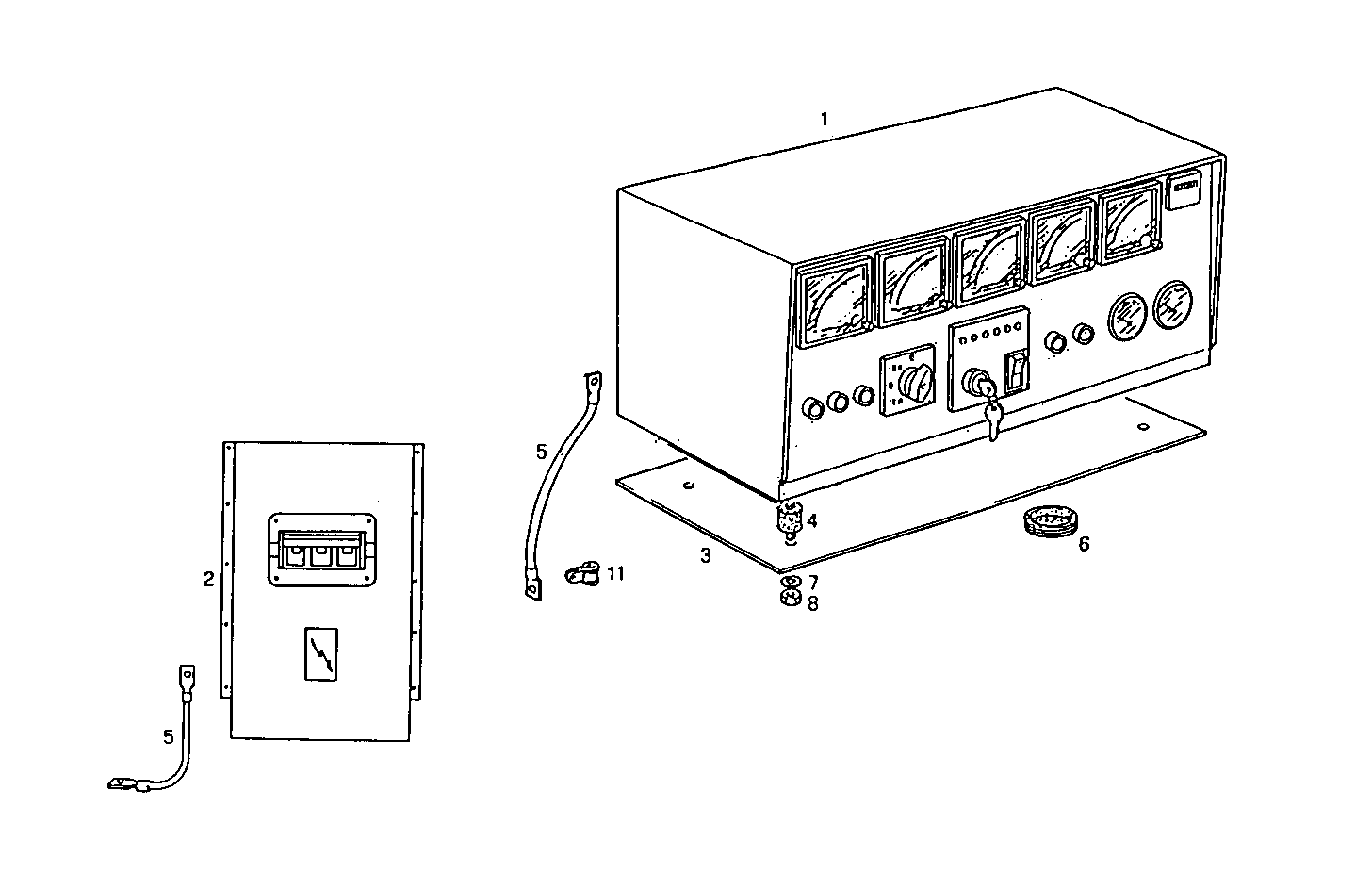

MANUAL CONTROL BOARD FOR ELECT. MACHINE
Assembly ID: A60330002
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8019302 | CONTROL BOARD ASSY | 1 | ||
| 2 | 8010116 | SWITCH | 1 | ||
| 3 | 8019140 | COVER | 1 | ||
| 4 | 8104155 | DOWEL | 4 | ||
| 5 | 8110852 | EARTH WIRE | 2 | ||
| 6 | 8113214 | INSULATING RING | 1 | ||
| 7 | 17088474 | WASHER | 8 | ||
| 8 | 17037821 | HEXAGON NUT | 8 | ||
| 11 | 17314890 | CLIP | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| GE8061Si16.05A955 | GE8061Si16 | view |
