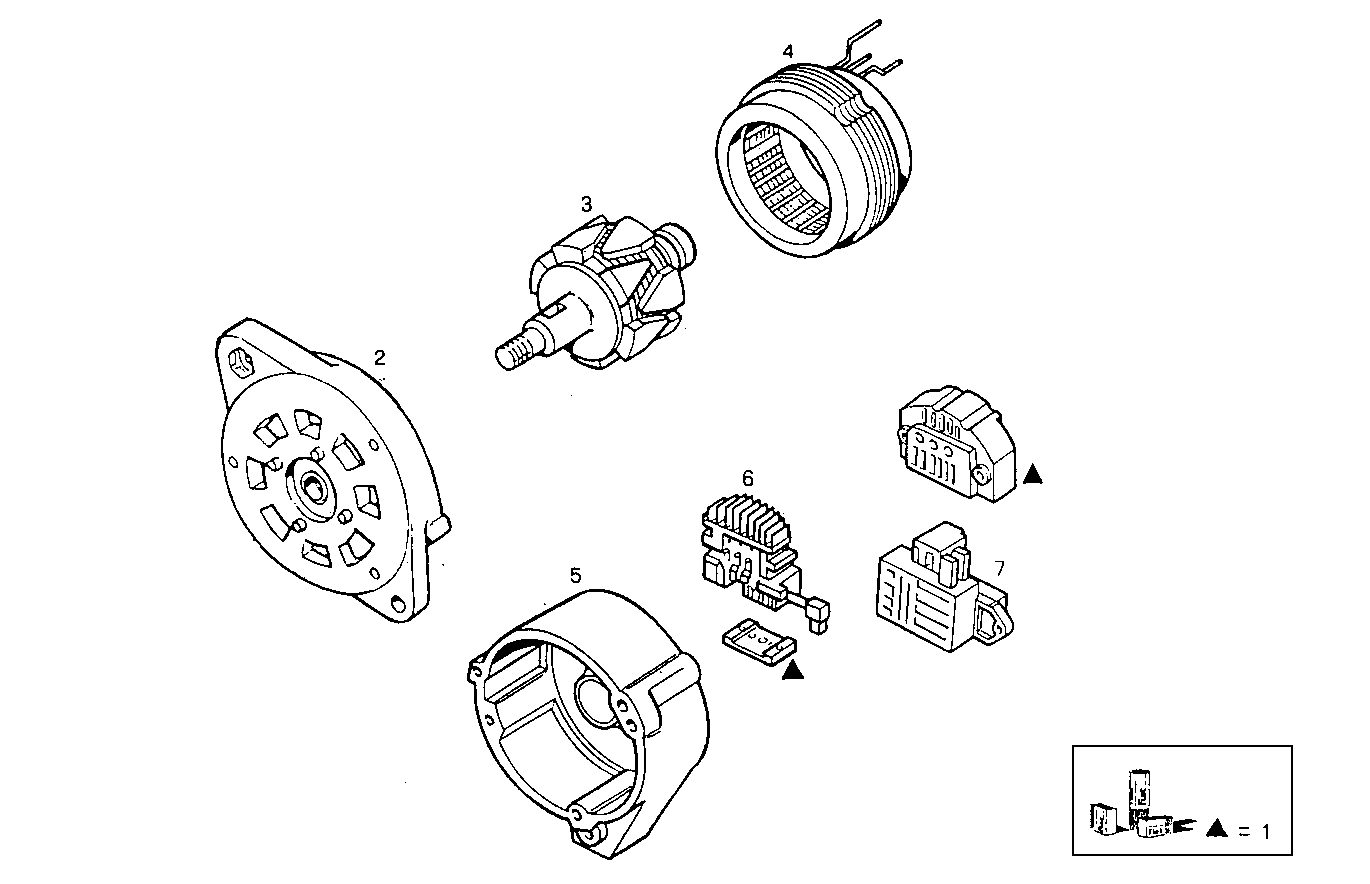

ALTERNATOR
Assembly ID: T1400002
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 93161150 | KIT-GENERATOR | 1 | ||
| 2 | 93160166 | GENERATOR SUPPORT | 1 | ||
| 3 | 93160169 | GENERATOR SUPPORT | 1 | ||
| 4 | 93158563 | RECTIFIER BRIDGE | 1 | ||
| 5 | 93160170 | VOLTAGE REGULATOR | 1 | ||
| 6 | 93160167 | GENERATOR ROTOR | 1 | ||
| 7 | 93160168 | GENERATOR STATOR | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8210SRi28.00 | 8210SRi28 | view |
| 8210SRi29.00 | 8210SRi29 | view |
| GE8210SRi28.00N970 | GE8210SRi28 | view |
| GE8210SRi28.00R970 | GE8210SRi28 | view |
