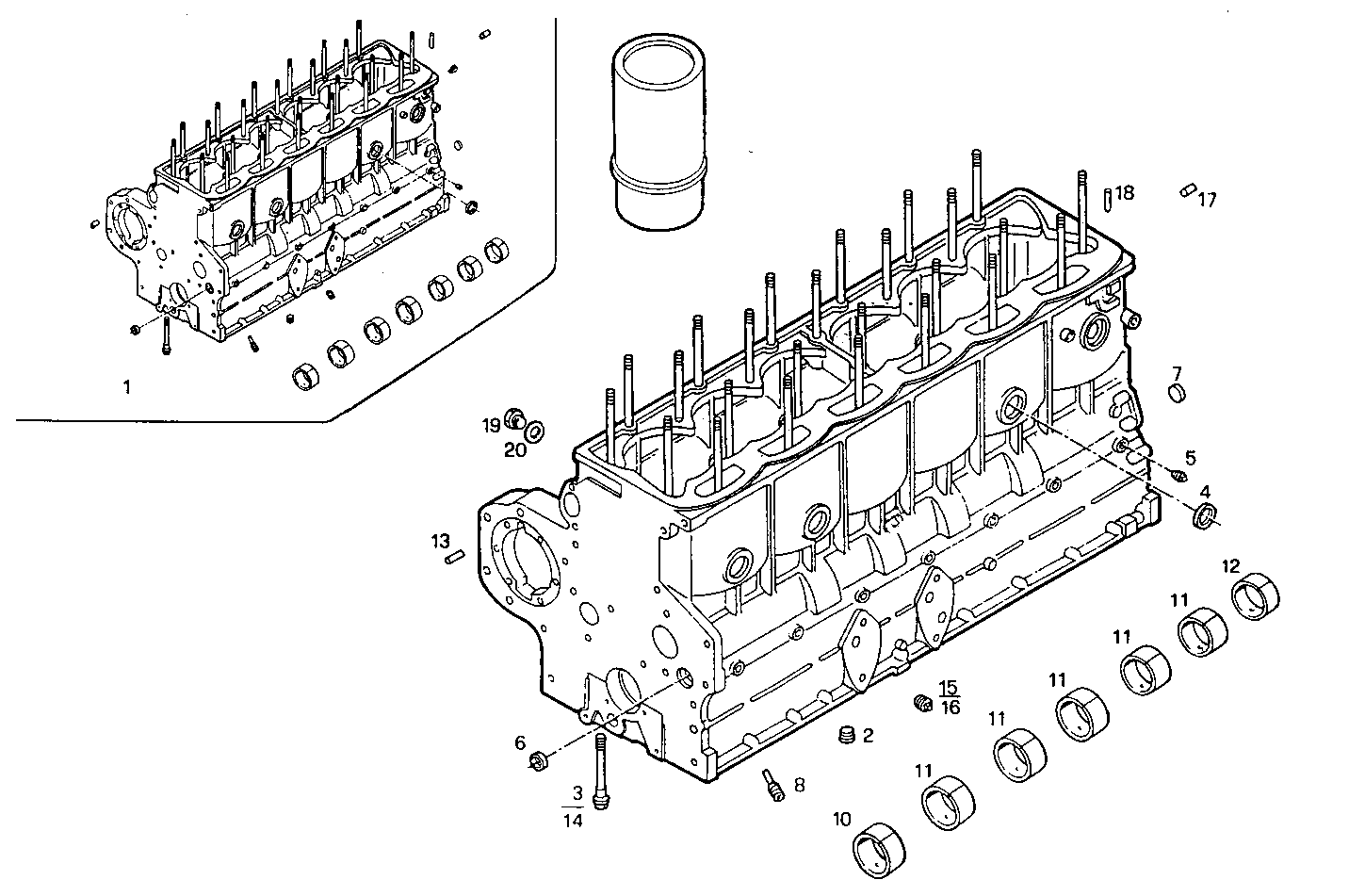

CRANKCASE

Assembly ID: 0400.038

Parts

#	Part number	Description	Quantity
1	4846322	CRANKCASE	1
	14329301	CRANKCASE	1
2	4731414	THREADED PLUG	1
3	8829588	SCREW	14
4	16991170	LOCK PLUG	6
5	14323911	LOCK PLUG	4
6	14328801	LOCK PLUG	1
7	14329301	PLUG	1
8	4726808	OIL NOZZLE	6
10	8826317	CAMSHAFT BEARING	1
11	8826318	CAMSHAFT BEARING	5
12	8826319	CAMSHAFT BEARING	1
13	4708557	DOWEL PIN	2
14	4851814	SCREW	14
15	10151850	THREADED PLUG	1
16	99434233	THREADED PLUG	1
17	10839810	DOWEL PIN	3
18	14167570	DOWEL PIN	2
19	10300611	LOCK PLUG	1
	16992315	LOCK PLUG	1
20	4858608	SEAL GASKET	1

Applies to engines

Engine	Family
GE8361SRi25.00A50L	GE8361SRi25	view
GE8361SRi25.00A50S	GE8361SRi25	view
GE8361SRi25.00A52S	GE8361SRi25	view
GE8361SRi25.00A70E	GE8361SRi25	view
GE8361SRi25.00A70L	GE8361SRi25	view
GE8361SRi25.00A70S	GE8361SRi25	view
GE8361SRi26.00A50L	GE8361SRi26	view
GE8361SRi26.00A50S	GE8361SRi26	view
GE8361SRi26.00A51S	GE8361SRi26	view
GE8361SRi26.00A52L	GE8361SRi26	view
GE8361SRi26.00A52S	GE8361SRi26	view
GE8361SRi26.00A70E	GE8361SRi26	view
GE8361SRi26.00A70L	GE8361SRi26	view
GE8361SRi26.00A70S	GE8361SRi26	view
GE8361SRi25.06A905	GE8361SRi25	view
GE8361SRi25.06A955	GE8361SRi25	view
GE8361SRi26.06A955	GE8361SRi26	view
GS8361SRi25.06A060	GS8361SRi25	view
GS8361SRi25.06A601	GS8361SRi25	view
GS8361SRi25.06A651	GS8361SRi25	view
GS8361SRi26.06A060	GS8361SRi26	view
GS8361SRi26.06A601	GS8361SRi26	view
GS8361SRi26.06A651	GS8361SRi26	view
GS8361SRi26.06A653	GS8361SRi26	view
8361SRi25.00	8361SRi25	view
8361SRi26.00	8361SRi26	view
8361Si11.05	8361Si11	view
8361SRi11.05	8361SRi11	view
8361Si10.00	8361Si10	view
8361Si10.00A029	8361Si10	view
8361SRM38.10	8361SRM38	view
8361SRM38.11	8361SRM38	view
8361SRM40.00	8361SRM40	view
8361SRM40.01	8361SRM40	view
8361SM21.00	8361SM21	view
8361SRM32.00	8361SRM32	view
8361SRM32.40	8361SRM32	view
8361SRM40.10	8361SRM40	view
8361SRM40.40	8361SRM40	view
8361SM21.01	8361SM21	view
8361SRM32.01	8361SRM32	view
8361SRM32.41	8361SRM32	view
8361SRM40.11	8361SRM40	view
8361SRM40.41	8361SRM40	view
8361SRi25.00A550	8361SRi25	view
8361SRi25.00A580	8361SRi25	view
8361SRi26.00A550	8361SRi26	view
8361SRi26.00A580	8361SRi26	view
8361SRi25.06A550	8361SRi25	view
8361SRi26.06A550	8361SRi26	view
8361SM21.01A550	8361SM21	view
8361SM21.01A580	8361SM21	view
8361SRM32.01A550	8361SRM32	view
8361SI10.00A802	8361Si10	view
8361SI10.00A801	8361Si10	view
8361SI10.00A800	8361Si10	view
PU8361SI10.00A100	PU8361SI10	view
