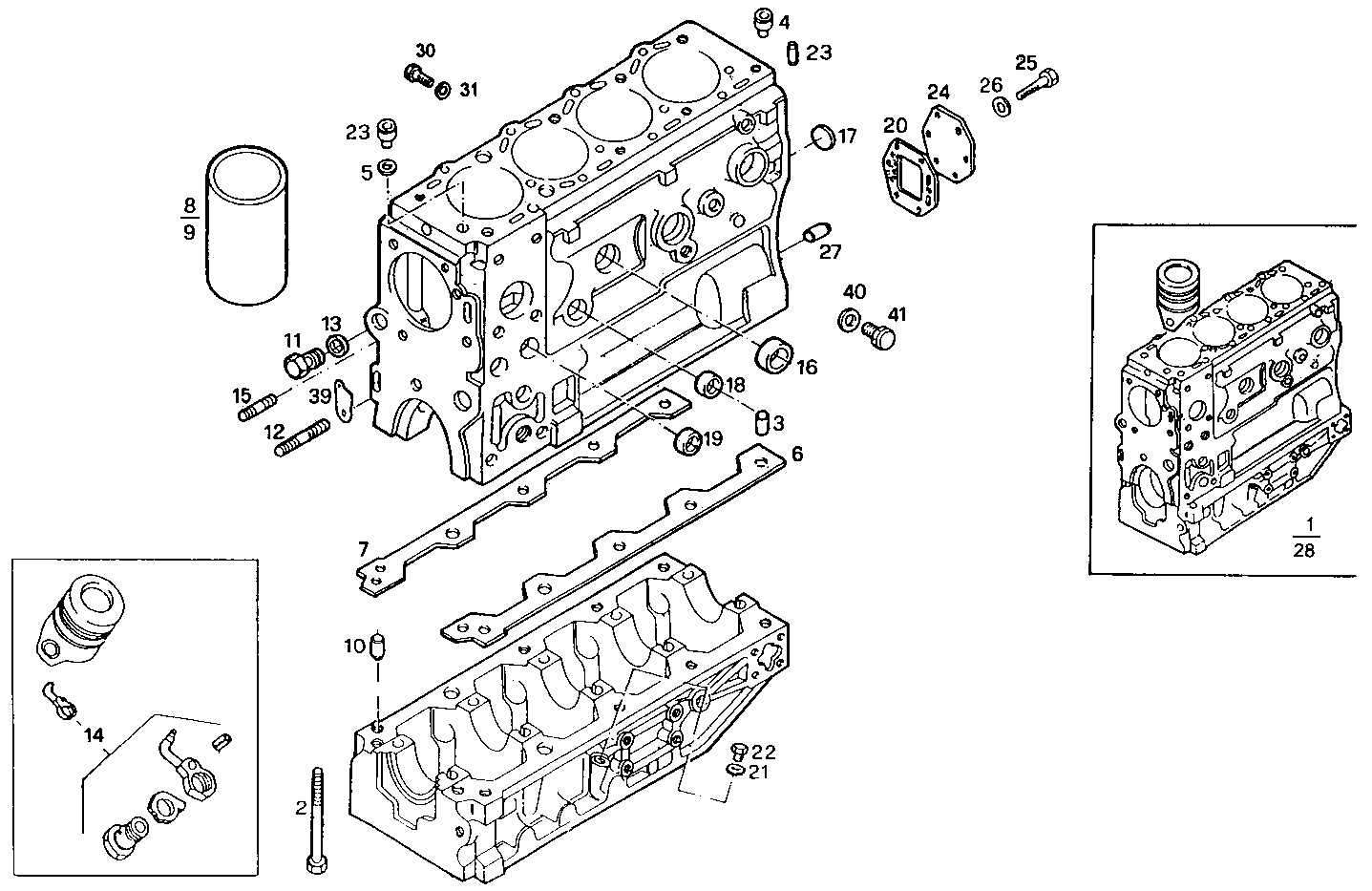

| 1 |
98494297
|
CRANKCASE
|
|
1
|
|
| 2 |
4712523
|
SCREW
|
|
10
|
|
|
4792169 |
SCREW |
|
10 |
|
| 3 |
4724790
|
DOWEL PIN
|
|
2
|
|
| 4 |
98418754
|
DOWEL PIN
|
|
1
|
|
| 5 |
17277981
|
O-RING
|
|
1
|
|
| 6 |
98432857
|
FLAT ENGINE GASKET
|
|
1
|
|
| 7 |
98432884
|
FLAT ENGINE GASKET
|
|
1
|
|
| 8 |
7302961
|
CYLINDER LINER
|
|
4
|
|
| 9 |
7302962
|
CYLINDERLINER +0.2
|
|
4
|
|
| 10 |
4279387
|
CENTERING RING
|
|
1
|
|
| 11 |
7303457
|
THREADED PLUG
|
|
1
|
|
|
504072562 |
THREADED PLUG |
|
1 |
|
| 12 |
7301674
|
STUD
|
|
1
|
|
| 13 |
16508360
|
WASHER
|
|
1
|
|
| 14 |
4856606
|
OIL NOZZLE
|
|
4
|
|
| 15 |
13517021
|
STUD
|
|
1
|
|
| 16 |
14282870
|
LOCK PLUG
|
|
5
|
|
| 17 |
7301976
|
PLUG
|
|
2
|
|
| 18 |
14328901
|
LOCK PLUG
|
|
1
|
|
| 19 |
14329401
|
LOCK PLUG
|
|
1
|
|
| 20 |
98421274
|
FLAT ENGINE GASKET
|
|
1
|
|
| 21 |
10260160
|
SEAL GASKET
|
|
1
|
|
| 22 |
11903211
|
LOCK PLUG
|
|
1
|
|
| 23 |
98418753
|
DOWEL PIN
|
|
1
|
|
| 24 |
4718627
|
COVER
|
|
1
|
|
| 25 |
16043324
|
HEXAGON BOLT
|
|
6
|
|
| 26 |
11193871
|
WASHER
|
|
6
|
|
|
17089474 |
WASHER |
|
6 |
|
| 27 |
7300019
|
DOWEL PIN
|
|
1
|
|
| 28 |
99446451
|
CRANKCASE
|
|
1
|
|
| 30 |
99488780
|
SCREW CONNECTOR
|
|
1
|
|
| 31 |
98474306
|
WASHER
|
|
1
|
|
| 39 |
4719077
|
COVER
|
|
1
|
|
| 40 |
10282460
|
SEAL GASKET
|
|
1
|
|
| 41 |
10300611
|
LOCK PLUG
|
|
1
|
|
|
16992315 |
LOCK PLUG |
|
1 |
|
