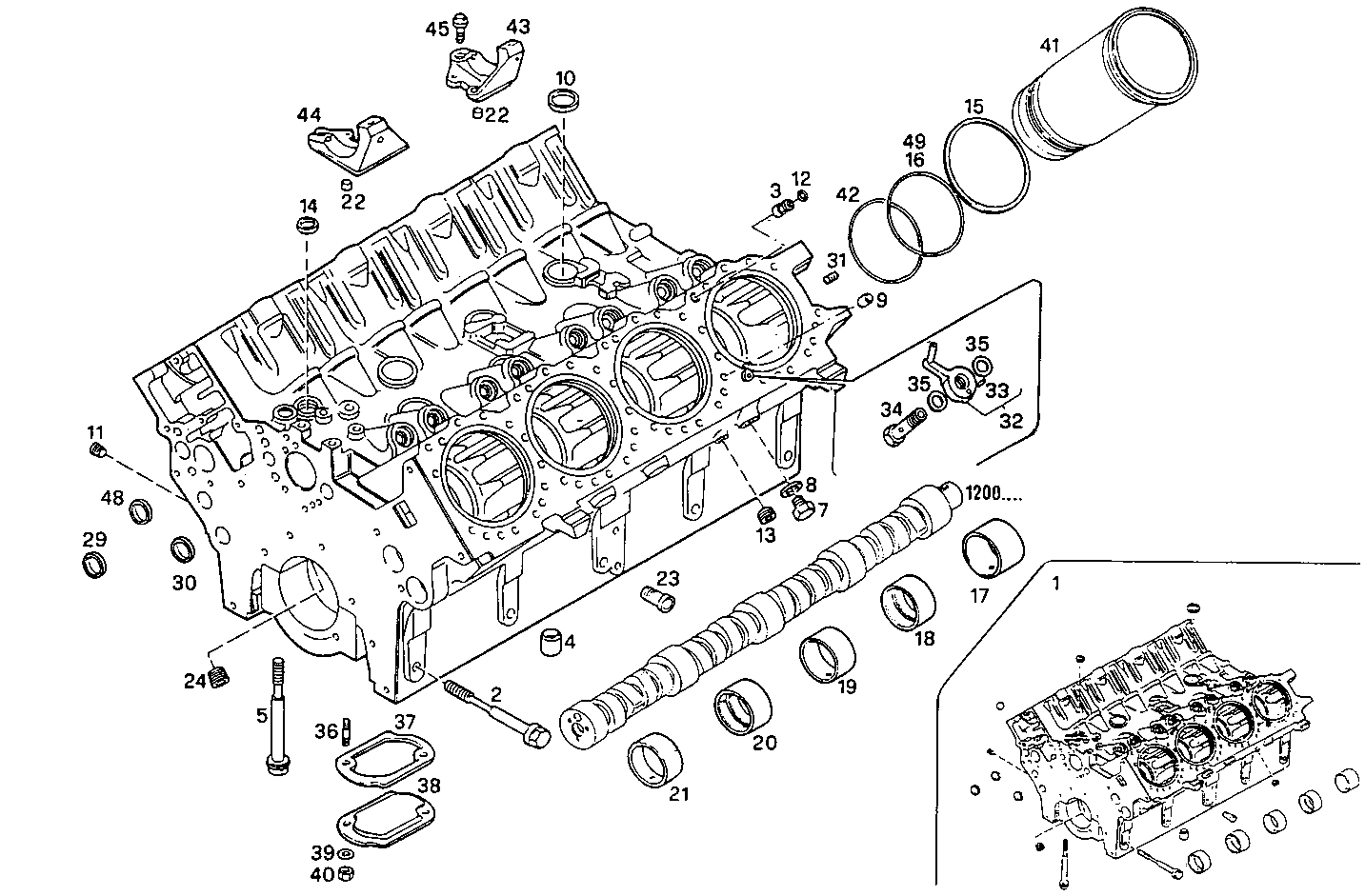

| 1 |
4799684
|
CRANKCASE
|
|
1
|
|
| 2 |
4818507
|
HEXAGON BOLT
|
|
10
|
|
| 3 |
4671990
|
DOWEL PIN
|
|
8
|
|
| 4 |
4687606
|
DOWEL PIN
|
|
1
|
|
| 5 |
4769168
|
CRAHKSFT.BEAR.STUD
|
|
10
|
|
| 7 |
10305071
|
LOCK PLUG
|
|
1
|
|
| 8 |
98429280
|
SEAL GASKET
|
|
1
|
|
| 9 |
10839810
|
DOWEL PIN
|
|
8
|
|
| 10 |
14282970
|
LOCK PLUG
|
|
8
|
|
|
16991370 |
LOCK PLUG |
|
8 |
|
| 11 |
14325401
|
LOCK PLUG
|
|
2
|
|
| 12 |
17277981
|
O-RING
|
|
8
|
|
| 13 |
14325001
|
PLUG
|
|
2
|
|
|
7177194 |
PLUG |
|
2 |
|
| 14 |
14282770
|
LOCK PLUG
|
|
1
|
|
|
16991170 |
LOCK PLUG |
|
1 |
|
| 15 |
4686958
|
FLAT ENGINE GASKET
|
|
8
|
|
| 16 |
99448045
|
O-RING
|
|
8
|
|
| 17 |
4750566
|
CAMSHAFT BEARING
|
|
1
|
|
| 18 |
4699804
|
CAMSHAFT BEARING
|
|
1
|
|
| 19 |
4677736
|
CAMSHAFT BEARING
|
|
1
|
|
| 20 |
4699803
|
CAMSHAFT BEARING
|
|
1
|
|
| 21 |
4750565
|
CAMSHAFT BEARING
|
|
1
|
|
| 22 |
10839610
|
DOWEL PIN
|
|
2
|
|
| 23 |
4695041
|
THREADED UNION
|
|
1
|
|
| 24 |
14325501
|
LOCK PLUG
|
|
3
|
|
|
14325511 |
LOCK PLUG |
|
3 |
|
| 29 |
4672742
|
CENTERING RING
|
|
1
|
|
| 30 |
4720130
|
CENTERING RING
|
|
1
|
|
| 31 |
10838001
|
DOWEL PIN
|
|
2
|
|
|
10838010 |
DOWEL PIN |
|
2 |
|
| 32 |
4803348
|
OIL NOZZLE
|
|
8
|
|
| 33 |
10837210
|
DOWEL PIN
|
|
1
|
|
| 34 |
4693650
|
SCREW CONNECTOR
|
|
8
|
|
| 35 |
4700613
|
GASKET
|
|
16
|
|
| 36 |
13516621
|
STUD
|
|
8
|
|
| 37 |
4863514
|
FLAT ENGINE GASKET
|
|
4
|
|
| 38 |
4679052
|
COVER
|
|
4
|
|
| 39 |
17793814
|
WASHER
|
|
8
|
|
| 40 |
17157021
|
NUT
|
|
8
|
|
|
17157025 |
NUT |
|
8 |
|
| 41 |
500341556
|
CYLINDER LINER
|
|
8
|
|
|
2991787 |
CYLINDER LINER |
|
8 |
|
| 42 |
99443709
|
O-RING
|
|
8
|
|
| 43 |
4686542
|
SUPPORT
|
|
1
|
|
| 44 |
4797231
|
SUPPORT
|
|
1
|
|
| 45 |
4686762
|
HEXAGON BOLT
|
|
1
|
|
| 48 |
14328201
|
LOCK PLUG
|
|
2
|
|
| 49 |
500341628
|
O-RING
|
|
8
|
|
