| 1 |
99441808
|

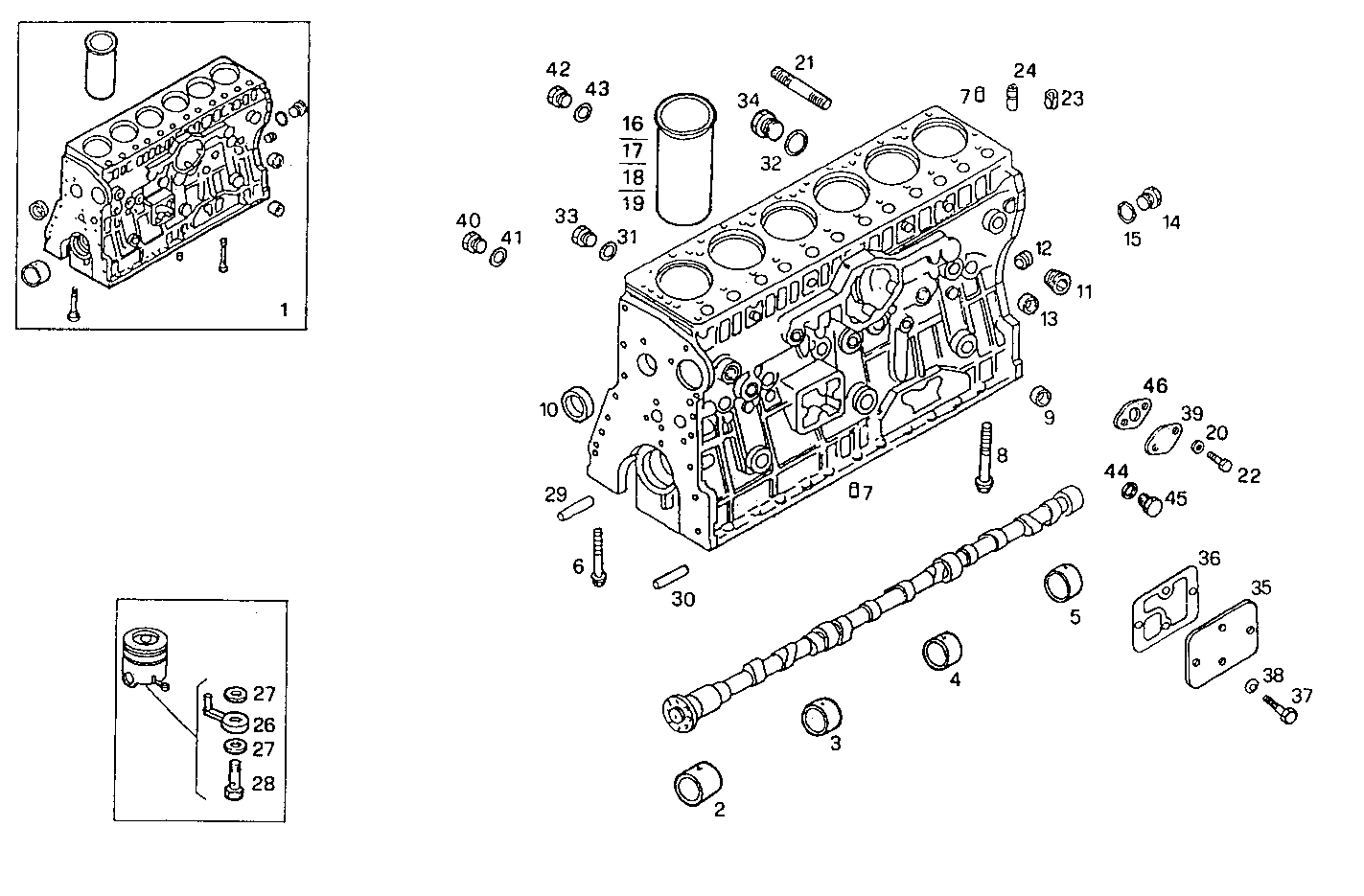

CRANKCASE
|
|
1
|
|
| 2 |
4668570
|
CAMSHAFT BEARING
|
|
1
|
|
| 3 |
4668063
|
CAMSHAFT BEARING
|
|
1
|
|
| 4 |
4668064
|
CAMSHAFT BEARING
|
|
1
|
|
| 5 |
4668571
|
CAMSHAFT BEARING
|
|
1
|
|
| 6 |
4827152
|
CRAHKSFT.BEAR.STUD
|
|
2
|
|
| 7 |
851425
|
DOWEL PIN
|
|
2
|
|
| 8 |
4769168
|
CRAHKSFT.BEAR.STUD
|
|
12
|
|
| 9 |
14326150
|
LOCK PLUG
|
|
4
|
|
| 10 |
14283370
|
LOCK PLUG
|
|
2
|
|
| 11 |
16997411
|
THREADED PLUG
|
|
1
|
|
|
7177194 |
THREADED PLUG |
|
1 |
|
| 12 |
14325501
|
LOCK PLUG
|
|
1
|
|
|
14325511 |
LOCK PLUG |
|
1 |
|
| 13 |
16991170
|
LOCK PLUG
|
|
22
|
|
| 14 |
16993511
|
LOCK PLUG
|
|
1
|
|
| 15 |
10296260
|
SEAL GASKET
|
|
1
|
|
| 16 |
99468534
|
CYLINDER LINER
|
|
6
|
|
| 17 |
99468538
|
CYLINDER LINER
|
|
6
|
|
| 18 |
99468535
|
CYLINDER LINER
|
|
6
|
|
| 19 |
99468541
|
CYLINDER LINER
|
|
6
|
|
| 20 |
11198374
|
SPRING WASHER
|
|
2
|
|
|
17090274 |
SPRING WASHER |
|
2 |
|
| 21 |
16729324
|
STUD
|
|
2
|
|
| 22 |
15970524
|
HEXAGON BOLT
|
|
2
|
|
| 23 |
4663640
|
DOWEL PIN
|
|
2
|
|
| 24 |
4502626
|
DOWEL PIN
|
|
2
|
|
| 26 |
4833421
|
OIL NOZZLE
|
|
6
|
|
| 27 |
4700613
|
GASKET
|
|
12
|
|
| 28 |
4775503
|
SCREW CONNECTOR
|
|
6
|
|
| 29 |
10837810
|
DOWEL PIN
|
|
3
|
|
| 30 |
4533969
|
DOWEL PIN
|
|
1
|
|
| 31 |
4858608
|
SEAL GASKET
|
|
2
|
|
| 32 |
10265460
|
SEAL GASKET
|
|
1
|
|
| 33 |
10300611
|
LOCK PLUG
|
|
2
|
|
|
16992315 |
LOCK PLUG |
|
2 |
|
| 34 |
4665029
|
LOCK PLUG
|
|
1
|
|
| 35 |
4638507
|
COVER
|
|
1
|
|
| 36 |
4863963
|
FLAT ENGINE GASKET
|
|
1
|
|
| 37 |
16605624
|
HEXAGON BOLT
|
|
4
|
|
|
16605635 |
HEXAGON BOLT |
|
4 |
|
| 38 |
17089474
|
SPRING WASHER
|
|
4
|
|
| 39 |
4785274
|
FLANGE
|
|
1
|
|
| 40 |
16992311
|
LOCK PLUG
|
|
1
|
|
|
16992315 |
LOCK PLUG |
|
1 |
|
| 41 |
4858608
|
SEAL GASKET
|
|
1
|
|
| 42 |
10300911
|
PLUG
|
|
2
|
|
| 43 |
4858605
|
WASHER
|
|
2
|
|
| 44 |
4858607
|
WASHER
|
|
1
|
|
| 45 |
16992211
|
THREADED PLUG
|
|
1
|
|
| 46 |
4863966
|
FLAT ENGINE GASKET
|
|
1
|
|
