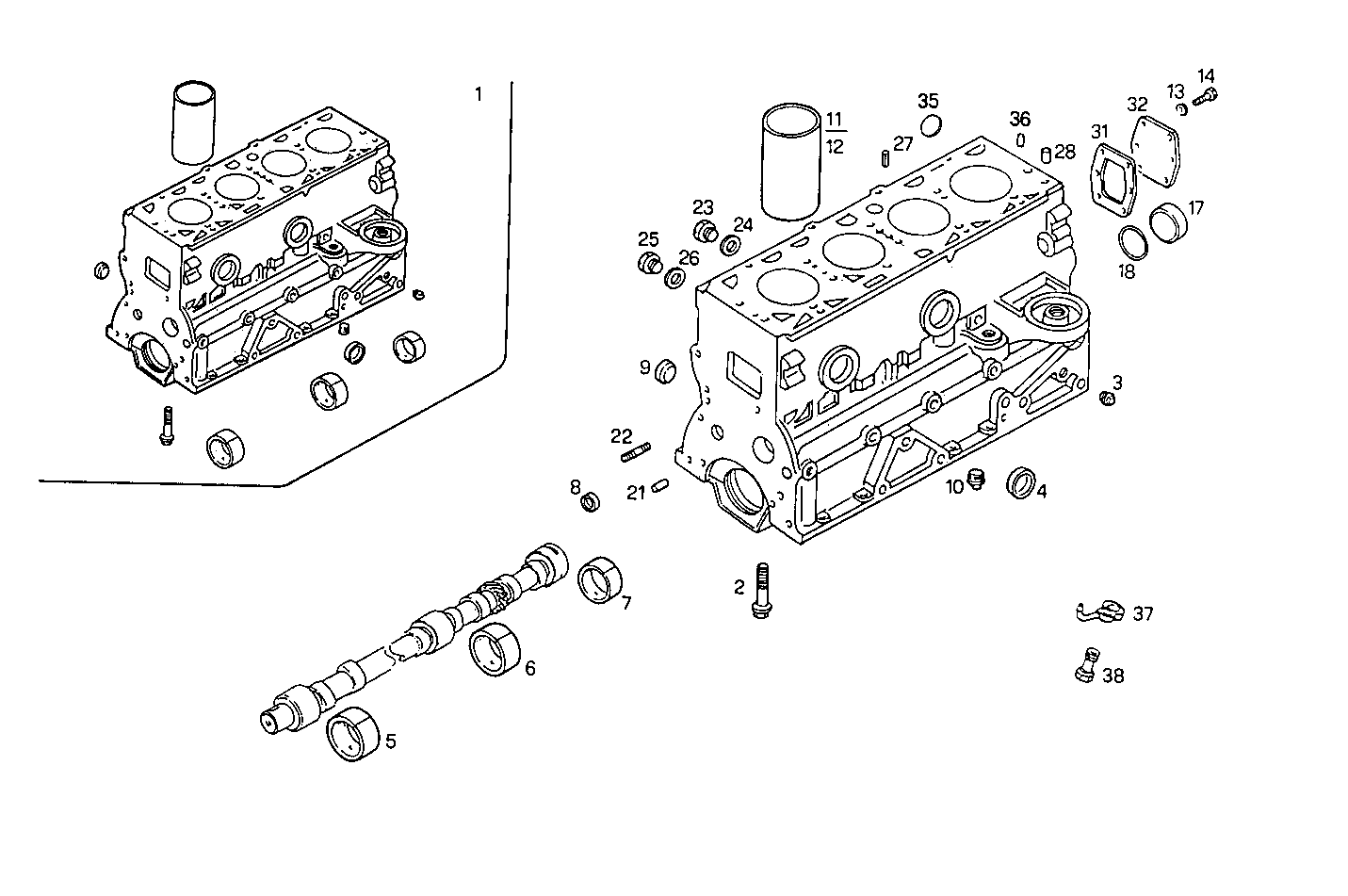

| 1 |
98427099
|
CRANKCASE
|
|
1
|
|
| 2 |
4792169
|
SCREW
|
|
10
|
|
| 3 |
99434231
|
THREADED PLUG
|
|
4
|
|
| 4 |
14329901
|
LOCK PLUG
|
|
1
|
|
| 5 |
4603449
|
CAMSHAFT BEARING
|
|
1
|
|
|
4718618 |
CAMSHAFT BEARING |
|
1 |
|
| 6 |
4603450
|
CAMSHAFT BEARING
|
|
1
|
|
|
4718619 |
CAMSHAFT BEARING |
|
1 |
|
| 7 |
4603451
|
CAMSHAFT BEARING
|
|
1
|
|
|
4718620 |
CAMSHAFT BEARING |
|
1 |
|
| 8 |
14328501
|
LOCK PLUG
|
|
5
|
|
|
16988101 |
LOCK PLUG |
|
5 |
|
| 9 |
14282770
|
LOCK PLUG
|
|
4
|
|
|
16991170 |
LOCK PLUG |
|
4 |
|
| 10 |
16997411
|
THREADED PLUG
|
|
1
|
|
|
7177194 |
THREADED PLUG |
|
1 |
|
| 11 |
4770623
|
CYLINDER LINER
|
|
4
|
|
|
2995550 |
CYLINDER LINER |
|
4 |
|
| 12 |
4770624
|
CYLINDERLINER +0.2
|
|
4
|
|
| 13 |
17089474
|
SPRING WASHER
|
|
6
|
|
| 14 |
16043324
|
HEXAGON BOLT
|
|
6
|
|
| 17 |
98412737
|
LOCK PLUG
|
|
1
|
|
| 18 |
17284481
|
O-RING
|
|
1
|
|
| 21 |
17275410
|
DOWEL PIN
|
|
2
|
|
| 22 |
16730124
|
STUD
|
|
1
|
|
| 23 |
4665029
|
LOCK PLUG
|
|
1
|
|
| 24 |
10265460
|
SEAL GASKET
|
|
1
|
|
| 25 |
10300511
|
LOCK PLUG
|
|
1
|
|
| 26 |
10298460
|
SEAL GASKET
|
|
1
|
|
| 27 |
17254970
|
DOWEL PIN
|
|
1
|
|
| 28 |
4846850
|
DOWEL PIN
|
|
2
|
|
| 31 |
99445564
|
FLAT ENGINE GASKET
|
|
1
|
|
| 32 |
4653282
|
REAR C.CASE COVER
|
|
1
|
|
| 35 |
14327401
|
PLUG
|
|
1
|
|
| 36 |
98437425
|
DOWEL PIN
|
|
1
|
|
| 37 |
98475474
|
OIL NOZZLE
|
|
4
|
|
| 38 |
98475228
|
SCREW CONNECTOR
|
|
4
|
|
