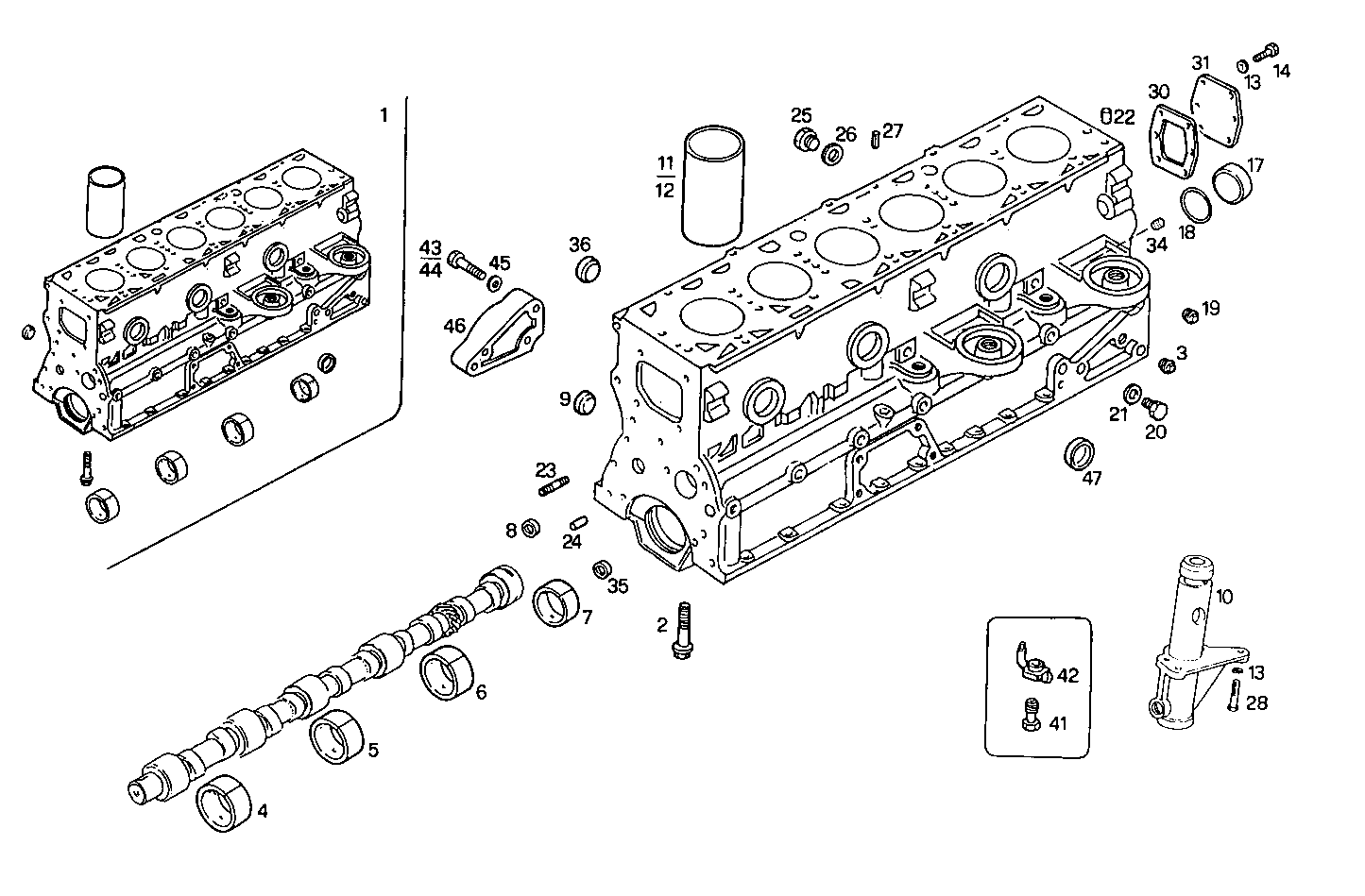

| 1 |
500302558
|
CRANKCASE
|
|
1
|
|
| 2 |
4792169
|
SCREW
|
|
14
|
|
| 3 |
99434231
|
THREADED PLUG
|
|
1
|
|
| 4 |
4603448
|
CAMSHAFT BEARING
|
|
1
|
|
|
4718621 |
CAMSHAFT BEARING |
|
1 |
|
| 5 |
4603449
|
CAMSHAFT BEARING
|
|
1
|
|
|
4718618 |
CAMSHAFT BEARING |
|
1 |
|
| 6 |
4603450
|
CAMSHAFT BEARING
|
|
1
|
|
|
4718619 |
CAMSHAFT BEARING |
|
1 |
|
| 7 |
4603451
|
CAMSHAFT BEARING
|
|
1
|
|
|
4718620 |
CAMSHAFT BEARING |
|
1 |
|
| 8 |
14328201
|
LOCK PLUG
|
|
1
|
|
| 9 |
16991170
|
LOCK PLUG
|
|
6
|
|
| 10 |
500301680
|
SUPPORT
|
|
1
|
|
| 11 |
4803030
|
CYLINDER LINER
|
|
6
|
|
|
2995665 |
CYLINDER LINER |
|
6 |
|
| 12 |
4803031
|
CYLINDERLINER +0.2
|
|
6
|
|
| 13 |
17089474
|
SPRING WASHER
|
|
8
|
|
| 14 |
16043324
|
HEXAGON BOLT
|
|
6
|
|
| 17 |
98412737
|
LOCK PLUG
|
|
1
|
|
| 18 |
17284481
|
O-RING
|
|
1
|
|
| 19 |
99434232
|
THREADED PLUG
|
|
1
|
|
| 20 |
16992211
|
THREADED PLUG
|
|
1
|
|
| 21 |
10298460
|
SEAL GASKET
|
|
1
|
|
| 22 |
4846850
|
DOWEL PIN
|
|
1
|
|
| 23 |
16730124
|
STUD
|
|
1
|
|
| 24 |
17275410
|
DOWEL PIN
|
|
2
|
|
| 25 |
4665029
|
LOCK PLUG
|
|
1
|
|
| 26 |
10265460
|
SEAL GASKET
|
|
1
|
|
| 27 |
17254970
|
DOWEL PIN
|
|
1
|
|
| 28 |
16605624
|
HEXAGON BOLT
|
|
2
|
|
|
16605635 |
HEXAGON BOLT |
|
2 |
|
| 30 |
99445564
|
FLAT ENGINE GASKET
|
|
1
|
|
| 31 |
500320267
|
COVER
|
|
1
|
|
|
4653282 |
COVER |
|
1 |
|
| 34 |
4782452
|
DOWEL PIN
|
|
2
|
|
| 35 |
16988101
|
LOCK PLUG
|
|
2
|
|
| 36 |
14327401
|
PLUG
|
|
1
|
|
| 41 |
98475228
|
SCREW CONNECTOR
|
|
6
|
|
| 42 |
98475474
|
OIL NOZZLE
|
|
6
|
|
| 43 |
16610724
|
SCREW
|
|
2
|
|
| 44 |
15541824
|
SCREW
|
|
2
|
|
| 45 |
17095304
|
WASHER
|
|
4
|
|
| 46 |
4853971
|
BRACKET
|
|
1
|
|
| 47 |
14329901
|
LOCK PLUG
|
|
3
|
|
