| 1 |
99477104
|

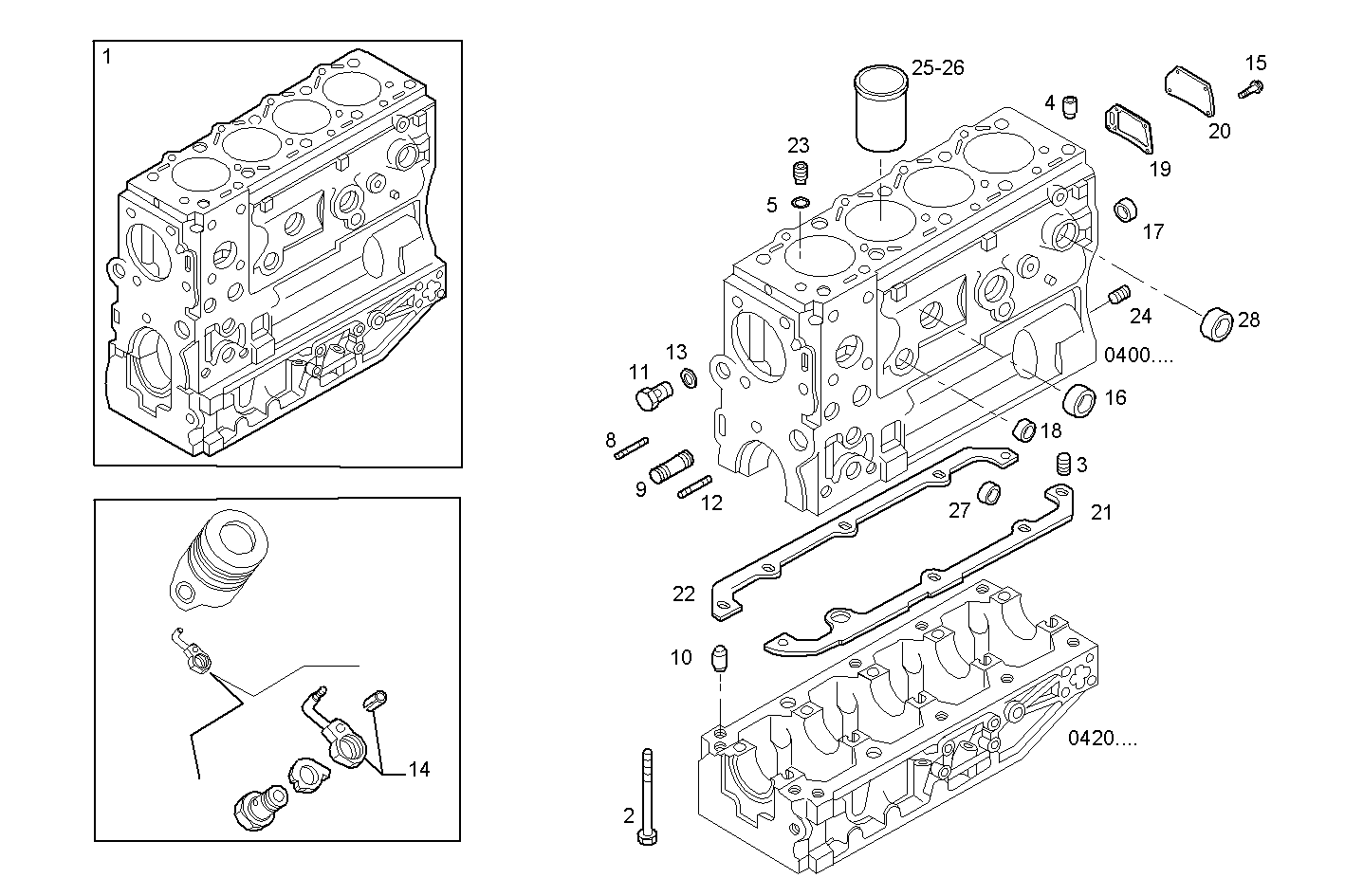

CRANKCASE
|
|
1
|
|
| 2 |
4792169
|
SCREW
|
|
10
|
|
| 3 |
4724790
|
DOWEL PIN
|
|
2
|
|
| 4 |
98418754
|
DOWEL PIN
|
|
1
|
|
| 5 |
17277981
|
O-RING
|
|
1
|
|
| 6 |
7302421
|
SCREW CONNECTOR
|
|
4
|
|
| 7 |
7302007
|
STOP PLATE
|
|
4
|
|
| 8 |
13518021
|
STUD
|
|
1
|
|
| 9 |
7300719
|
THREADED UNION
|
|
1
|
|
| 10 |
4279387
|
CENTERING RING
|
|
1
|
|
| 11 |
7303457
|
THREADED PLUG
|
|
1
|
|
|
504072562 |
THREADED PLUG |
|
1 |
|
| 12 |
7300579
|
STUD
|
|
1
|
|
| 13 |
16508360
|
WASHER
|
|
1
|
|
| 14 |
504032242
|
OIL NOZZLE
|
|
4
|
|
| 15 |
18138324
|
CYLIND-HEAD SCREW
|
|
4
|
|
|
18138325 |
CYLIND-HEAD SCREW |
|
4 |
|
| 16 |
14282870
|
LOCK PLUG
|
|
5
|
|
| 17 |
7301976
|
PLUG
|
|
2
|
|
| 18 |
14328901
|
LOCK PLUG
|
|
1
|
|
| 19 |
500329970
|
FLAT ENGINE GASKET
|
|
1
|
|
| 20 |
98471295
|
COVER
|
|
1
|
|
| 21 |
99432807
|
FLAT ENGINE GASKET
|
|
1
|
|
| 22 |
99432808
|
FLAT ENGINE GASKET
|
|
1
|
|
| 23 |
98418753
|
DOWEL PIN
|
|
1
|
|
| 24 |
7300019
|
DOWEL PIN
|
|
2
|
|
| 25 |
99435938
|
CYLINDER LINER
|
|
4
|
|
| 26 |
99443784
|
CYLINDERLINER +0.2
|
|
4
|
|
| 27 |
14329001
|
LOCK PLUG
|
|
1
|
|
| 28 |
14329501
|
PLUG
|
|
1
|
|
