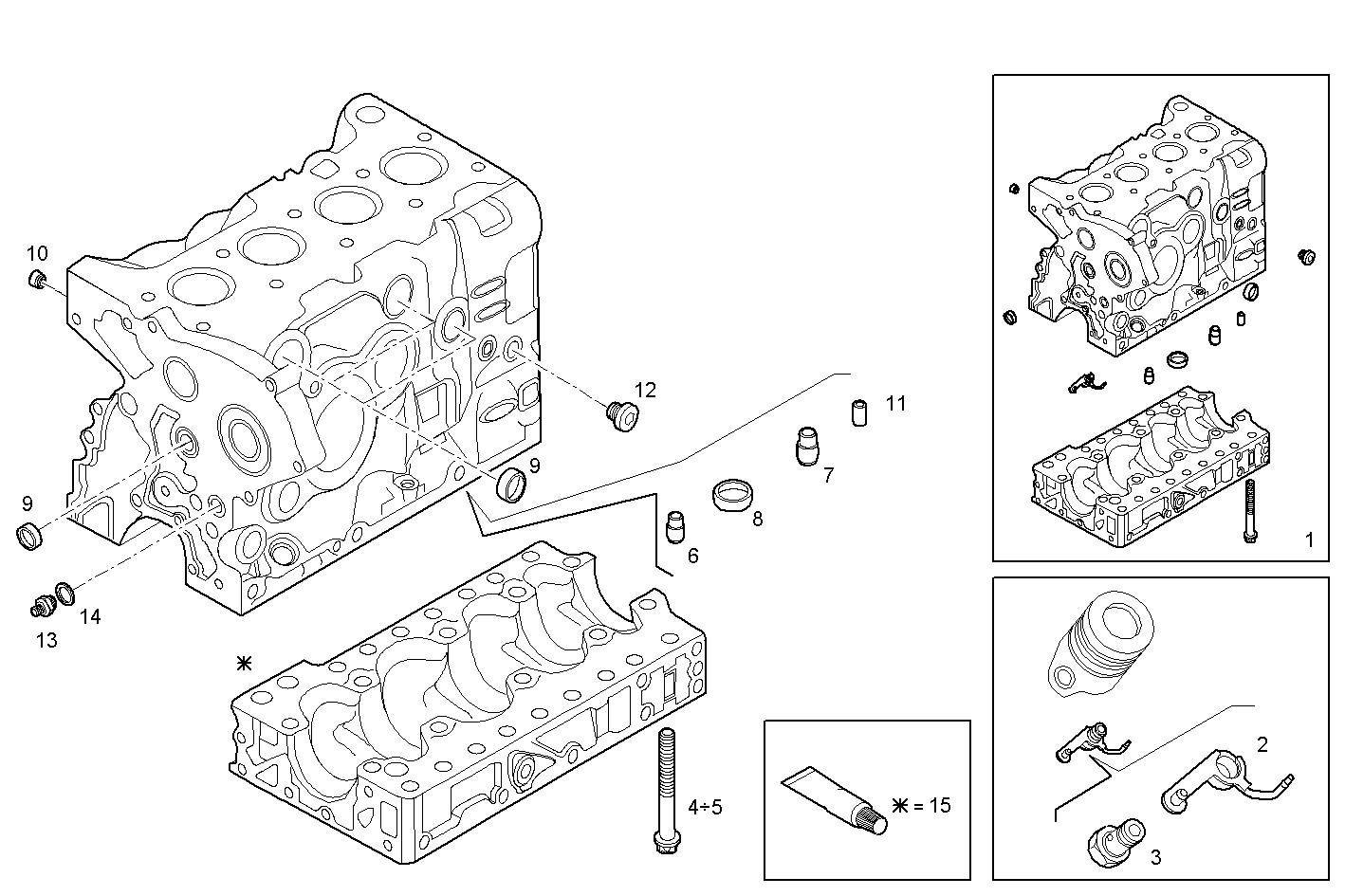

CRANKCASE
Assembly ID: 0400.194
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504049279 | CRANKCASE | 1 | ||
| 2 | 504039888 | OIL NOZZLE | 4 | ||
| 3 | 500370623 | SCREW CONNECTOR | 4 | ||
| 4 | 500373969 | SCREW | 10 | ||
| 5 | 504015885 | SCREW | 18 | ||
| 6 | 504014642 | DOWEL PIN | 1 | ||
| 7 | 504014645 | DOWEL PIN | 3 | ||
| 8 | 16988501 | LOCK PLUG | 3 | ||
| 9 | 16988601 | LOCK PLUG | 6 | ||
| 10 | 504051238 | THREADED PLUG | 4 | ||
| 11 | 99445814 | DOWEL PIN | 2 | ||
| 12 | 504016052 | LOCK PLUG | 1 | ||
| 13 | 504033691 | THREADED UNION | 1 | ||
| 14 | 11270460 | GASKET | 1 | ||
| 15 | 2992504 | ADHESIVE/STICKER | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F1AE0481A*A002 - C | SOFIM HPI 2.3L - EURO 3 | view |
| F1AE0481B*A002 - C | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC20.10A004 | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC24.10A006 - C | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC24.10A008 - C | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC20.10A005 | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC20.10A006 | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC20.10A007 | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC24.10A005 | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC24.10A007 | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC24.10A009 | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC24.10A010 | SOFIM HPI 2.3L - EURO 3 | view |
