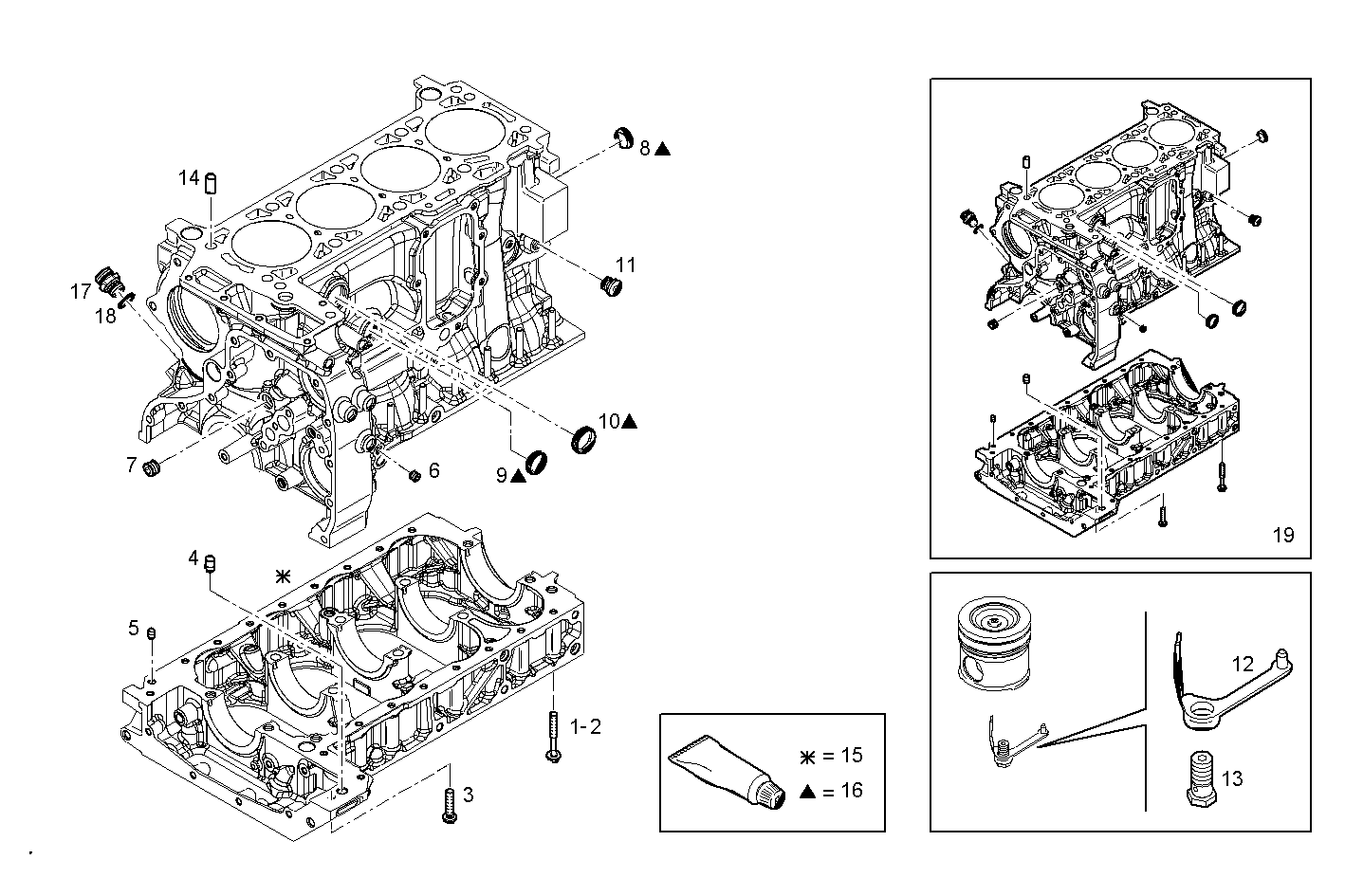

CRANKCASE
Assembly ID: 0401.001
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504015231 | SCREW | 10 | ||
| 2 | 504015885 | SCREW | 17 | ||
| 3 | 504052085 | SCREW | 2 | ||
| 4 | 504014645 | DOWEL PIN | 2 | ||
| 5 | 504014642 | DOWEL PIN | 1 | ||
| 6 | 504051236 | THREADED PLUG | 2 | ||
| 7 | 504051238 | THREADED PLUG | 2 | ||
| 8 | 16988501 | LOCK PLUG | 2 | ||
| 9 | 16988601 | LOCK PLUG | 6 | ||
| 10 | 16988801 | LOCK PLUG | 1 | ||
| 11 | 504016052 | LOCK PLUG | 1 | ||
| 12 | 504018713 | OIL NOZZLE | 4 | ||
| 13 | 500370623 | SCREW CONNECTOR | 4 | ||
| 14 | 99445814 | DOWEL PIN | 2 | ||
| 15 | 2992504 | ADHESIVE/STICKER | 1 | ||
| 16 | 2992695 | ADHESIVE/STICKER | 1 | ||
| 17 | 504033691 | THREADED UNION | 1 | ||
| 18 | 11270460 | GASKET | 1 | ||
| 19 | 504110623 | CRANKCASE | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F1CE0481B*A001 | SOFIM HPI 3.0L - EURO 3 | view |
| F1CE0481F*A001 | SOFIM HPI 3.0L - EURO 4 | view |
| S30ENT422.10P002 | SOFIM HPI 3.0L - EURO 4 | view |
| F1CE0487K*C502 | SOFIM HPI 3.0L - EURO 4 | view |
| S30ENT422.80A001 | SOFIM HPI 3.0L - EURO 4 | view |
| S30ENT422.80A002 | SOFIM HPI 3.0L - EURO 4 | view |
| S30ENT422.80A003 | SOFIM HPI 3.0L - EURO 4 | view |
| F1CE0441A*A003 | SOFIM HPI 3.0L CNG | view |
| S30ENTG20.00A002 | SOFIM HPI 3.0L CNG | view |
| F1CE0481F*C001 | SOFIM HPI 3.0L - EURO 4 | view |
| S30ENT422.30A001 | SOFIM HPI 3.0L - EURO 4 | view |
| F1CE0481H*C003 | SOFIM HPI 3.0L - EURO 4 | view |
| S30ENT425.10A001 | SOFIM HPI 3.0L - EURO 4 | view |
| F1CE0481F*A002 | SOFIM HPI 3.0L - EURO 4 | view |
| S30ENT422.11A001 | SOFIM HPI 3.0L - EURO 4 | view |
| F1CE0481L*A003 | SOFIM HPI 3.0L - EURO 4 | view |
| S30ENTC24.00L008 | SOFIM HPI 3.0L - EURO 4 | view |
| F1CE0481F*A003 | SOFIM HPI 3.0L - EURO 4 | view |
