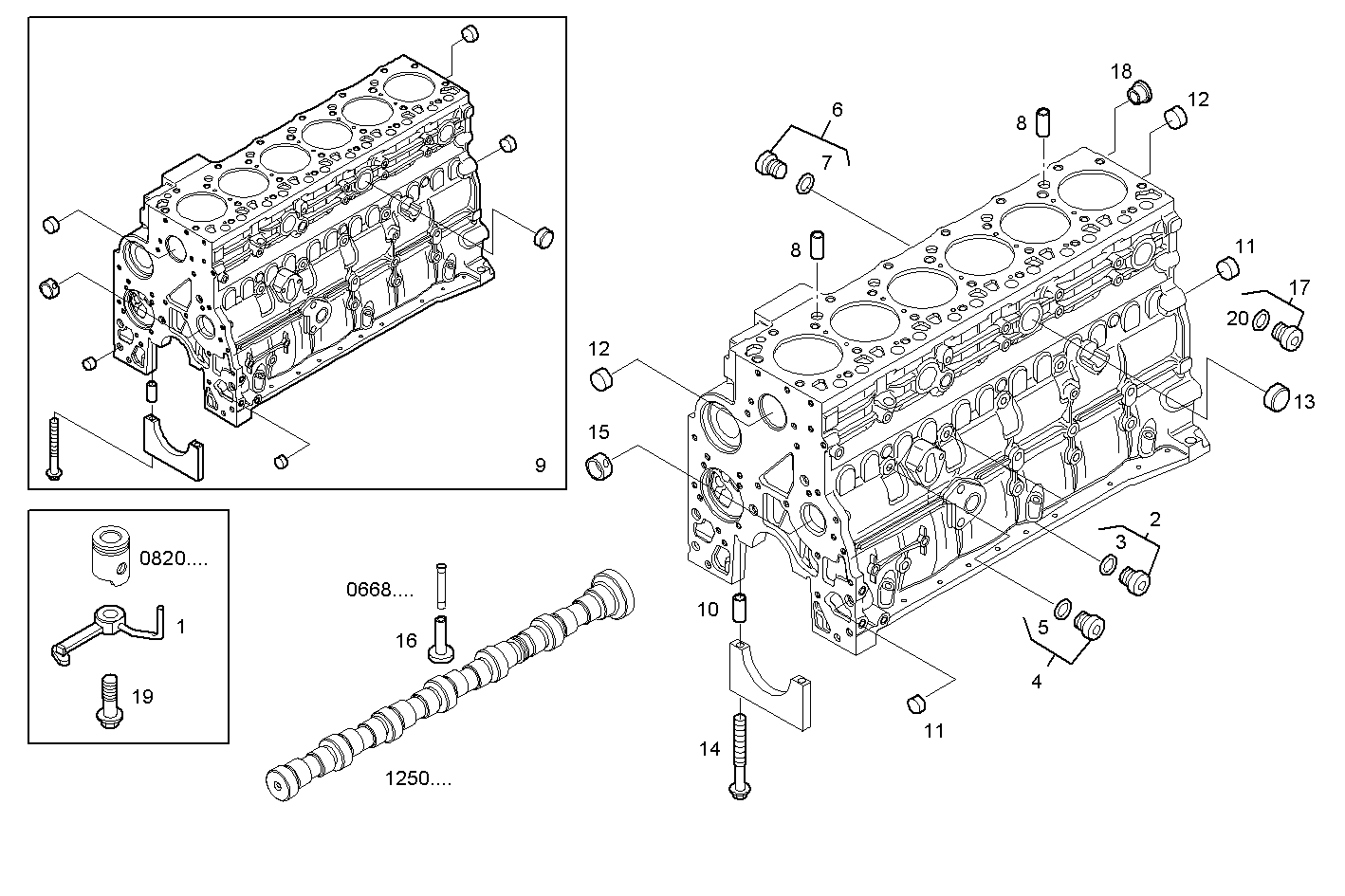

CRANKCASE
Assembly ID: 0401.030
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504054307 | OIL NOZZLE | 6 | ||
| 2 | 4895605 | PLUG | 1 | ||
| 3 | 4899115 | O-RING | 1 | ||
| 4 | 4899009 | THREADED PLUG | 3 | ||
| 5 | 4899072 | O-RING | 3 | ||
| 6 | 4895392 | THREADED PLUG | 3 | ||
| 7 | 4895393 | O-RING | 3 | ||
| 8 | 4895049 | DOWEL PIN | 2 | ||
| 9 | 2831313 | CRANKCASE | 1 | ||
| 10 | 4899026 | DOWEL PIN | 14 | ||
| 11 | 4895039 | PLUG | 2 | ||
| 12 | 4895038 | PLUG | 6 | ||
| 13 | 4895228 | PLUG | 3 | ||
| 14 | 4891353 | HEXAGON BOLT | 14 | ||
| 15 | 4895040 | CAMSHAFT BEARING | 1 | ||
| 16 | 4895180 | TAPPET | 12 | ||
| 17 | 4895623 | THREADED PLUG | 1 | ||
| 18 | 2831364 | OIL NOZZLE | 1 | ||
| 19 | 4894218 | SCREW CONNECTOR | 6 | ||
| 20 | 17281681 | O-RING | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F4CE9684K*J604 | NEF 6 mechanic. - TIER 3 | view |
| F4CE9684L*J602 | NEF 6 mechanic. - TIER 3 | view |
| F4CE9684N*J600 | NEF 6 mechanic. - TIER 3 | view |
| F4CE9684J*J604 | NEF 6 mechanic. - TIER 3 | view |
| F4CE9684H*J602 | NEF 6 mechanic. - TIER 3 | view |
