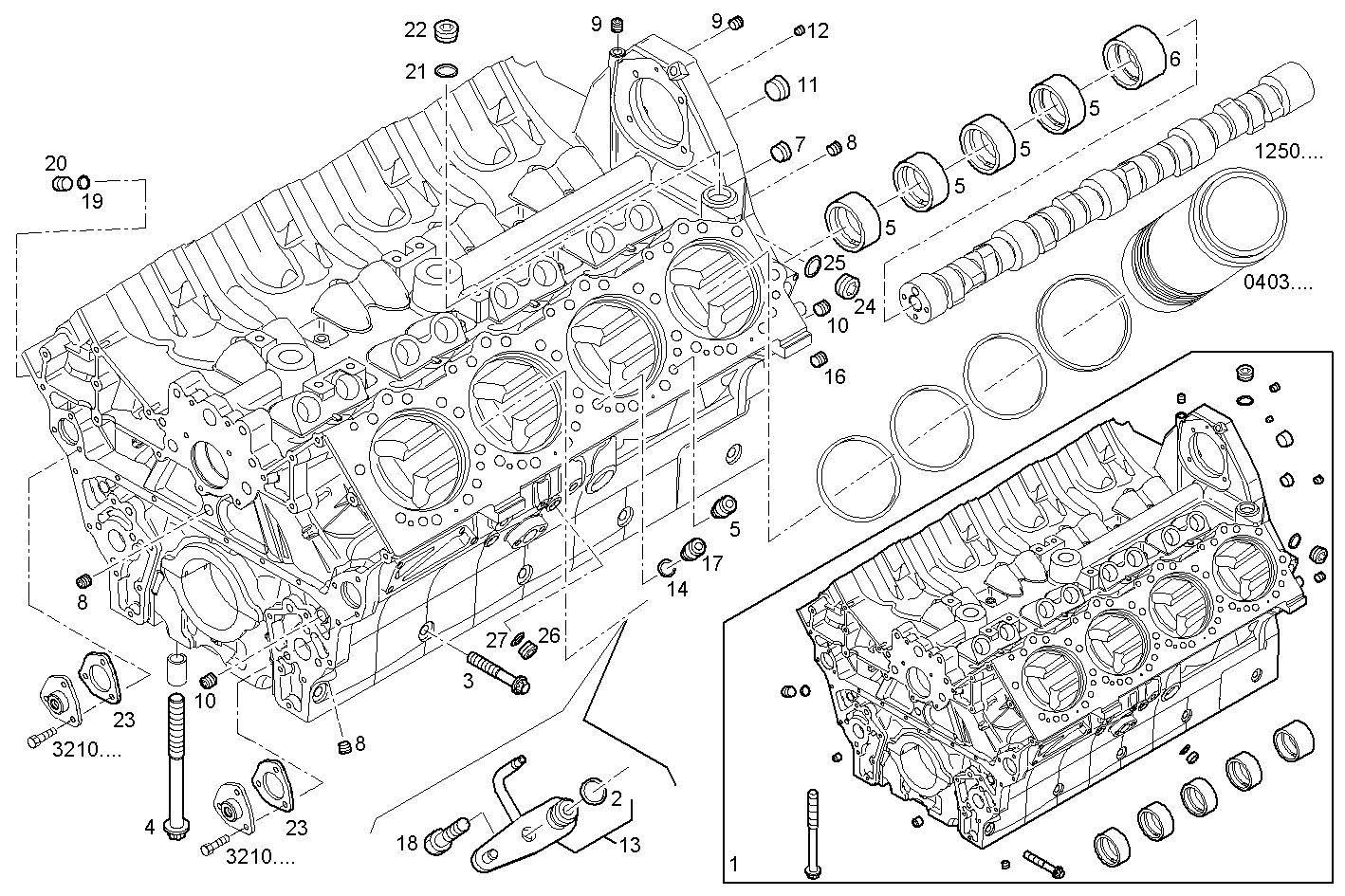

CRANKCASE

Assembly ID: 0401.048

CRANKCASE

Parts

# Part number Description Note Quantity
1 504116336 CRANKCASE 1
2 17278081 O-RING 8
3 504030440 HEXAGON BOLT 10
4 504116246 CRAHKSFT.BEAR.STUD 10
5 504029407 CAMSHAFT BEARING 4
6 504029406 CAMSHAFT BEARING 1
7 98475100 THREADED PLUG 2
8 504051237 THREADED PLUG 4
9 504051236 THREADED PLUG 3
10 504051238 THREADED PLUG 4
11 16995111 THREADED PLUG 1
12 504036758 SCREW 4
13 504034779 OIL NOZZLE 8
14 17277981 O-RING 8
15 17275610 DOWEL PIN 8
16 10838010 DOWEL PIN 2
17 4671990 DOWEL PIN 8
18 16586225 HEXAGON BOLT 8
19 99489020 SEAL GASKET 1
20 16993315 THREADED PLUG 1
21 99469380 SEAL GASKET 1
22 16993715 THREADED PLUG 1
23 504045914 FLAT ENGINE GASKET 2
24 16993715 THREADED PLUG 1
25 99469380 SEAL GASKET 1
26 16993315 THREADED PLUG 1
27 99489020 SEAL GASKET 1

Applies to engines

Engine Family
FVQE2883X*A200 VECTOR 8 view
PPVZ2883X*Q400 POWER PACK view
FVQE2883X*A201 VECTOR 8 view
PPVZ2883X*Q440 POWER PACK view
FVQE2883X*A202 VECTOR 8 view
FVAE2885X*A100 VECTOR 8 view
VECTOR8TE2.A001 VECTOR 8 view
V08ENTM11.10D210 VECTOR 8 view
V08ENTM75.10A210 VECTOR 8 view
V08ENTM75.10B210 VECTOR 8 view
V08ENTM75.10B230 VECTOR 8 view
V08ENTM11.10C210 VECTOR 8 view
V08ENTM11.10P210 VECTOR 8 view
V08ENTM11.10R210 VECTOR 8 view
V08ENTM12.10A210 VECTOR 8 view
V08ENTM12.10B210 VECTOR 8 view
FVAE2884A*B200 VECTOR 8 view
FVAE2884A*B201 VECTOR 8 view
FVAE2884X*B200 VECTOR 8 view
VECTOR8TE2.A002 VECTOR 8 view
GEVECTOR650E.A500 GEVECTOR 8 - TIER 2 view
FVQE2883Z*C200 VECTOR 8 view
