| 1 |
504034507
|

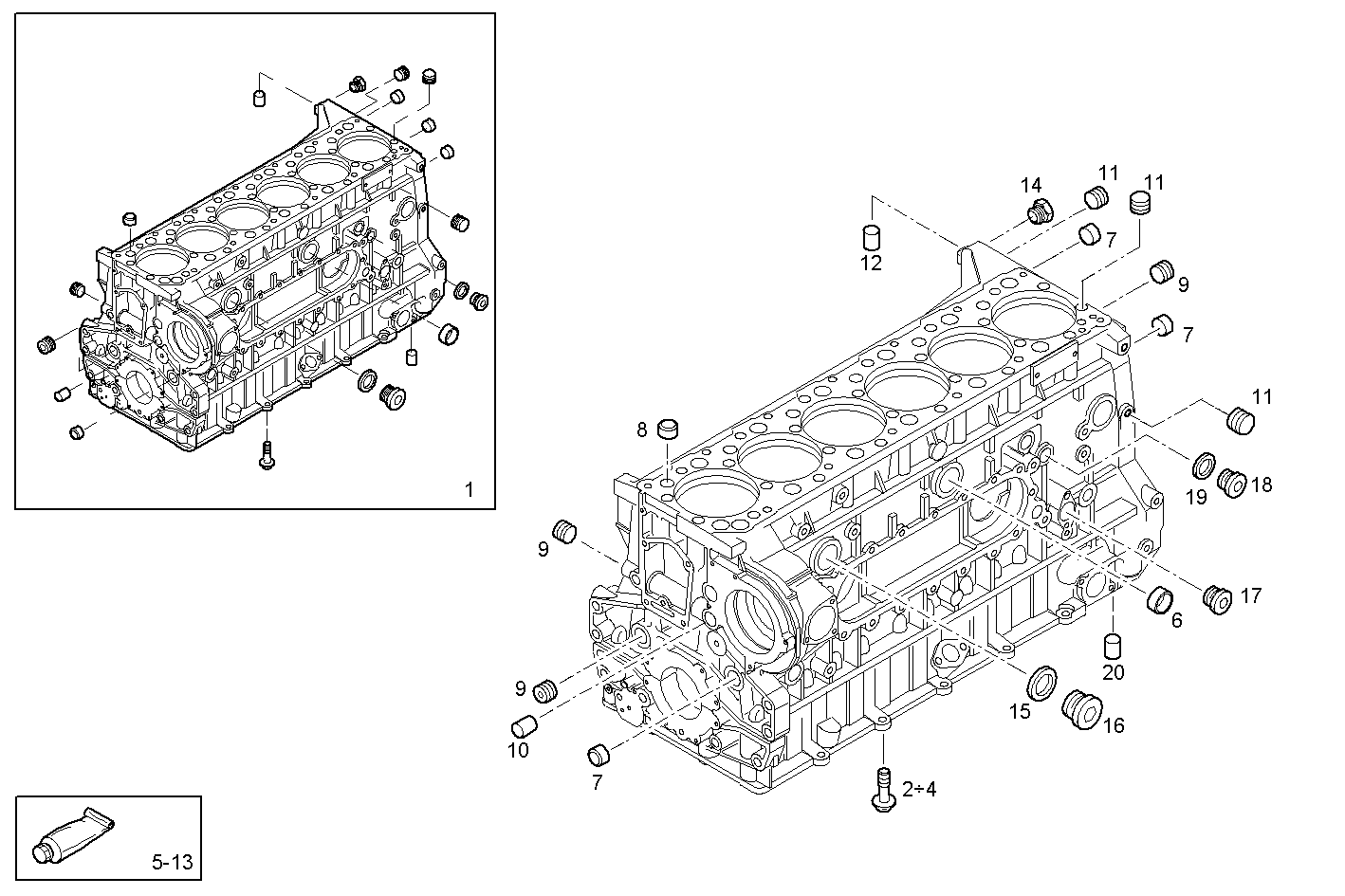

CRANKCASE
|
|
1
|
|
| 2 |
99430335
|
HEXAGON BOLT
|
|
14
|
|
|
504108191 |
HEXAGON BOLT |
|
14 |
|
| 3 |
99432869
|
HEXAGON BOLT
|
|
25
|
|
| 4 |
99433863
|
HEXAGON BOLT
|
|
1
|
|
| 5 |
1903673
|
ADHESIVE/STICKER
|
|
1
|
|
|
2995644 |
ADHESIVE/STICKER |
|
1 |
|
| 6 |
16991370
|
LOCK PLUG
|
|
2
|
|
| 7 |
16990870
|
LOCK PLUG
|
|
3
|
|
| 8 |
16990570
|
LOCK PLUG
|
|
6
|
|
|
14282170 |
LOCK PLUG |
|
6 |
|
| 9 |
98474481
|
THREADED PLUG
|
|
3
|
|
|
504051238 |
THREADED PLUG |
|
3 |
|
| 10 |
98475100
|
THREADED PLUG
|
|
1
|
|
| 11 |
98472271
|
THREADED PLUG
|
|
3
|
|
|
504051237 |
THREADED PLUG |
|
3 |
|
| 12 |
500368916
|
OIL NOZZLE
|
|
1
|
|
| 13 |
93162429
|
ADHESIVE/STICKER
|
|
1
|
|
| 14 |
99433597
|
THREADED PLUG
|
|
3
|
|
| 15 |
99469382
|
SEAL GASKET
|
|
1
|
|
| 16 |
4665029
|
LOCK PLUG
|
|
1
|
|
| 17 |
99430692
|
THREADED PLUG
|
|
1
|
|
| 18 |
16992411
|
THREADED PLUG
|
|
3
|
|
|
16992415 |
THREADED PLUG |
|
3 |
|
| 19 |
99489019
|
WASHER
|
|
3
|
|
|
5801560870 |
WASHER |
|
3 |
|
| 20 |
99467554
|
DOWEL PIN
|
|
4
|
|
