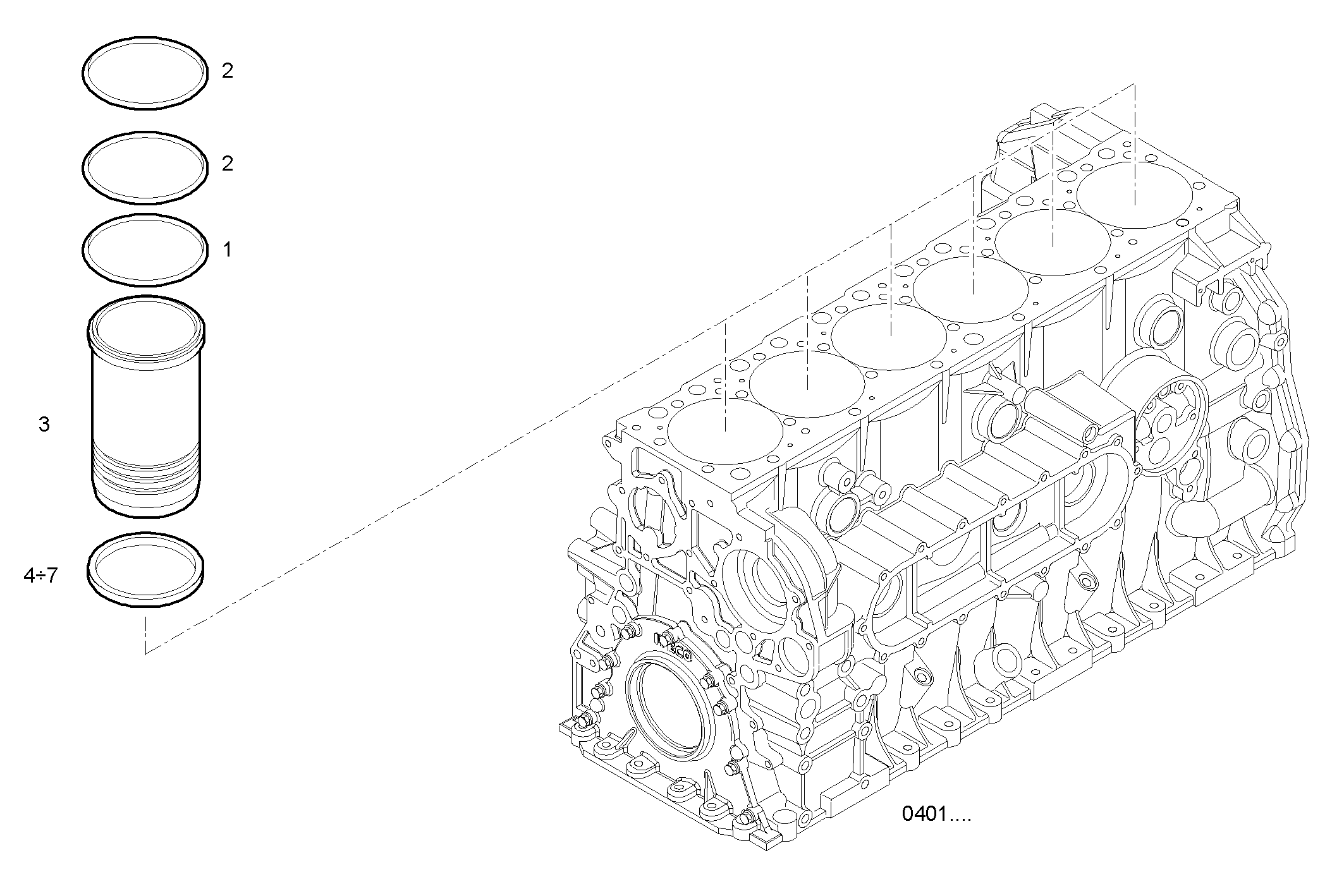

CYLINDER LINER
Assembly ID: 0403.006
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 99455400 | O-RING | 6 | ||
| 2 | 99455401 | O-RING | 12 | ||
| 3 | 504094025 | CYLINDER LINER | 6 | ||
| 4 | 99448193 | SPAC.RING CYL.LIN. | 6 | ||
| 5 | 99448192 | SPAC.RING CYL.LIN. | 6 | ||
| 6 | 99448190 | SPAC.RING CYL.LIN. | 6 | ||
| 7 | 500378983 | SPAC.RING CYL.LIN. | 6 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F3BE9687A*E001 | CURSOR 13 - TIER 3 | view |
| C13ENTX20.00 | CURSOR 13 - TIER 3 | view |
| C13ENTX20.00A800 | CURSOR 13 - TIER 3 | view |
| C13ENTX20.00A801 | CURSOR 13 - TIER 3 | view |
| C13ENTX20.00A802 | CURSOR 13 - TIER 3 | view |
| C13ENTX20.00A005 | CURSOR 13 - TIER 3 | view |
| F3BE3681B*R401 | CURSOR 13 - EURO 4 | view |
| F3BE3681B*R402 | CURSOR 13 - EURO 4 | view |
| F3BE3681B*R403 | CURSOR 13 - EURO 4 | view |
| F3BE3681B*R404 | CURSOR 13 - EURO 4 | view |
