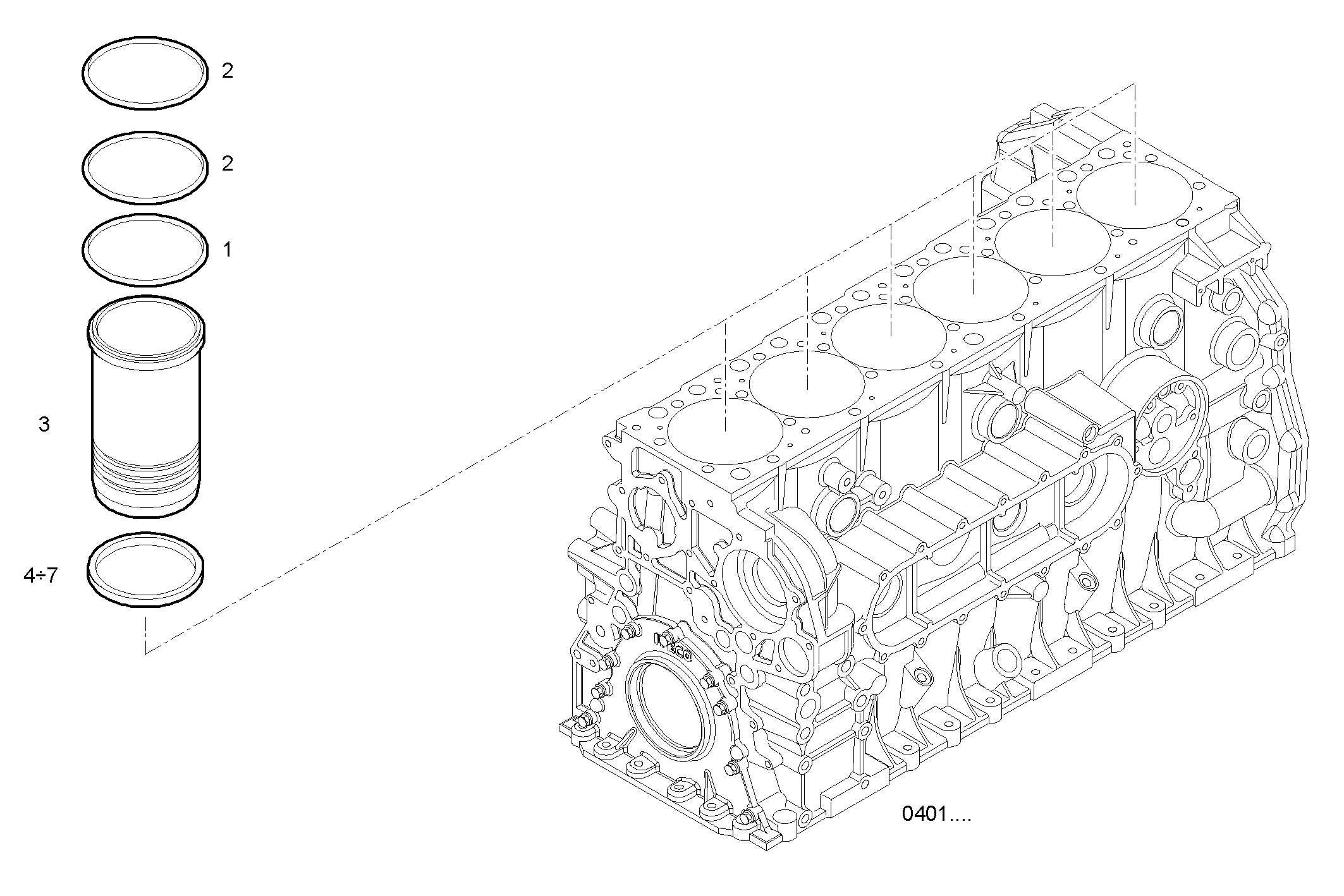

CYLINDER LINER
Assembly ID: 0403.007
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 99459175 | O-RING | 6 | ||
| 2 | 99459176 | O-RING | 12 | ||
| 3 | 504095182 | CYLINDER LINER | 6 | ||
| 4 | 98456128 | SPAC.RING CYL.LIN. | 6 | ||
| 5 | 98456129 | SPAC.RING CYL.LIN. | 6 | ||
| 6 | 98456130 | SPAC.RING CYL.LIN. | 6 | ||
| 7 | 500350504 | SPAC.RING CYL.LIN. | 6 |
Applies to engines
| Engine | Family | |
|---|---|---|
| C78ENTM50.11 | CURSOR 8 | view |
| C78ENTM50.11A001 | CURSOR 8 | view |
| C78ENTM55.10 | CURSOR 8 | view |
| C78ENTM55.10A001 | CURSOR 8 | view |
