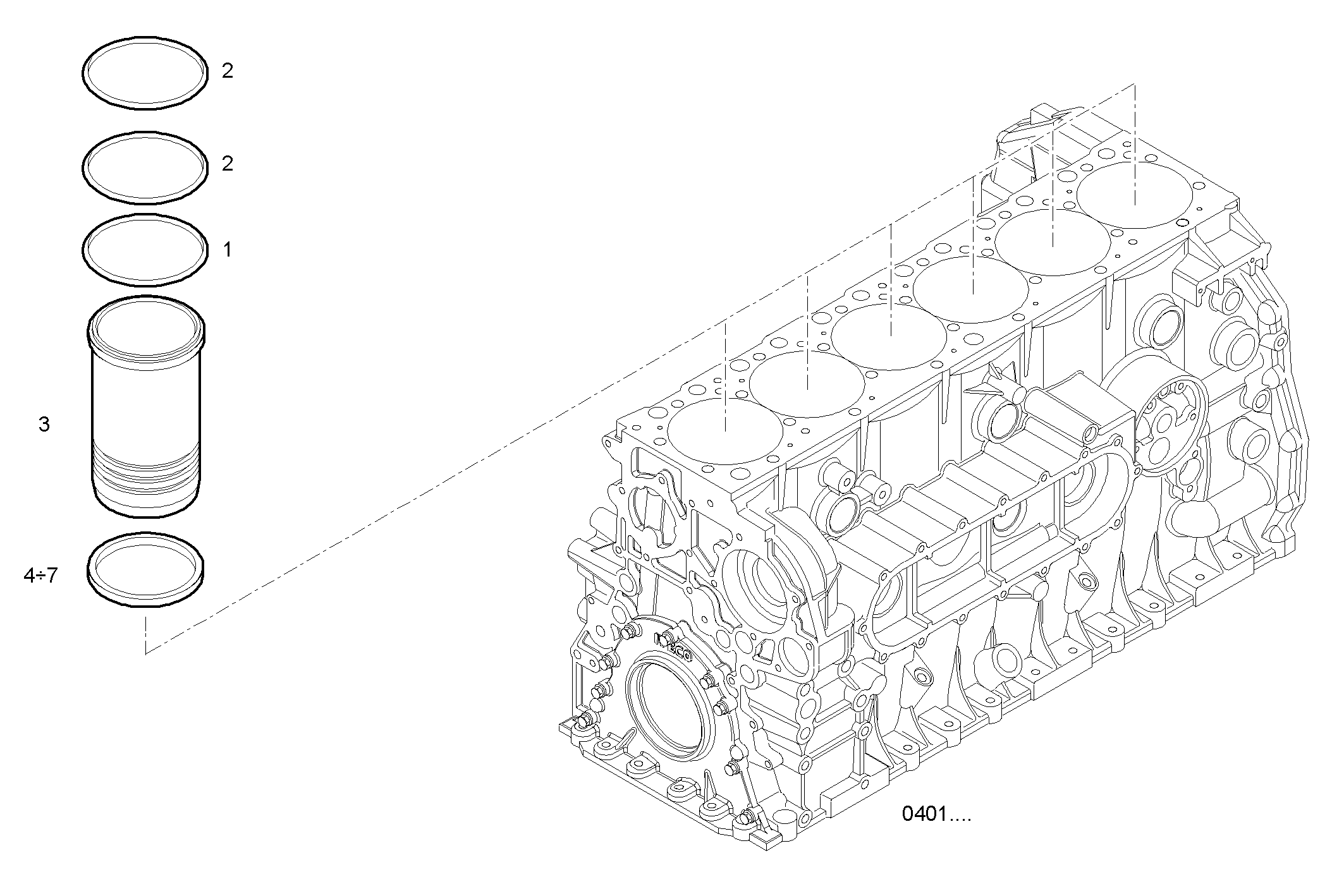

CYLINDER LINER
Assembly ID: 0403.010
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 99455400 | O-RING | 6 | ||
| 2 | 99455401 | O-RING | 12 | ||
| 3 | 500337911 | CYLINDER LINER | 6 | ||
| 4 | 99448193 | SPAC.RING CYL.LIN. | 6 | ||
| 5 | 99448192 | SPAC.RING CYL.LIN. | 6 | ||
| 6 | 99448190 | SPAC.RING CYL.LIN. | 6 | ||
| 7 | 500378983 | SPAC.RING CYL.LIN. | 6 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F3BE0686A*B101 | CURSOR 13 | view |
| C13ENTM83.10 | CURSOR 13 | view |
