FIXING EQUIPMENT
Assembly ID: 0407.001

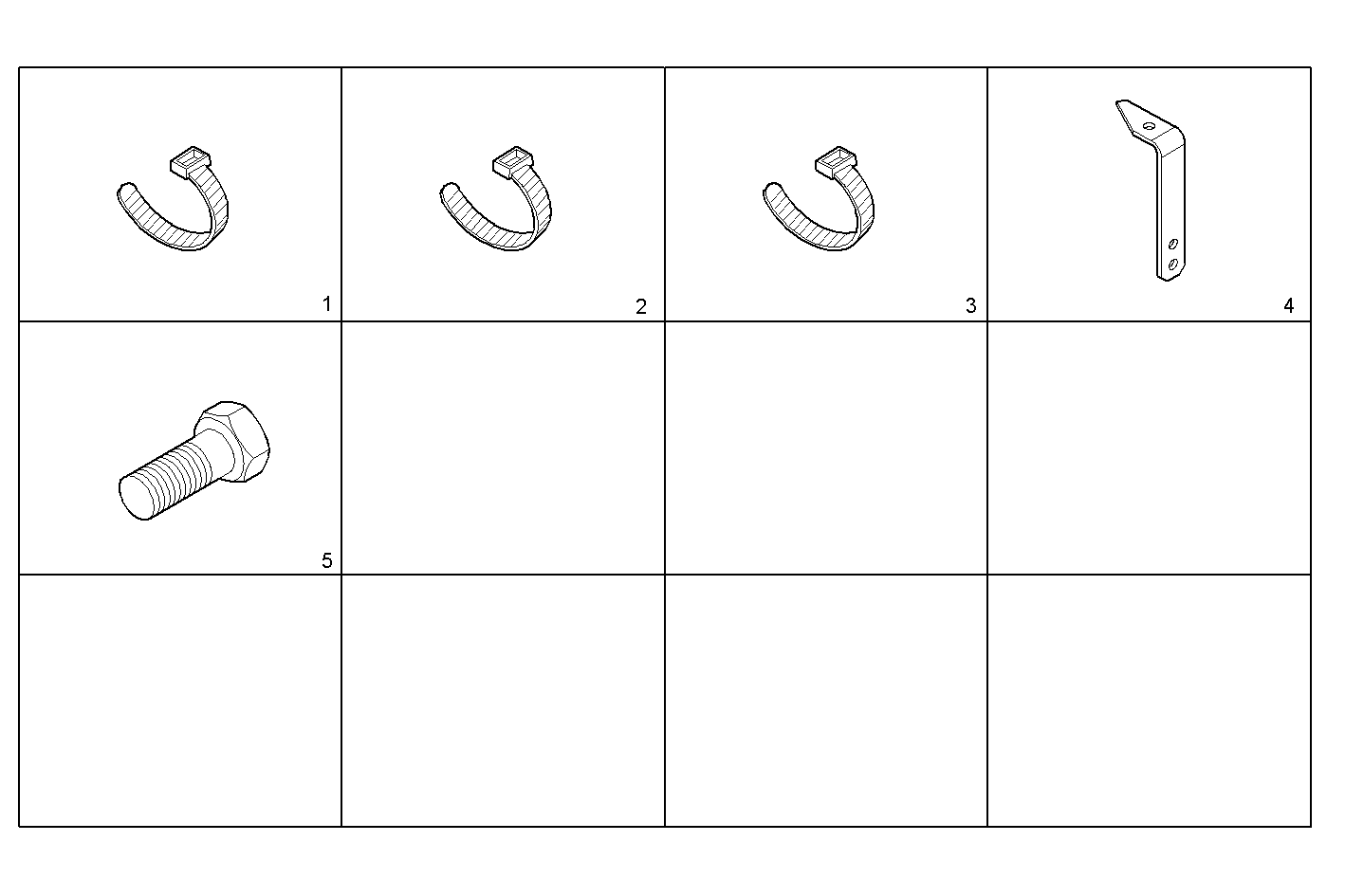

Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 99455033 | CLIP | 6 | ||
| 2 | 42099097 | CABLE STRAP | 1 | ||
| 3 | 41040495 | CLIP | 2 | ||
| 4 | 41207690 | SUPPORT | 1 | ||
| 5 | 16586225 | HEXAGON BOLT | 2 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F2BE0642A*A002 | CURSOR 8 CNG | view |
| F2BE0642A*A003 | CURSOR 8 CNG | view |
| F2BE0642B*A001 | CURSOR 8 CNG | view |
| F2BE0642F*B007 | CURSOR 8 CNG | view |
| F2BE0642A*A009 | CURSOR 8 CNG | view |
| C78ENTG20.00A001 | CURSOR 8 CNG | view |
