FIXING EQUIPMENT
Assembly ID: 0407.011
Parts

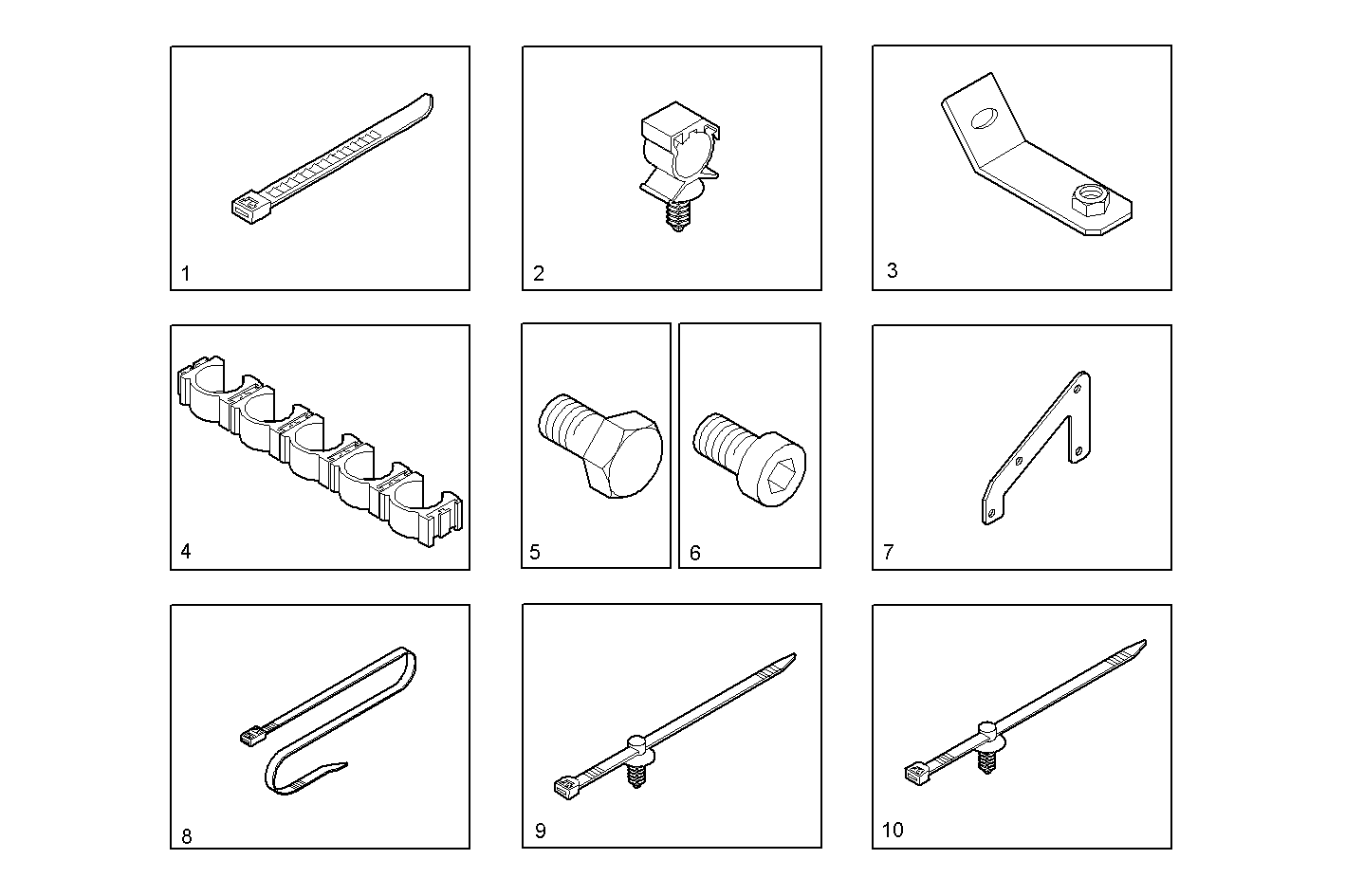

| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 99455033 | CLIP | 1 | ||
| 2 | 504000058 | CLIP | 1 | ||
| 3 | 504060889 | RETAINER | 1 | ||
| 4 | 504060888 | FASTENING BRACKET | 1 | ||
| 5 | 16597925 | HEXAGON BOLT | 1 | ||
| 6 | 16689024 | CYLIND-HEAD SCREW | 2 | ||
| 7 | 504172325 | FASTENING BRACKET | 1 | ||
| 8 | 42099097 | CABLE STRAP | 5 | ||
| 9 | 504023286 | CABLE STRAP | 4 | ||
| 10 | 504099833 | CABLE STRAP | 2 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F2CE0681B*B200 | CURSOR 9 - EURO 3 | view |
| F2CE0681B*B201 | CURSOR 9 - EURO 3 | view |
