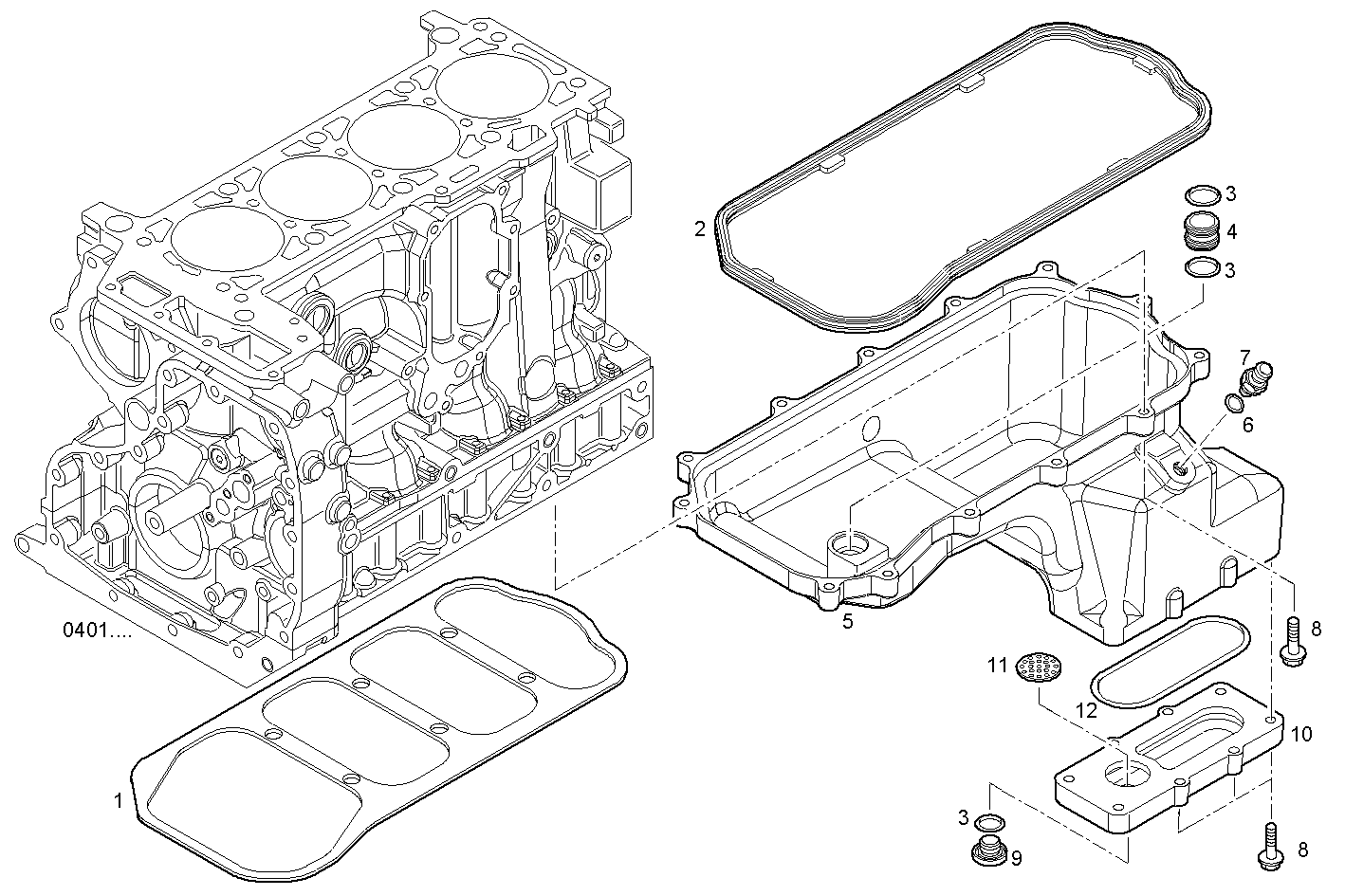

OIL SUMP
Assembly ID: 0420.006
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504037127 | OIL TRAY | 1 | ||
| 2 | 504083813 | OIL SUMP GASKET | 1 | ||
| 3 | 17282281 | O-RING | 3 | ||
| 4 | 504074863 | BEARING HOUSING | 1 | ||
| 5 | 504063488 | OIL SUMP | 1 | ||
| 6 | 11270460 | GASKET | 1 | ||
| 7 | 504033691 | THREADED UNION | 1 | ||
| 8 | 16586625 | HEXAGON BOLT | 21 | ||
| 9 | 504152596 | THREADED PLUG | 1 | ||
| 10 | 504064758 | STIFFENING PLATE | 1 | ||
| 11 | 504112881 | STRAINER | 1 | ||
| 12 | 17292881 | O-RING | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F1CE0487K*C502 | SOFIM HPI 3.0L - EURO 4 | view |
| S30ENT422.80A001 | SOFIM HPI 3.0L - EURO 4 | view |
| S30ENT422.80A002 | SOFIM HPI 3.0L - EURO 4 | view |
| S30ENT422.80A003 | SOFIM HPI 3.0L - EURO 4 | view |
