| 1 |
504350192
|

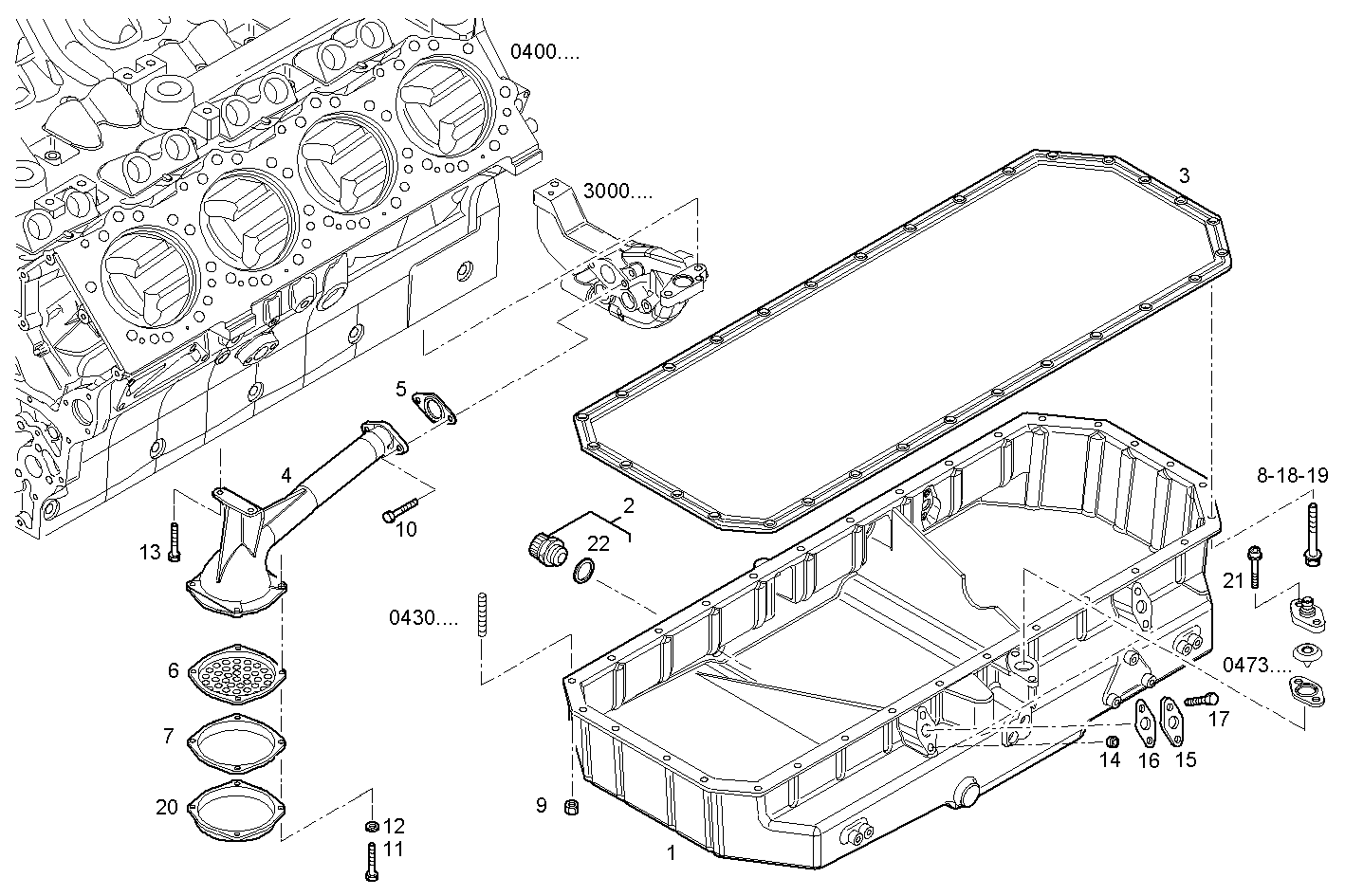

OIL SUMP
|
|
1
|
|
| 2 |
504053131
|
PLUG
|
|
1
|
|
| 3 |
504041342
|
OIL SUMP GASKET
|
|
1
|
|
| 4 |
504350007
|
SUCTION STRAINER
|
|
1
|
|
| 5 |
504043473
|
FLAT ENGINE GASKET
|
|
1
|
|
| 6 |
4673581
|
FILTER
|
|
1
|
|
| 7 |
4673582
|
FASTENING RING
|
|
1
|
|
| 8 |
504049517
|
SCREW
|
|
7
|
|
| 9 |
17044825
|
HEXAGON NUT
|
|
6
|
|
| 10 |
16673635
|
HEXAGON BOLT
|
|
2
|
|
| 11 |
16605534
|
HEXAGON BOLT
|
|
4
|
|
| 12 |
1708957C
|
WASHER
|
|
4
|
|
|
17089575 |
WASHER |
|
4 |
|
| 13 |
16673535
|
HEXAGON BOLT
|
|
2
|
|
| 14 |
17847870
|
THREADED INSERT
|
|
6
|
|
| 15 |
4798805
|
COVER
|
|
1
|
|
| 16 |
4864034
|
FLAT ENGINE GASKET
|
|
1
|
|
| 17 |
16586225
|
HEXAGON BOLT
|
|
2
|
|
| 18 |
16596825
|
HEXAGON BOLT
|
|
12
|
|
| 19 |
16596724
|
HEXAGON BOLT
|
|
11
|
|
| 20 |
504302980
|
PLATE
|
|
1
|
|
| 21 |
16673735
|
HEXAGON BOLT
|
|
2
|
|
| 22 |
18064760
|
GASKET
|
|
1
|
|
