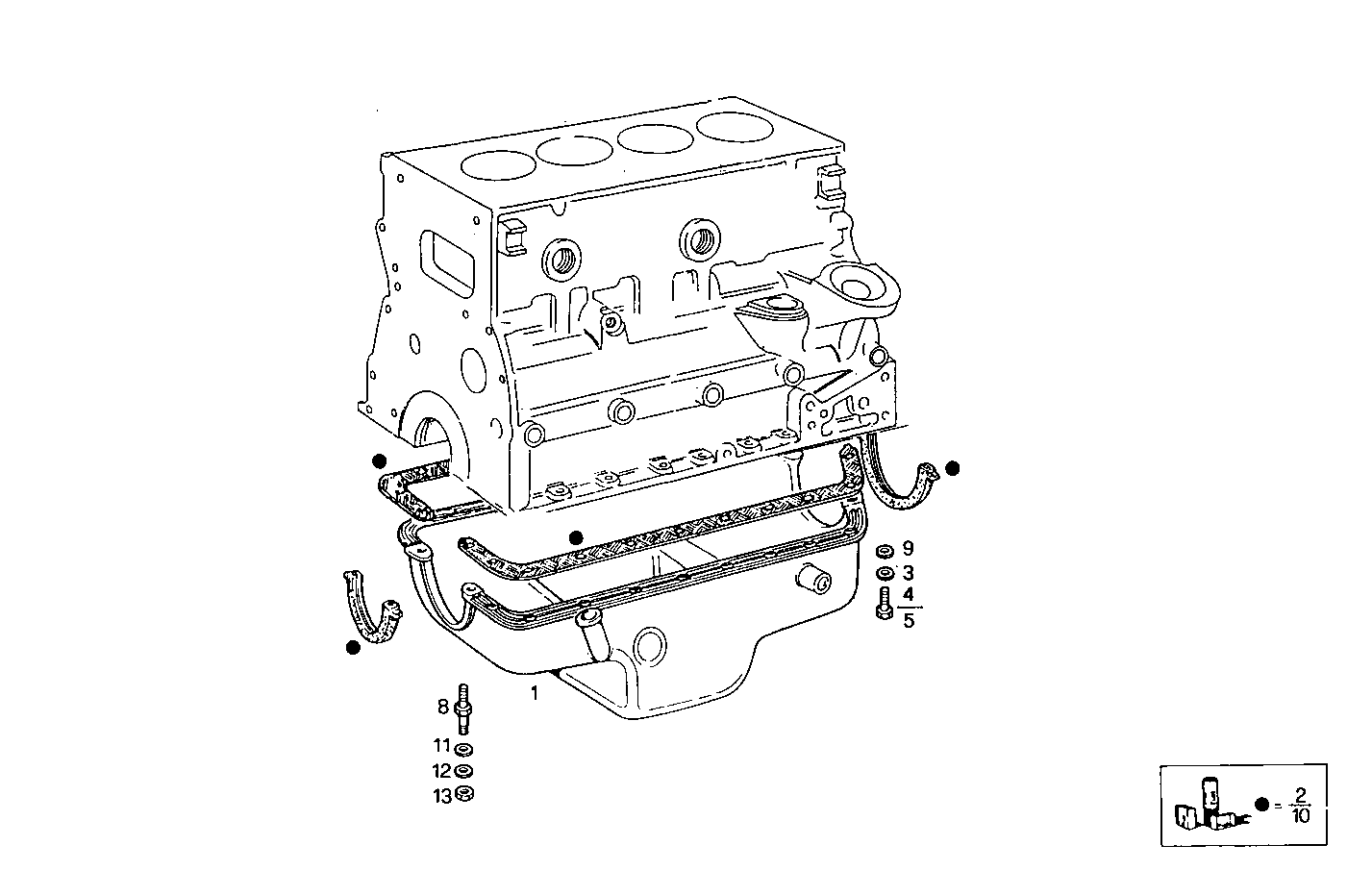

OIL SUMP
Assembly ID: 0420.022
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | OIL SUMP | 1 | |||
| 2 | 1907812 | KIT-OILSUMP GASKET | 1 | ||
| 3 | 10516879 | WASHER | 19 | ||
| 4 | 10923224 | SCREW | 23 | ||
| 5 | HEXAGON BOLT | 19 | |||
| 8 | STUD | 4 | |||
| 9 | WASHER | 19 | |||
| 10 | 1902647 | KIT-OILSUMP GASKET | 1 | ||
| 11 | 17094914 | WASHER | 4 | ||
| 12 | WASHER | 4 | |||
| 13 | HEXAGON NUT | 4 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8041M09.01 | 8041M09 | view |
| 8041M09.02 | 8041M09 | view |
