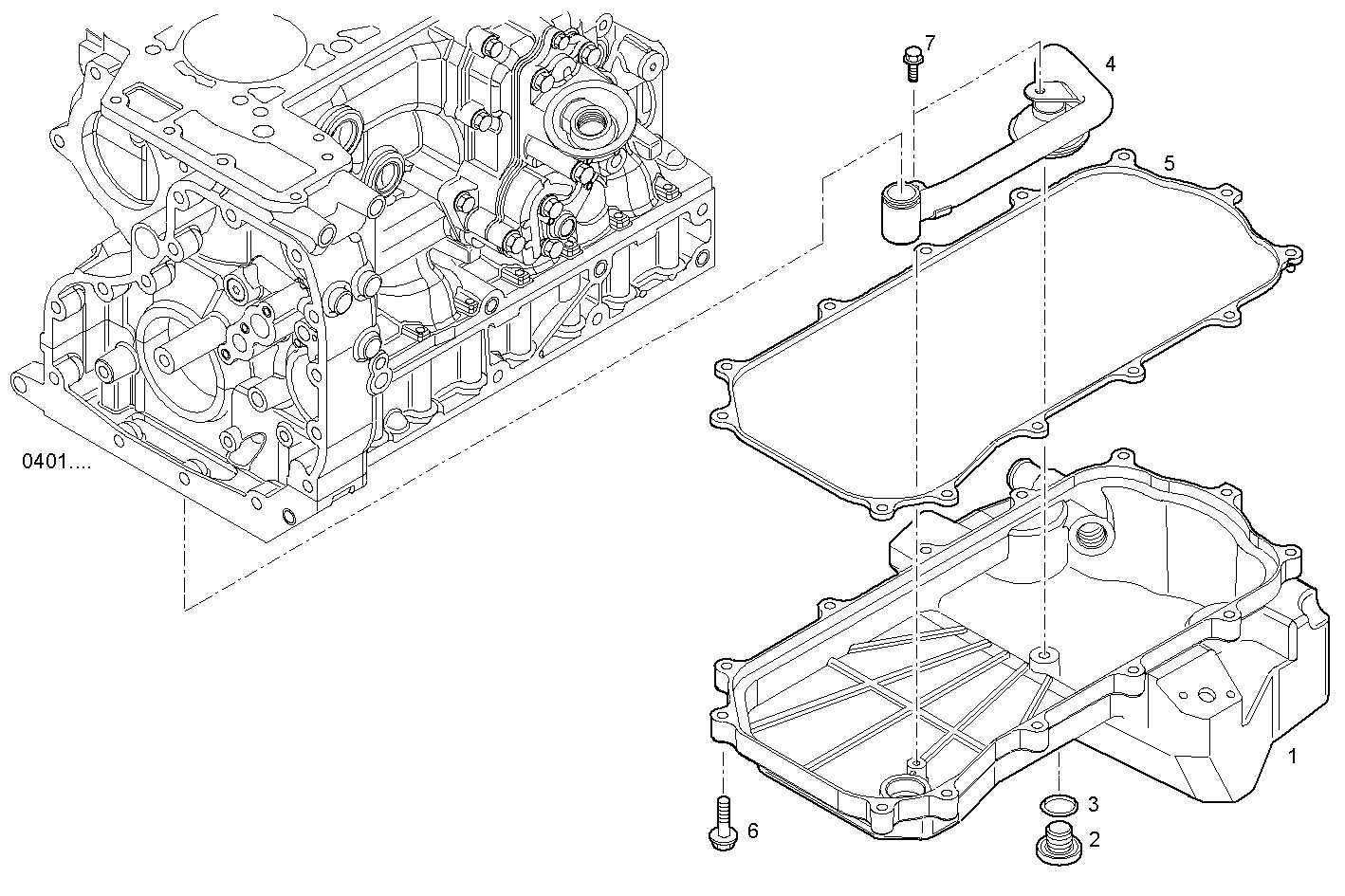

OIL SUMP
Assembly ID: 0420.044
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504371267 | OIL SUMP | 1 | ||
| 2 | 504152596 | THREADED PLUG | 1 | ||
| 3 | 17282281 | O-RING | 1 | ||
| 4 | 504334488 | SUCTION STRAINER | 1 | ||
| 5 | 504371268 | OIL SUMP GASKET | 1 | ||
| 6 | 16673735 | HEXAGON BOLT | 13 | ||
| 7 | 504117393 | HEXAGON BOLT | 2 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F1CE3481F*D003 | SOFIM HPI 3.0L - EURO 5 | view |
| F1CE3481F*D002 | SOFIM HPI 3.0L - EURO 5 | view |
| F1CE3481F*D001 | SOFIM HPI 3.0L - EURO 5 | view |
| F1CE3481F*D013 | SOFIM HPI 3.0L - EURO 5 | view |
| F1CE3481F*D012 | SOFIM HPI 3.0L - EURO 5 | view |
| F1CE3481F*D011 | SOFIM HPI 3.0L - EURO 5 | view |
