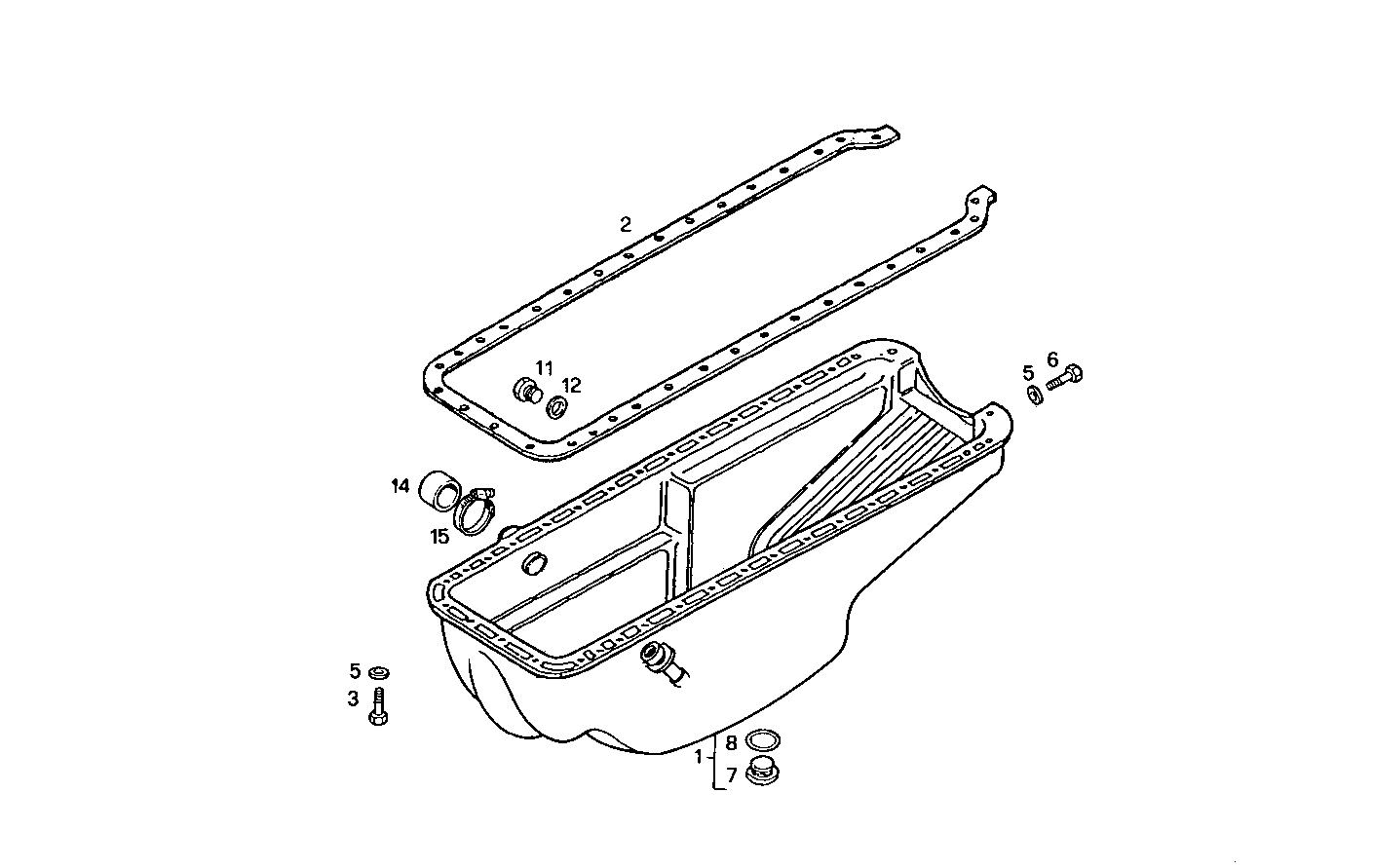

OIL SUMP
Assembly ID: 0420.078
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 4803020 | OIL SUMP | 1 | ||
| 2 | 98493262 | OIL SUMP GASKET | 1 | ||
| 3 | 10929824 | HEXAGON BOLT | 36 | ||
| 5 | 17090174 | SPRING WASHER | 41 | ||
| 6 | 10923624 | SCREW | 5 | ||
| 7 | 98491299 | THREADED PLUG | 1 | ||
| 8 | 17282181 | O-RING | 1 | ||
| 11 | 11903211 | LOCK PLUG | 1 | ||
| 12 | 4858607 | WASHER | 1 | ||
| 14 | 4695740 | RUBBER SLEEVE | 1 | ||
| 15 | 17764791 | CLIP | 2 |
Applies to engines
| Engine | Family | |
|---|---|---|
| GE8210SRi28.00A955 | GE8210SRi28 | view |
| GS8210SRi28.00 | GS8210SRi28 | view |
| 8210SRi28.00 | 8210SRi28 | view |
| 8210SRi29.00 | 8210SRi29 | view |
| 8210SRE21.00 | 8210SRE21 | view |
| 8210SRE20.00 | 8210SRE20 | view |
| 8210SRi28.00A550 | 8210SRi28 | view |
| 8210SRi28.00A580 | 8210SRi28 | view |
| GE8210SRi28.00N970 | GE8210SRi28 | view |
| GE8210SRi28.00R970 | GE8210SRi28 | view |
