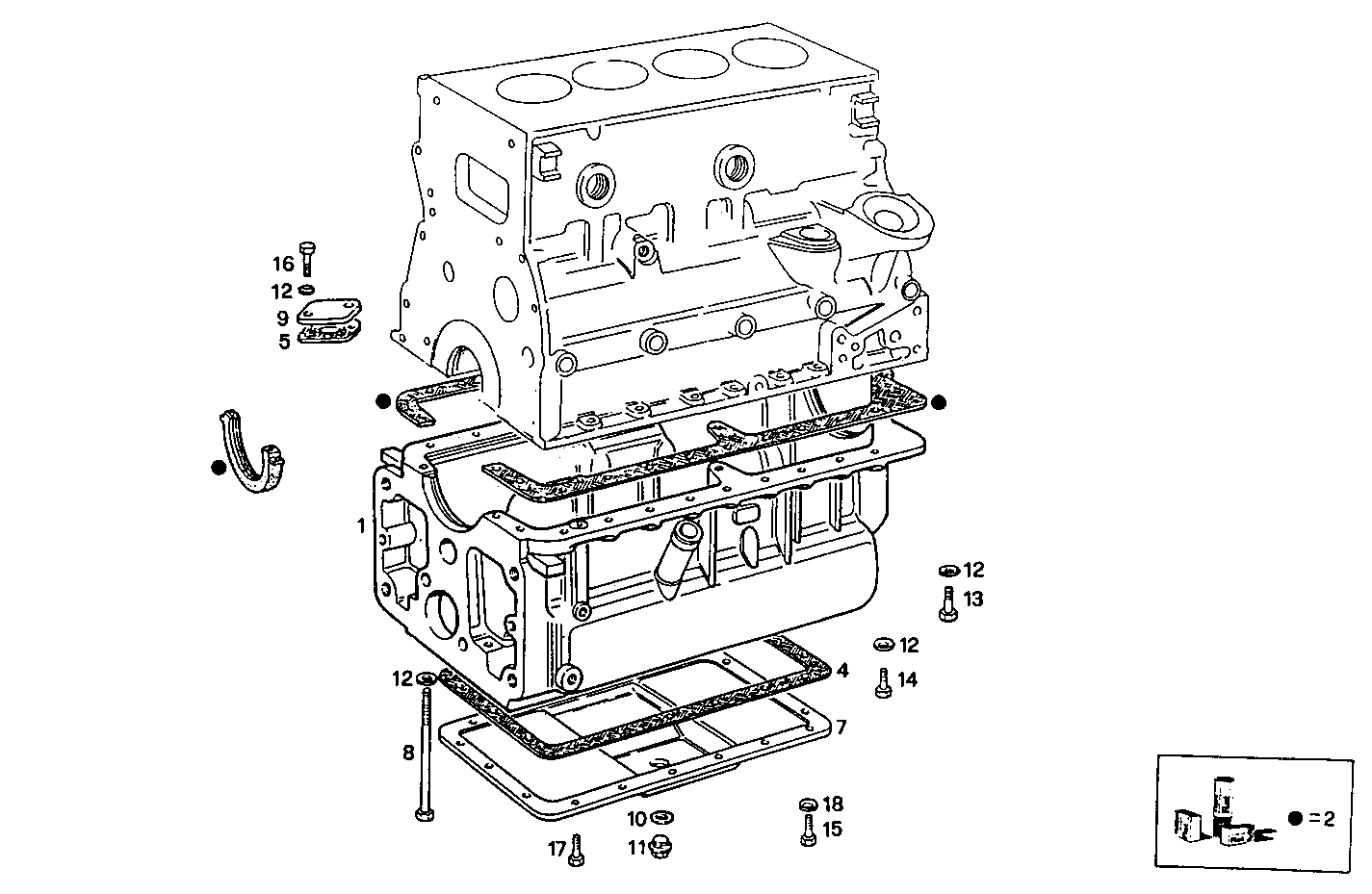

OIL SUMP
Assembly ID: 0420.124
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 4838535 | OIL SUMP | 1 | ||
| 2 | 1940012 | KIT-OILSUMP GASKET | 1 | ||
| 4 | 98427452 | FLAT ENGINE GASKET | 1 | ||
| 5 | 98401047 | GASKET | 1 | ||
| 7 | 98413424 | COVER | 1 | ||
| 8 | 4607933 | SCREW | 3 | ||
| 9 | 4793218 | COVER | 1 | ||
| 10 | 17282181 | O-RING | 1 | ||
| 11 | 4847102 | THREADED PLUG | 1 | ||
| 12 | 10516879 | WASHER | 20 | ||
| 13 | 11306924 | HEXAGON BOLT | 1 | ||
| 14 | 11307024 | SCREW | 16 | ||
| 15 | 16043324 | HEXAGON BOLT | 18 | ||
| 16 | 16605524 | HEXAGON BOLT | 2 | ||
| 17 | 4686762 | HEXAGON BOLT | 6 | ||
| 18 | 17089574 | WASHER | 20 |
Applies to engines
| Engine | Family | |
|---|---|---|
| GE8045E00.50A011 | GE8045E00 | view |
| 8045E00.50 | 8045E00 | view |
