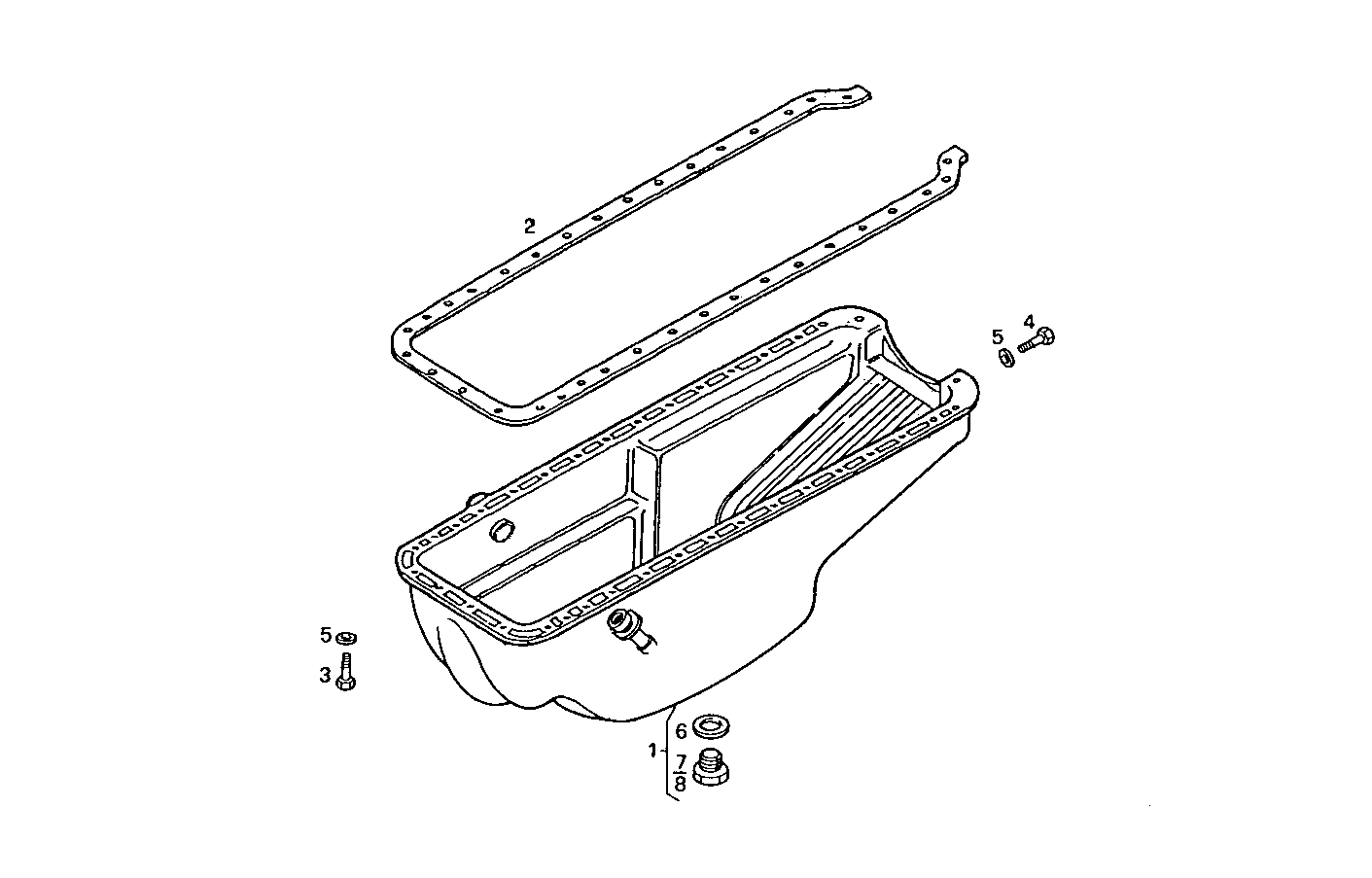

OIL SUMP
Assembly ID: 0420.127
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 4803020 | OIL SUMP | 1 | ||
| 2 | 4791426 | OIL SUMP GASKET | 1 | ||
| 3 | 10929824 | HEXAGON BOLT | 36 | ||
| 4 | 10923624 | SCREW | 5 | ||
| 5 | 17090174 | SPRING WASHER | 41 | ||
| 6 | 17282181 | O-RING | 1 | ||
| 7 | 4847102 | THREADED PLUG | 1 | ||
| 8 | 98491299 | THREADED PLUG | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8210SRC21.20 | 8210SRC21 | view |
| 8210SRC20.00 | 8210SRC20 | view |
| 8210SRC21.00 | 8210SRC21 | view |
| 8210SRC21.21 | 8210SRC21 | view |
