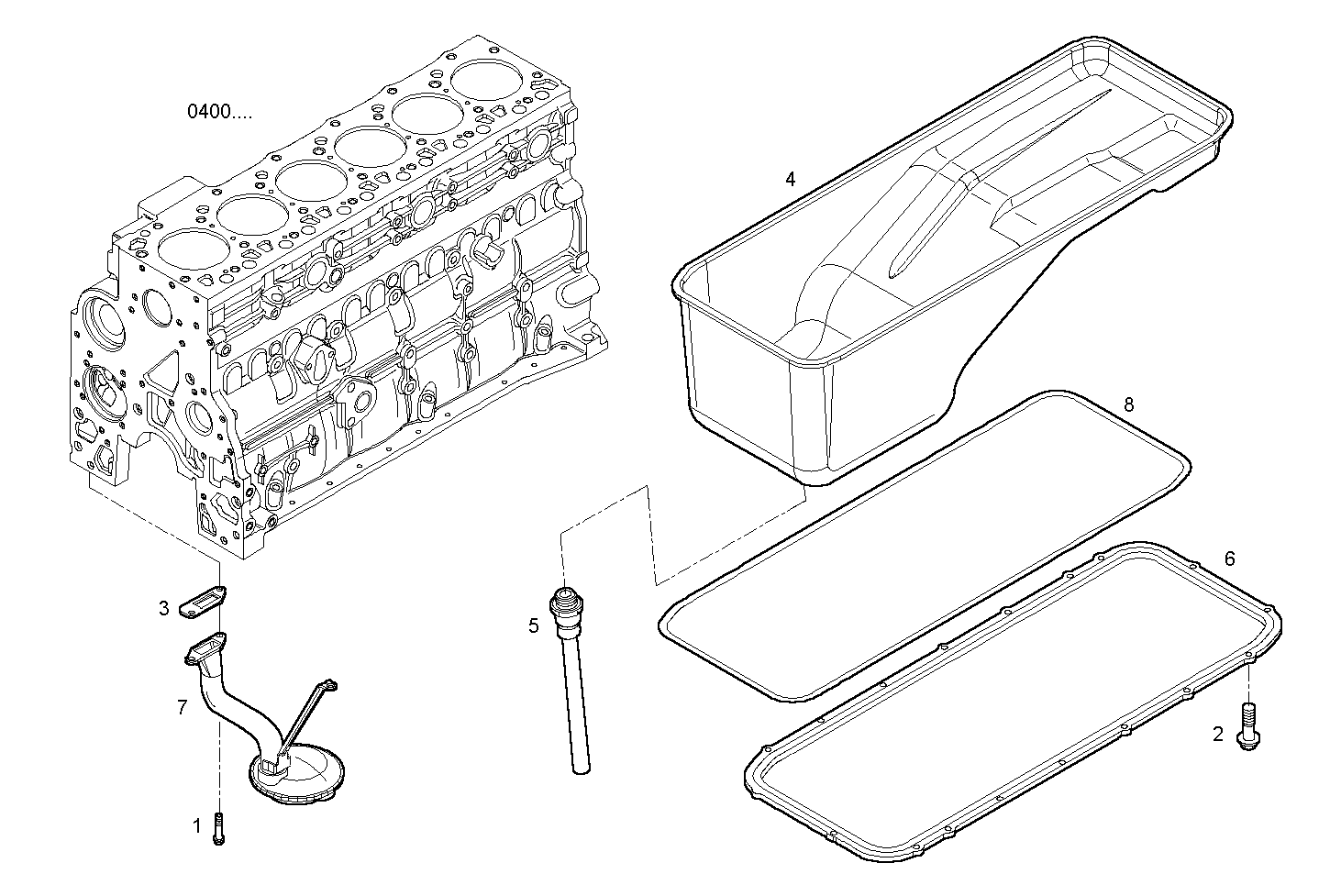

OIL SUMP
Assembly ID: 0420.158
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 18138424 | HEXAGON BOLT | 2 | ||
| 2 | 4899091 | HEXAGON BOLT | 18 | ||
| 3 | 4898301 | FLAT ENGINE GASKET | 1 | ||
| 4 | 500388254 | OIL SUMP | 1 | ||
| 5 | 504040088 | VALVE | 1 | ||
| 6 | 4897858 | SPACING BAR | 1 | ||
| 7 | 500388257 | SUCTION STRAINER | 1 | ||
| 8 | 4897861 | OIL SUMP GASKET | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F4AE0684F*D101 | NEF 6 electron. - TIER 2 | view |
| F4AE0684J*D | NEF 6 electron. - TIER 2 | view |
| F4AE0682C*C151 | NEF 6 electron. - EURO 3 | view |
| F4BE0684D*D401 | NEF 6 mechanic. - TIER 2 | view |
