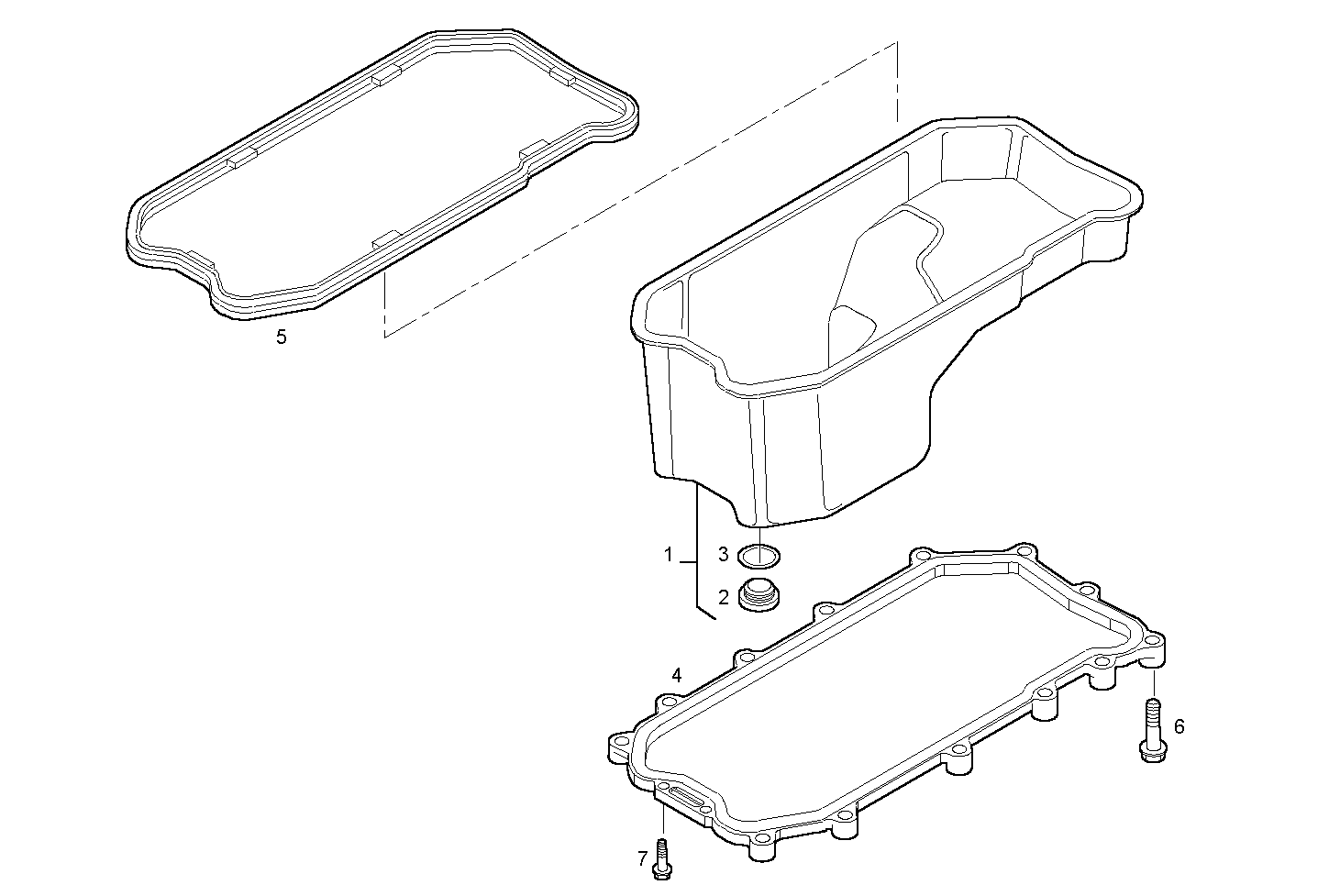

OIL SUMP
Assembly ID: 0420.168
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504063576 | OIL SUMP | 1 | ||
| 2 | 4847102 | THREADED PLUG | 1 | ||
| 3 | 17282181 | O-RING | 1 | ||
| 4 | 504018341 | SUPPORT | 1 | ||
| 5 | 504018342 | OIL SUMP GASKET | 1 | ||
| 6 | 16673934 | HEXAGON BOLT | 13 | ||
| 7 | 18137724 | SCREW | 2 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F1AE0481B*A301 | SOFIM HPI 2.3L - EURO 3 | view |
| F1AE0481B*B301 | SOFIM HPI 2.3L - EURO 3 | view |
