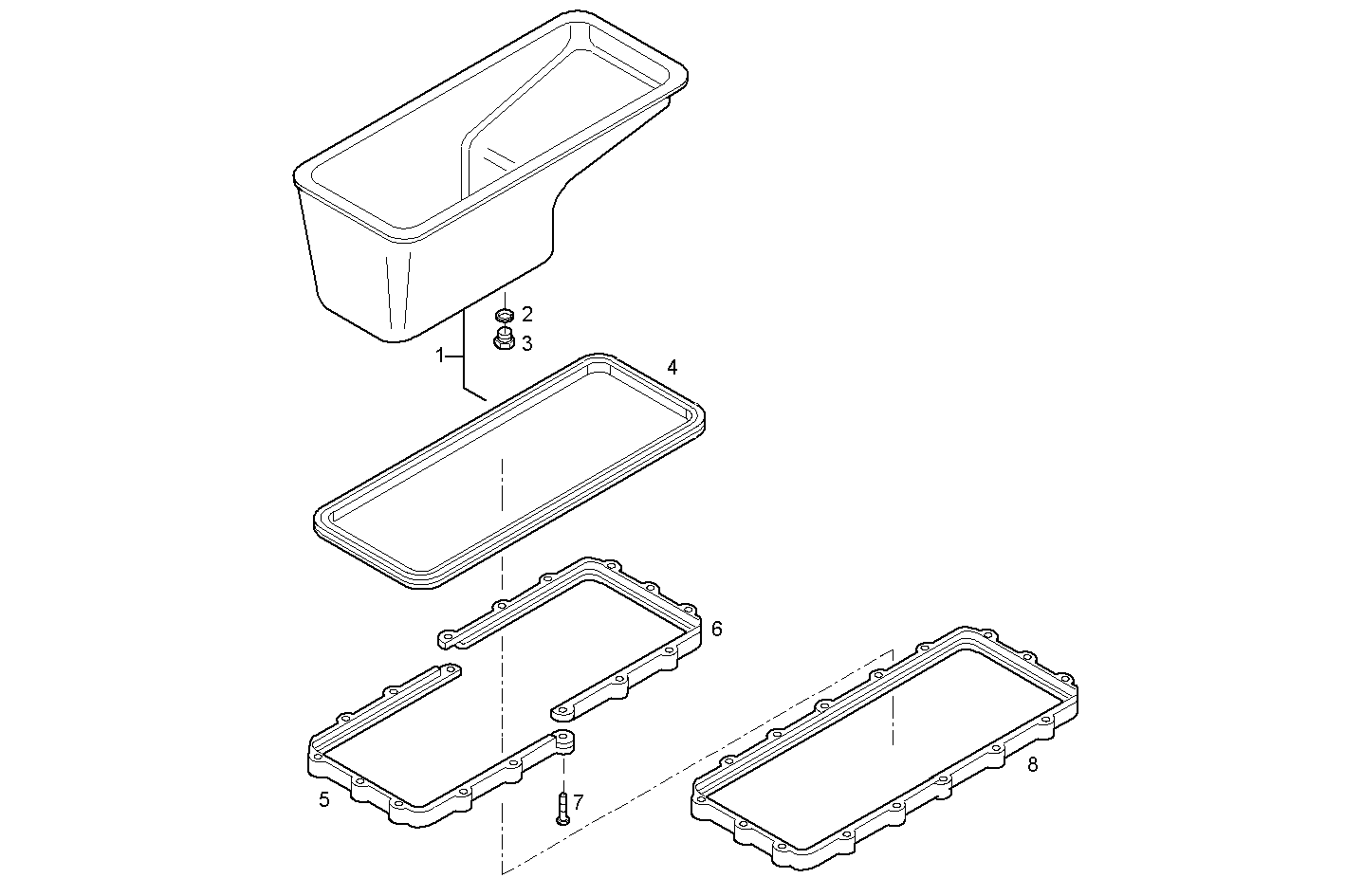

OIL SUMP

Assembly ID: 0420.194

OIL SUMP

Parts

# Part number Description Note Quantity
1 500336615 OIL SUMP 1
2 99489022 SEAL GASKET 1
3 16992611 THREADED PLUG 1
4 504028001 OIL SUMP GASKET 1
5 99468498 SPACING BAR 1
6 99468497 SPACING BAR 1
7 16587525 HEXAGON BOLT 16
8 504160436 SPACING BAR 1

Applies to engines

Engine Family
F3AE0687A*B301 CURSOR 10 - TIER 2 view
C10ENTE20.00 CURSOR 10 - TIER 2 view
C10ENTD20.00 CURSOR 10 - TIER 2 view
F3AE0684D*B102 CURSOR 10 - TIER 2 view
F3AE0684E*B006 CURSOR 10 - TIER 2 view
C10ENTD20.00A800 CURSOR 10 - TIER 2 view
C10ENTC23.00A004 CURSOR 10 - TIER 2 view
F3AE9687A*E001 CURSOR 10 - TIER 3 view
C10ENTX20.00 CURSOR 10 - TIER 3 view
C10ENTX20.00A800 CURSOR 10 - TIER 3 view
C10ENTX20.00A801 CURSOR 10 - TIER 3 view
F3AE9685A*E001 CURSOR 10 - 2002/88/CE TIER 3 view
C10ENTX60.00 CURSOR 10 - 2002/88/CE TIER 3 view
CURSOR10TE1D.X001 CURSOR 10 - 2002/88/CE TIER 3 view
F3AE9687B*E001 CURSOR 10 - TIER 3 view
F3AE9687C*E001 CURSOR 10 - TIER 3 view
F3AE0684N*E907 CURSOR 10 - TIER 3 view
CURSOR10TE1D.R991 CURSOR 10 - 2002/88/CE TIER 3 view
GECURSOR300ED.R990 GECURSOR 10 - 2002/88/CE-TIER3 view
C10ENTX20.00A802 CURSOR 10 - TIER 3 view
PUC10ENTD20.00A100 CURSOR 10 - TIER 2 view
CURSOR10TE1D.S550 CURSOR 10 - 2002/88/CE TIER 3 view
F3AE0687A*B302 CURSOR 10 - TIER 2 view
C10ENTD20.20 CURSOR 10 - TIER 2 view
CURSOR10TE1D.A559 CURSOR 10 - 2002/88/CE TIER 3 view
GECURSOR300ED.A551 GECURSOR 10 - 2002/88/CE-TIER3 view
GECURSOR300ED.A71M GECURSOR 10 - 2002/88/CE-TIER3 view
C10ENTX20.00A008 CURSOR 10 - TIER 3 view
CURSOR10TE1D.A001 CURSOR 10 - 2002/88/CE TIER 3 view
CURSOR10TE1D.A008 CURSOR 10 - 2002/88/CE TIER 3 view
CURSOR10TE1.X001 CURSOR 10 - 2002/88/CE TIER 3 view
F3AE0681D*B315 CURSOR 10 - EURO 3 view
C10ENTC23.00A002 CURSOR 10 - EURO 3 view
