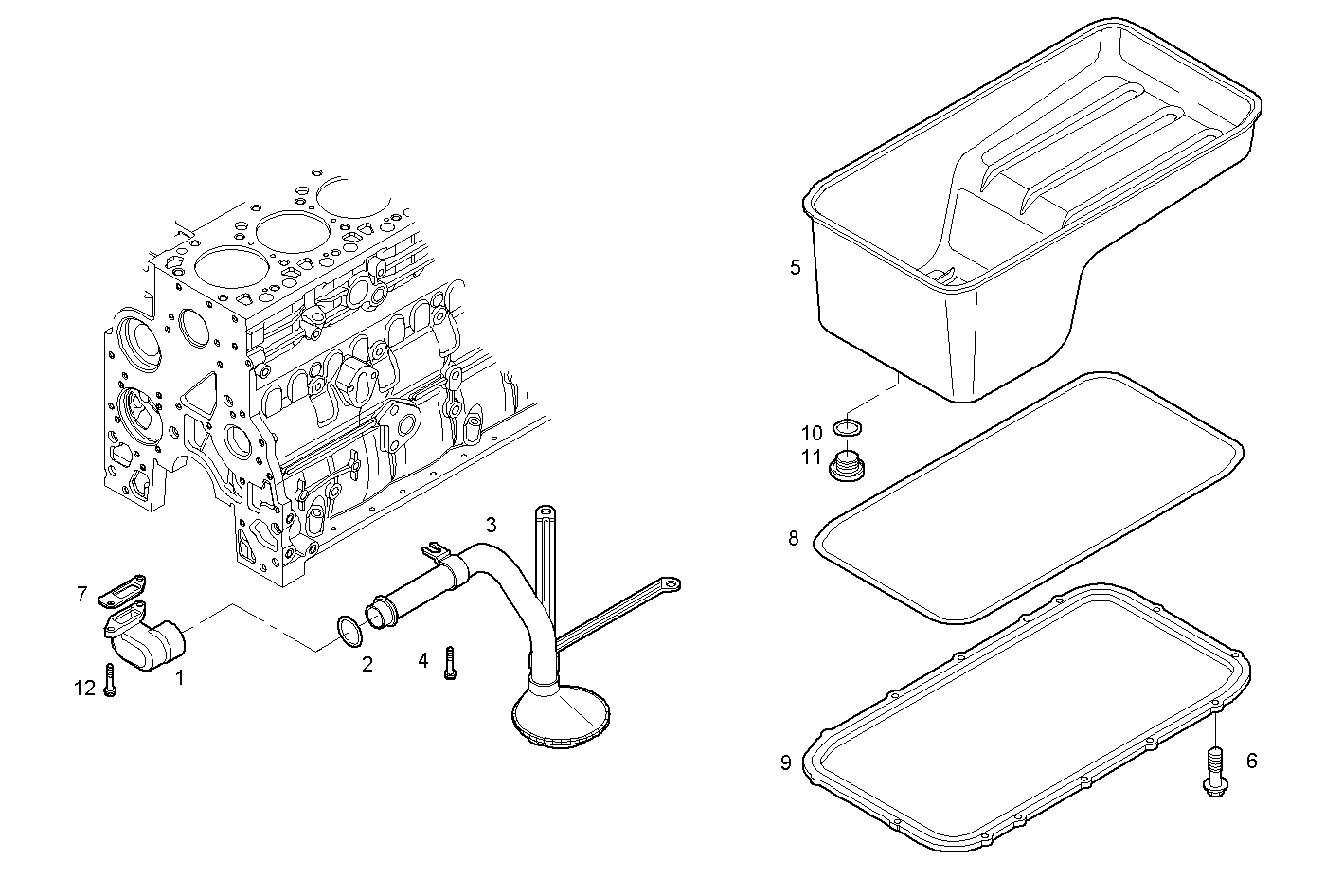

OIL SUMP
Assembly ID: 0420.204
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504064052 | INTAKE ELBOW | 1 | ||
| 2 | 17282481 | O-RING | 1 | ||
| 3 | 504084185 | SUCTION STRAINER | 1 | ||
| 4 | 4895291 | HEXAGON BOLT | 3 | ||
| 5 | 500388253 | OIL SUMP | 1 | ||
| 6 | 4899091 | HEXAGON BOLT | 14 | ||
| 7 | 4898301 | FLAT ENGINE GASKET | 1 | ||
| 8 | 4897877 | OIL SUMP GASKET | 1 | ||
| 9 | 4897876 | SPACING BAR | 1 | ||
| 10 | 17282280 | O-RING | 1 | ||
| 11 | 4894139 | THREADED PLUG | 1 | ||
| 12 | 16673635 | HEXAGON BOLT | 2 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F4GE0484C*D602 | NEF 4 mechanic. - TIER 2 | view |
| N45MNTE20.00A001 | NEF 4 mechanic. - TIER 2 | view |
| F4AE0481D*C153 | NEF 4 electron. - EURO 3 | view |
| N40ENTC24.00A011 | NEF 4 electron. - EURO 3 | view |
| F4GE0404A*D653 | NEF 4 mechanic. - TIER 2 | view |
| N45MNAE00.00A002 | NEF 4 mechanic. - TIER 2 | view |
| F4GE9484J*J602 | NEF 4 mechanic. - TIER 3 | view |
| F4GE9454J*J603 | NEF 4 mechanic. - TIER 3 | view |
| N45MNSX02.00A001 | NEF 4 mechanic. - TIER 3 | view |
| N45MNTX26.00A001 | NEF 4 mechanic. - TIER 3 | view |
