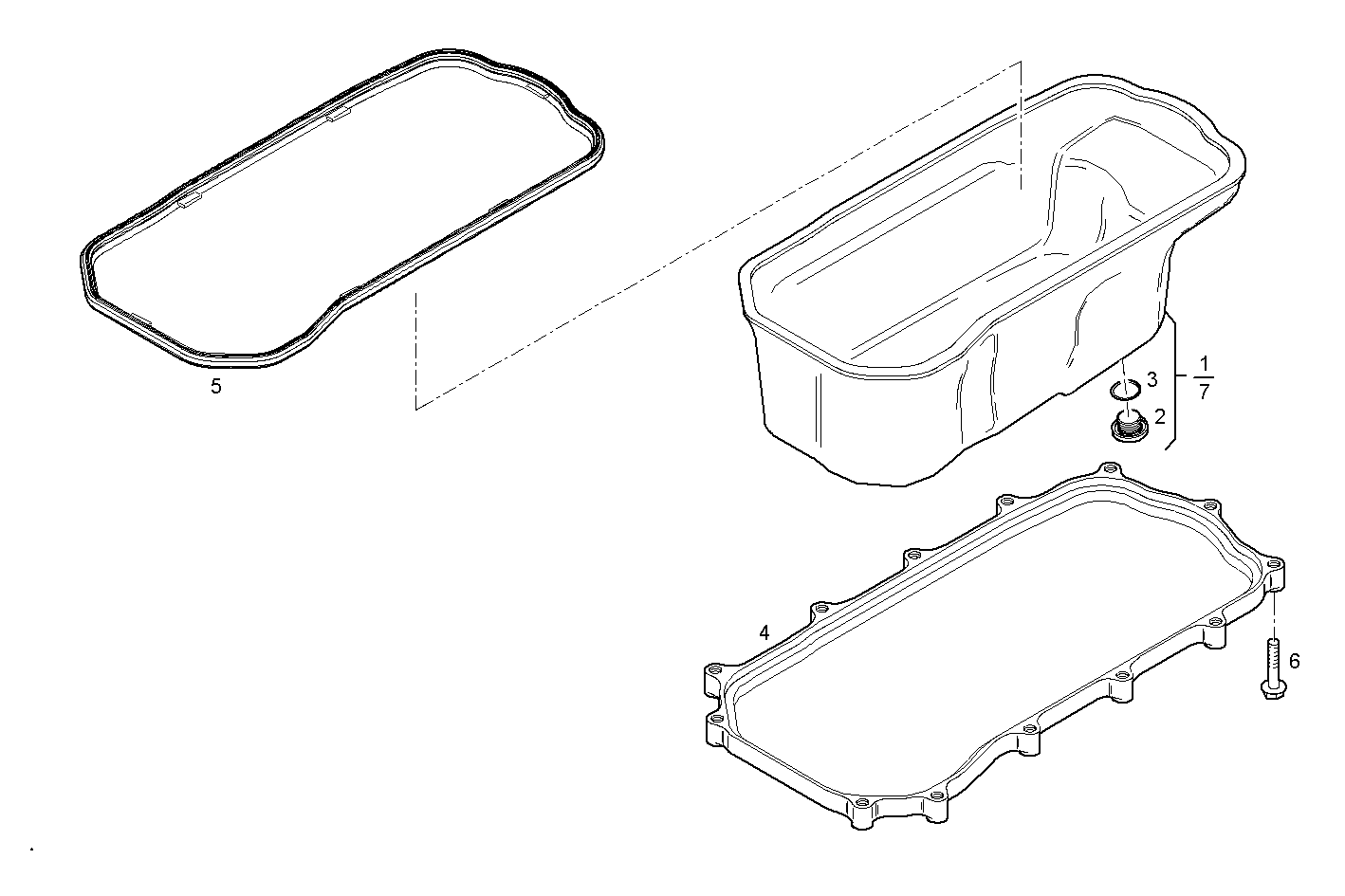

OIL SUMP
Assembly ID: 0420.231
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504083971 | OIL SUMP | 1 | ||
| 2 | 4894139 | THREADED PLUG | 1 | ||
| 3 | 17282280 | O-RING | 1 | ||
| 4 | 504083379 | SPACING BAR | 1 | ||
| 5 | 504083813 | OIL SUMP GASKET | 1 | ||
| 6 | 16586625 | HEXAGON BOLT | 13 | ||
| 7 | 504104359 | OIL SUMP | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F1CE0481B*A001 | SOFIM HPI 3.0L - EURO 3 | view |
| F1CE0481F*A001 | SOFIM HPI 3.0L - EURO 4 | view |
| S30ENT422.10P002 | SOFIM HPI 3.0L - EURO 4 | view |
| F1CE0441A*A003 | SOFIM HPI 3.0L CNG | view |
| F1CE0481F*C503 | SOFIM HPI 3.0L - EURO 4 | view |
| S30ENTG20.00A002 | SOFIM HPI 3.0L CNG | view |
| F1CE0481F*C001 | SOFIM HPI 3.0L - EURO 4 | view |
| S30ENT422.30A001 | SOFIM HPI 3.0L - EURO 4 | view |
| F1CE0481H*C003 | SOFIM HPI 3.0L - EURO 4 | view |
| S30ENT425.10A001 | SOFIM HPI 3.0L - EURO 4 | view |
| F1CE0481F*C504 | SOFIM HPI 3.0L - EURO 4 | view |
| S30ENT422.70A002 | SOFIM HPI 3.0L - EURO 4 | view |
| F1CE0481F*A002 | SOFIM HPI 3.0L - EURO 4 | view |
| S30ENT422.11A001 | SOFIM HPI 3.0L - EURO 4 | view |
| F1CE0481L*A003 | SOFIM HPI 3.0L - EURO 4 | view |
| F1CE0481F*A003 | SOFIM HPI 3.0L - EURO 4 | view |
