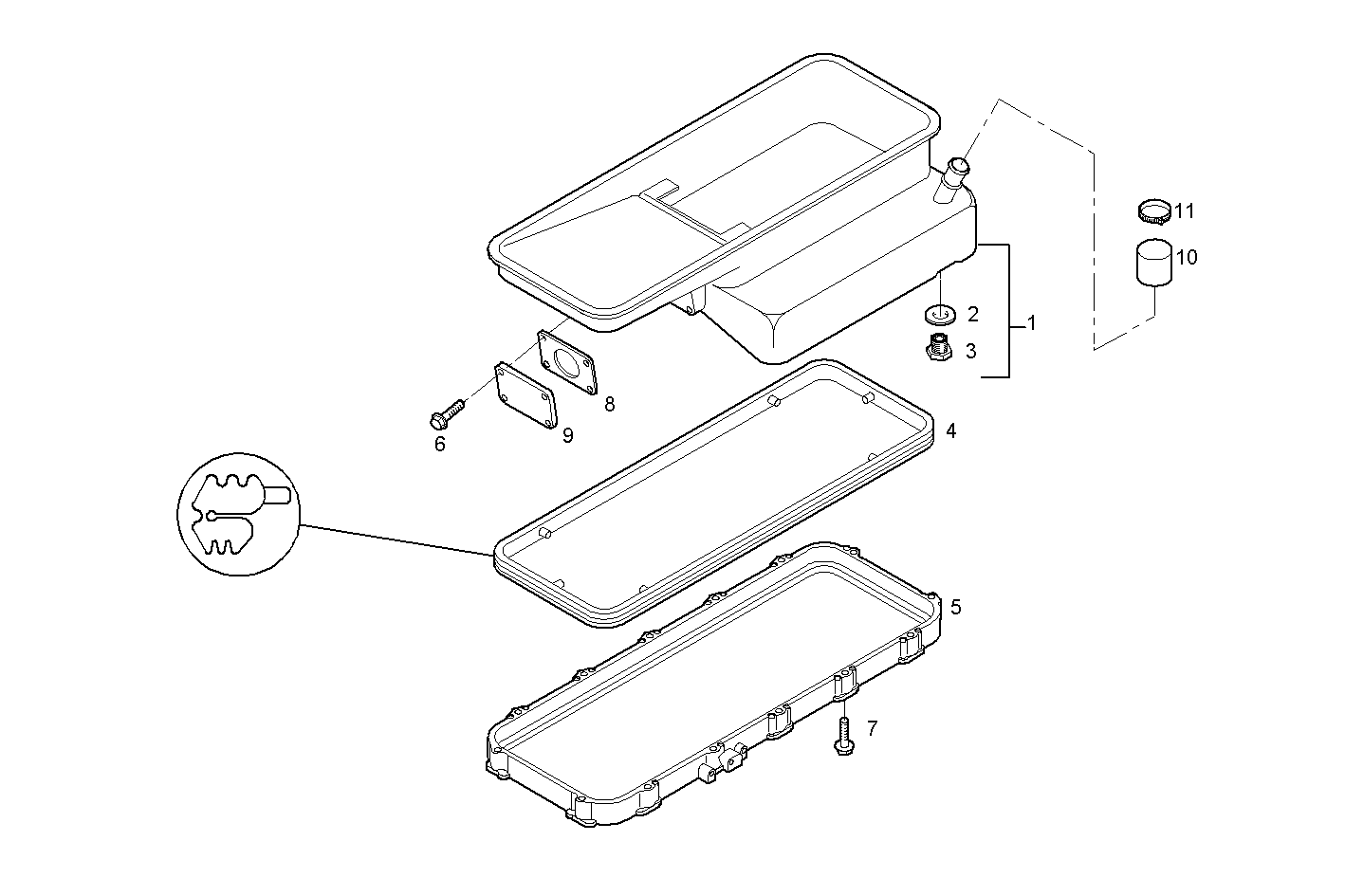

OIL SUMP
Assembly ID: 0420.236
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 500327426 | OIL SUMP | 1 | ||
| 2 | 16508460 | WASHER | 1 | ||
| 3 | 16992611 | THREADED PLUG | 1 | ||
| 4 | 99443902 | OIL SUMP GASKET | 1 | ||
| 5 | 99437092 | SPACING BAR | 1 | ||
| 6 | 18137825 | HEXAGON BOLT | 4 | ||
| 7 | 16587525 | HEXAGON BOLT | 14 | ||
| 8 | 99474411 | FLAT ENGINE GASKET | 1 | ||
| 9 | 99474410 | COVER | 1 | ||
| 10 | 4836520 | PLUG | 1 | ||
| 11 | 17764694 | CLIP | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F2BE0642A*A002 | CURSOR 8 CNG | view |
| F2BE0642A*A003 | CURSOR 8 CNG | view |
| F2BE0642F*B007 | CURSOR 8 CNG | view |
| F2BE0642A*A009 | CURSOR 8 CNG | view |
| C78ENTG20.00A001 | CURSOR 8 CNG | view |
