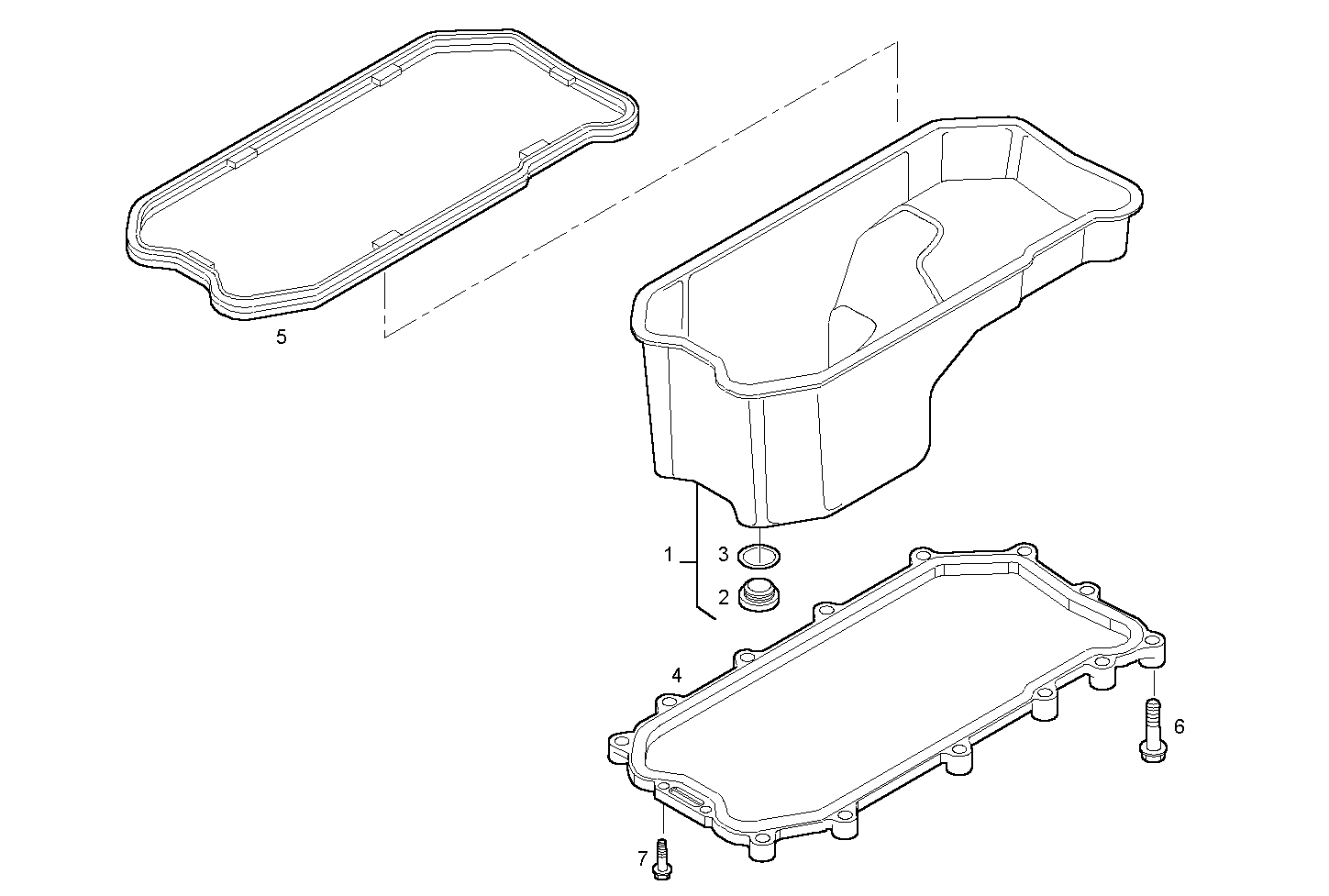

OIL SUMP
Assembly ID: 0420.248
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504237983 | OIL SUMP | 1 | ||
| 2 | 16993411 | THREADED PLUG | 1 | ||
| 3 | 16508460 | WASHER | 1 | ||
| 4 | 504154880 | FRAME | 1 | ||
| 5 | 504018307 | OIL SUMP GASKET | 1 | ||
| 6 | 16586625 | HEXAGON BOLT | 13 | ||
| 7 | 16586124 | HEXAGON BOLT | 2 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F1AE0481B*C001 | SOFIM HPI 2.3L - EURO 3 | view |
